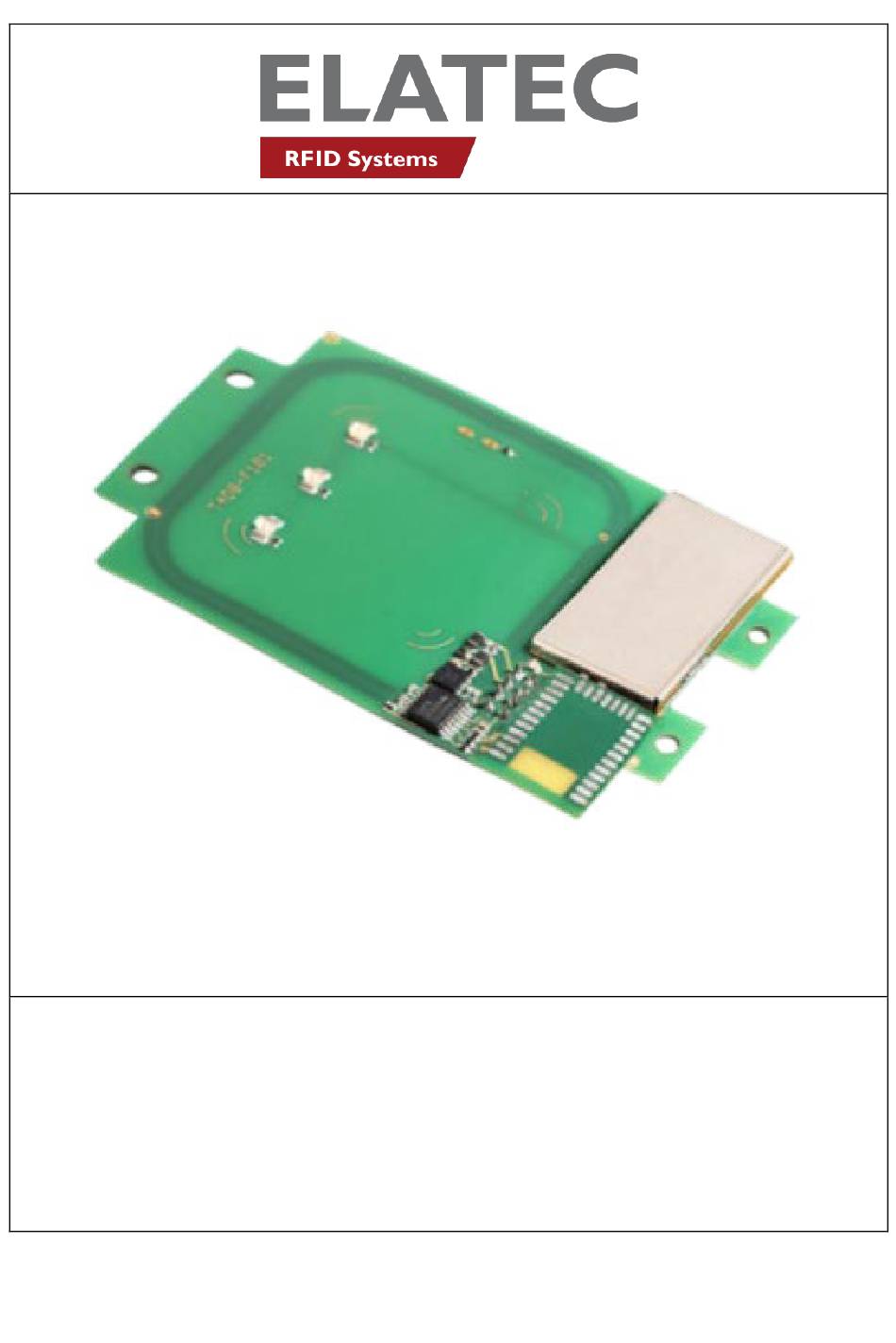

- Page 1 Transponder Reader TWN4 MultiTech 2 M HF Quick Start Guide...
-
Page 2: Getting Started

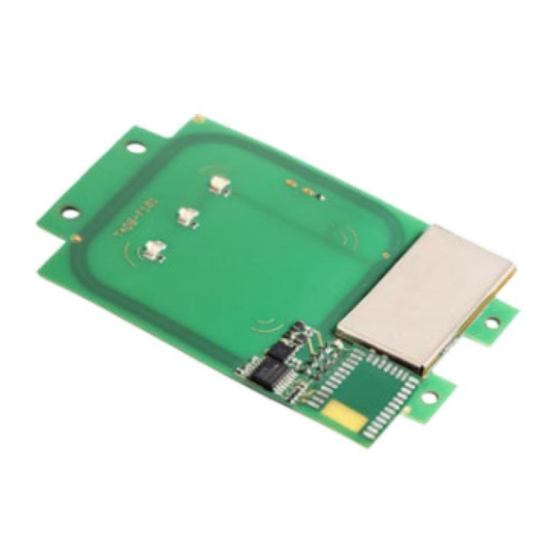

Elatec GmbH 1. Introduction The transponder reader TWN4 MultiTech 2 M HF is a device for reading and writing RFID transponders with a frequency of 13.56 MHz. There are different versions of TWN4 devices available, which cover a large range of transponder types. -
Page 3: Normal Operation
Elatec GmbH 2.4 Initialization After powering up and enumeration (in USB mode), the device is turning on the built-in transponder reader logic. The green LED is turned on permanently. Some transponder reader modules need some kind of initialization, which is performed in this step. After successful initialization, the device sounds a short sequence, which consists of a lower tone followed by a higher tone. - Page 4 Elatec GmbH 2.6 Detection of a Transponder If a transponder is detected by the reader, following actions are performed • Send the ID to the host. By default, the USB device sends by emulating keystrokes of a keyboard. A RS232 device sends the ASCII code of an ID.
- Page 5 Elatec GmbH 3. List of Antennas Page 5 of 13...
-
Page 6: Compliance Statements
Elatec GmbH 4. Compliance statements (RF module) Compliance statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 7 Elatec GmbH Host devices FCC notes for a host subject to verification or SDoC: For a host device assembled with the certified module and subject to 47 CFR Part 15 verification of class A digital devices, the following statements have to be included in the user manual and the host device has to be labelled as noted below.
- Page 8 Elatec GmbH Example for SDoC: The compliance information statement shall be included in the user's manual or as a separate sheet. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet,...
- Page 9 Elatec GmbH NOTE: The Commission does not have a required SDoC format. This is an example only and is provided to illustrate the type of information that may be supplied with the product at the time of marketing or importation for meeting the FCC SDoC requirement.
- Page 10 Elatec GmbH For class A devices: FCC §15.105 (b): NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 11 If additional filing is required please contact the person at ELATEC GmbH responsible for certification of the RF module. NCC Warning Statement 低功率電波輻射性電機管理辦法...
- Page 12 Elatec GmbH 應避免影響附近雷達系統之操作。 Page 12 of 13...
-
Page 13: Service Address
Elatec GmbH 5. Service Address In case of any technical questions, please contact: Elatec GmbH Zeppelinstr. 1 82178 Puchheim Germany Phone: +49 (0) 89 5529961 0 Fax: +49 (0) 89 5529961 129 Email: info-rfid@elatec.com Page 13 of 13...
