4 INSTALLATION
The RFID readers of the TWN4 USB Front Reader family are Plug & Play devices that can simply be
connected to a host device (e.g. printer) thanks to the USB connector on the rear side of the readers.
This patented USB connector can be turned to 90°, which enables a quick and easy installation into any
host system equipped with a USB port.
Optionally, the readers can be fixed onto a host device (e.g. printer) using the mounting angle kit and/or
adhesive pads listed in Chapter "Scope of delivery". The illustrations below describe both mounting
configurations:

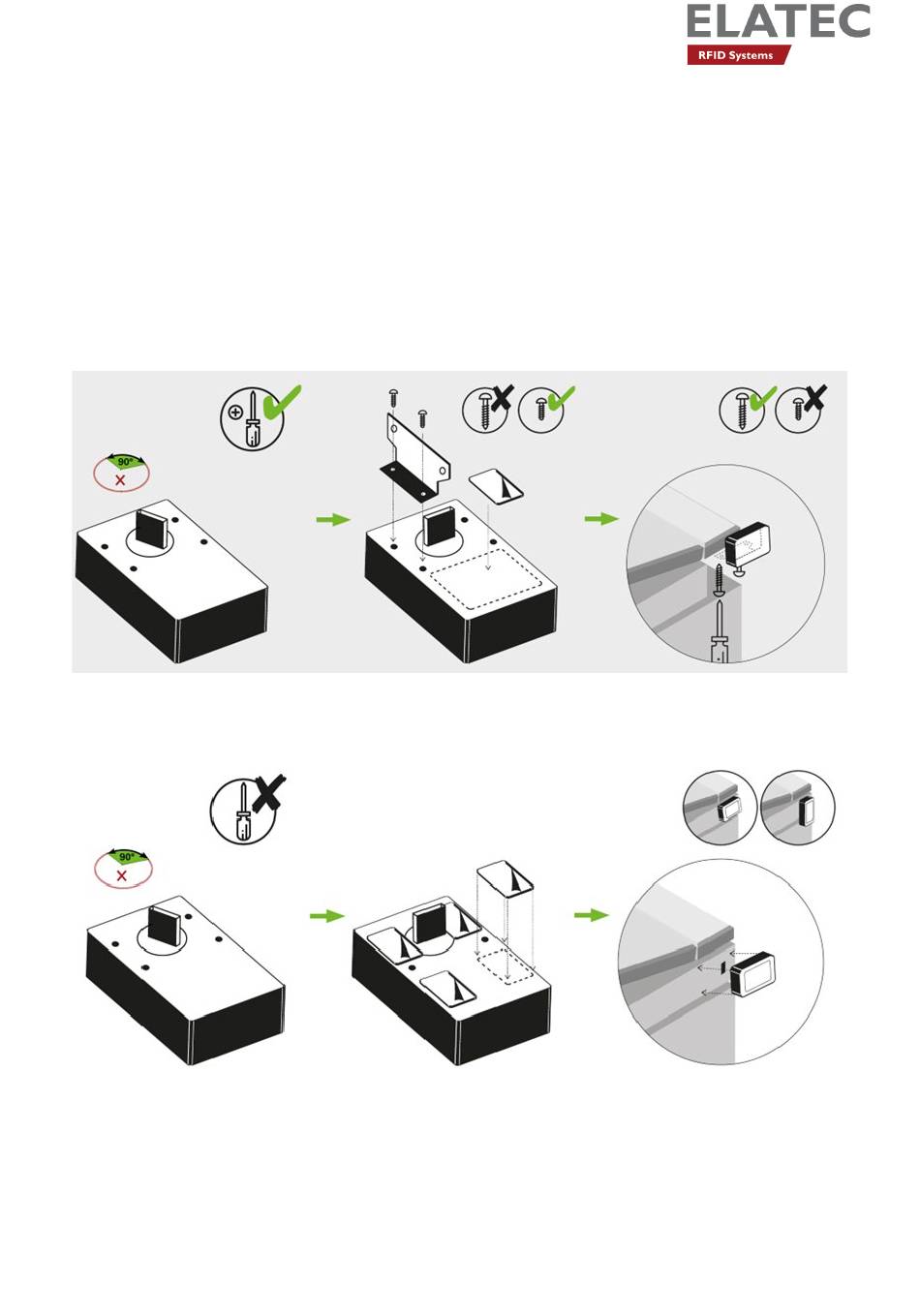

Fig. 3 - installation with mounting angle kit and one adhesive pad
Fig. 4 - installation with four adhesive pads
© 2024 – ELATEC GmbH – TWN4 USB Front Reader family – user manual – DocRev01 – EN – 05/2024
