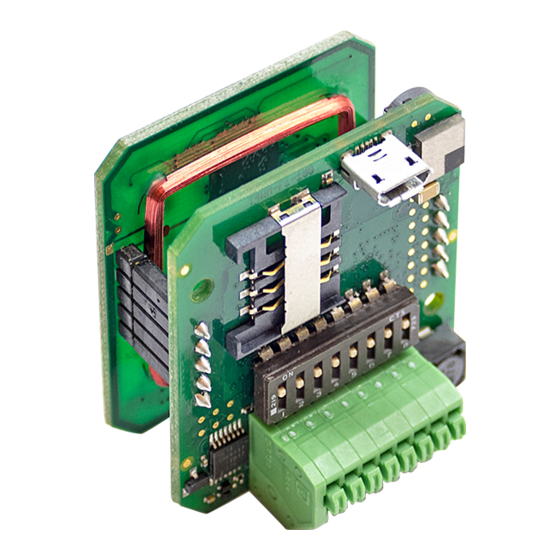

TWN4 Palon Compact
family
TWN4 Palon Compact M
TWN4 Palon Compact M Light
TWN4 Palon Compact LEGIC M
TWN4 Palon Compact LEGIC M Light
TWN4 Palon Compact Panel
TWN4 Palon Compact Panel Light
TWN4 Palon Compact LEGIC Panel
TWN4 Palon Compact LEGIC Panel Light
TWN4 Palon Compact Wall
TWN4 Palon Compact Wall Light
TWN4 Palon Compact LEGIC Wall
TWN4 Palon Compact LEGIC Wall Light
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWN4 Palon Compact Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elatec TWN4 Palon Compact Series

Summary of Contents for Elatec TWN4 Palon Compact Series

  • Page 1 TWN4 Palon Compact family TWN4 Palon Compact M TWN4 Palon Compact M Light TWN4 Palon Compact LEGIC M TWN4 Palon Compact LEGIC M Light TWN4 Palon Compact Panel TWN4 Palon Compact Panel Light TWN4 Palon Compact LEGIC Panel TWN4 Palon Compact LEGIC Panel Light TWN4 Palon Compact Wall TWN4 Palon Compact Wall Light TWN4 Palon Compact LEGIC Wall...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ................................3 ABOUT THIS MANUAL ............................3 ELATEC SUPPORT ..............................3 SAFETY INFORMATION ............................4 PRODUCT DESCRIPTION ............................6 INTENDED USE ............................... 6 PRODUCT FAMILY ..............................6 FIRMWARE ................................14 LABELING ................................14 SCOPE OF DELIVERY ............................15 INSTALLATION ................................
  • Page 3 TWN4 PALON COMPACT WALL LIGHT ....................39 6.11 TWN4 PALON COMPACT LEGIC WALL ....................42 6.12 TWN4 PALON COMPACT LEGIC WALL LIGHT .................. 44 6.13 APPENDIX ....................................48 A – RELEVANT DOCUMENTATION ........................... 48 B – TERMS AND ABBREVIATIONS ..........................48 C –...

  • Page 4: Introduction

    In case of questions regarding your product order, contact your Sales representative or ELATEC customer service at info-rfid@elatec.com © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 3 of 50...

  • Page 5: Safety Information

    ELATEC excludes any liability for damages or injuries resulting from the use of spare parts or accessories other than the ones sold or recommended by ELATEC. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 4 of 50...
  • Page 6 Any failure to comply with the safety information given in this document is considered improper use. ELATEC excludes any liability in case of improper use or faulty product installation. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 5 of 50...

  • Page 7: Product Description

    BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 25 g / 0.88 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 6 of 50...
  • Page 8 BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 25 g / 0.88 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 7 of 50...
  • Page 9 BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 77 g / 2.72 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 8 of 50...
  • Page 10 BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 77 g / 2.72 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 9 of 50...
  • Page 11 LF and HF: up to 100 mm / 4 inch, depending on R/W distance environment and transponder MTBF 500,000 hours Weight Approx. 77 g / 2.72 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 10 of 50...
  • Page 12 BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 61.20 g / 2.16 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 11 of 50...
  • Page 13 LF and HF: up to 100 mm / 4 inch, depending on R/W distance environment and transponder MTBF 500,000 hours Weight Approx. 61.20 g / 2.16 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 12 of 50...
  • Page 14 BLE: up to several meters/feet MTBF 500,000 hours Weight Approx. 61.20 g / 2.16 oz © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 13 of 50...

  • Page 15: Firmware

    (Fig. 1) attached on the rear side of the housing or directly on the module. This label contains important © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 14 of 50...

  • Page 16: Scope Of Delivery

    O-ring seal Dimensions: 65.00 x 2.00 mm / 2.55 x 0.07 inch Material: nitrile butadiene rubber (NBR) © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 15 of 50...
  • Page 17 The frame is an optional component. Depending on your product configuration, it may not be included in your kit. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 16 of 50...
  • Page 18 RFID readers and modules of the TWN4 Palon Compact family to the intended host devices. Refer to the ELATEC website for more information about the available cables and accessories. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 17 of 50...

  • Page 19: Installation

    The use of the RS-485 interface requires a shielded cable. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 18 of 50...
  • Page 20 Use the groove (marked in blue in Fig. 4) on the housing and the tongue (marked in green in Fig. 4) on the frame to connect the two parts. Fig. 4 © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 19 of 50...
  • Page 21 Chapter “Pin assignment” for detailed information. The push-in connector is designed for a tool- free connection of the wire ends. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 20 of 50...
  • Page 22 Address 3 MSB RS-485 BIAS on/off Speed 0 Speed 1 RS-485 120 Ohm termination Optional (depending on the configuration) © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 21 of 50...

  • Page 23: Twn4 Palon Compact Wall Series

    The reader is for indoor use only! The use of the RS-485 interface requires a shielded cable. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 22 of 50...
  • Page 24 The frame is an optional component. Depending on your product configuration, it may not be included in your kit. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 23 of 50...
  • Page 25 Address 3 MSB RS-485 BIAS on/off Speed 0 Speed 1 RS-485 120 Ohm termination Optional (depending on the configuration) © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 24 of 50...
  • Page 26 The backside of the frame should flush to the wall the reader is mounted on. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 25 of 50...
  • Page 27 Press the front lid against the front side of the housing until the dovetail snaps into place. The front lid presses against the design frame and makes sure that it stays in place. Fig. 11 © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 26 of 50...

  • Page 28: Mode Of Operation

    Turn off the green LED. • Blink the red LED for two seconds. • Turn on the green LED. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 27 of 50...

  • Page 29: Suspend Mode

    USB bus. Therefore, the reader will resume to normal operation too. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 28 of 50...

  • Page 30: Compliance Statements

    © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 29 of 50...

  • Page 31: Twn4 Palon Compact M Light

    (2) this device must accept any interference received, including interference that may cause undesired operation. (except receivers associated with operation of a licensed radio service and stand-alone devices). © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 30 of 50...
  • Page 32 Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 31 of 50...
  • Page 33 （六）在航空器内和依据法律法规、国家有关规定、标 product use must be discontinued immediately 准划设的射电天文台、气象雷达站、卫星地球站（含测 and suitable measures must be taken prior to 控、测距、接收、导航站）等军民用无线电台（站）、 © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 32 of 50...

  • Page 34: Twn4 Palon Compact Legic M

    2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 33 of 50...
  • Page 35 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 34 of 50...

  • Page 36: Twn4 Palon Compact Legic M Light

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 35 of 50...
  • Page 37 器），不得擅自更改发射天线； the transmission power (including installing additional transmission power amplifiers), as well © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 36 of 50...
  • Page 38 -40 °C – 85 °C. The user must strictly adhere to these temperature and voltage specifications when using the product. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 37 of 50...

  • Page 39: Twn4 Palon Compact Panel

    © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 38 of 50...

  • Page 40: Twn4 Palon Compact Wall Light

    2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 39 of 50...
  • Page 41 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 40 of 50...
  • Page 42 （六）在航空器内和依据法律法规、国家有关规定、标 product use must be discontinued immediately 准划设的射电天文台、气象雷达站、卫星地球站（含测 and suitable measures must be taken prior to 控、测距、接收、导航站）等军民用无线电台（站）、 © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 41 of 50...

  • Page 43: Twn4 Palon Compact Legic Wall

    2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 42 of 50...
  • Page 44 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 43 of 50...

  • Page 45: Twn4 Palon Compact Legic Wall Light

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 44 of 50...
  • Page 46 器），不得擅自更改发射天线； the transmission power (including installing additional transmission power amplifiers), as well © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 45 of 50...
  • Page 47 -40 °C – 85 °C. The user must strictly adhere to these temperature and voltage specifications when using the product. © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 46 of 50...
  • Page 48 United Kingdom. • UKCA marking © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 47 of 50...

  • Page 49: Appendix

    RFID radio frequency identification read/write (distance) C – REVISION HISTORY VERSION CHANGE DESCRIPTION EDITION First edition 05/2024 © 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024 Page 48 of 50...
  • Page 50 ELATEC reserves the right to change any information or data in this document without prior notice. ELATEC declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer themselves at their own responsibility.
