TWN4 USB Front Reader LEGIC
3.3

FIRMWARE

Your product is delivered ex-works with a specific firmware version, which is displayed on the product
label (Fig. 1).
3.4

LABELING

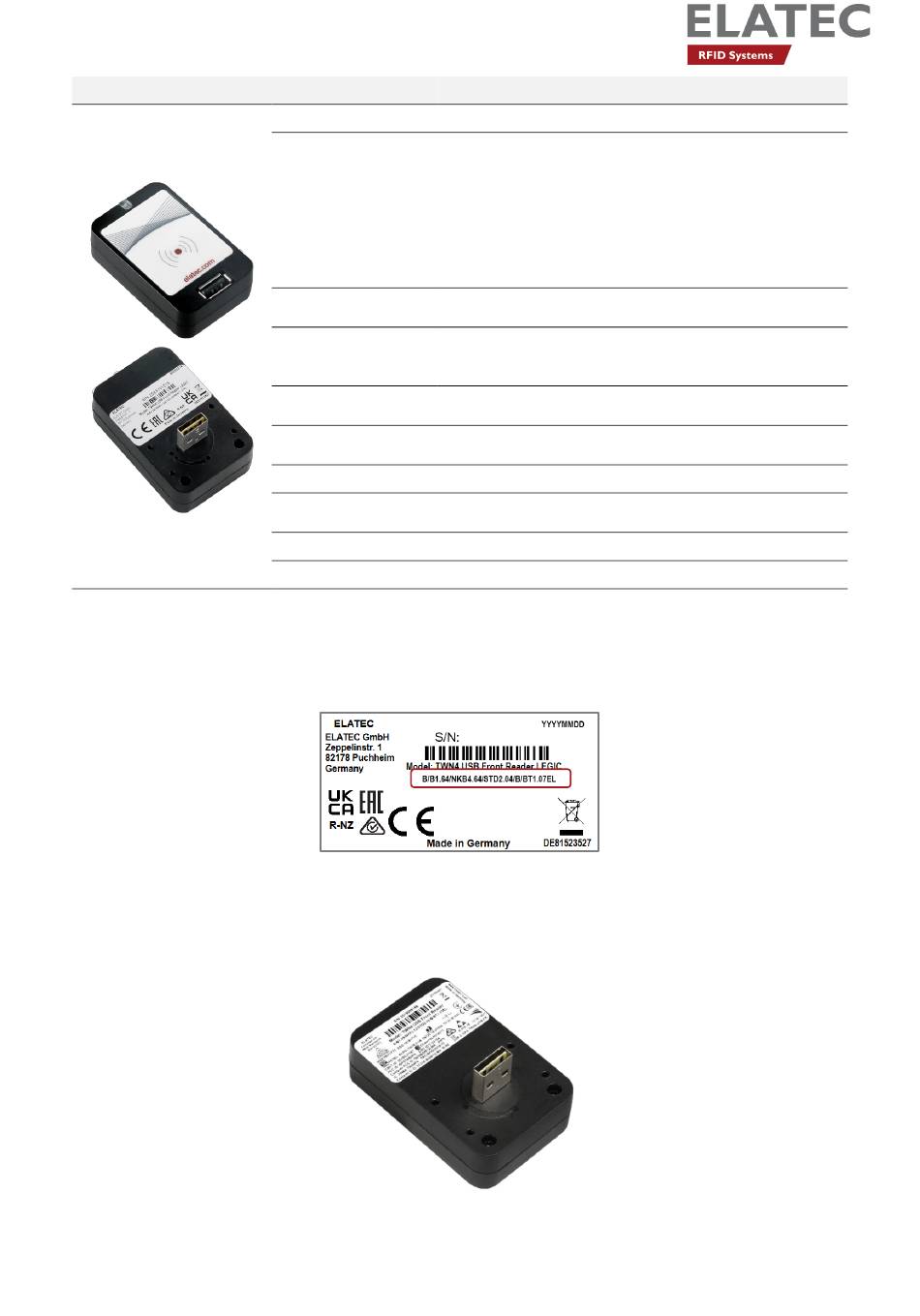

The RFID readers of the TWN4 USB Front Reader family are delivered ex-works with a label (Fig. 1)
attached on the rear side of the housing (Fig. 2).
© 2024 – ELATEC GmbH – TWN4 USB Front Reader family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF) / 2.4 GHz (BLE)
Integrated RFID LF antenna
Dimensions: 48.00 x 33.00 mm / 1.89 x 1.30 inch
Number of turns: 128
Integrated RFID HF antenna
Antennas
Dimensions: 48.00 x 33.00 mm / 1.89 x 1.30 inch
Number of turns: 3
Bluetooth Low Energy
Integrated BLE chip
Dimensions Approx.
(L x W x H) 60.00 x 39.00 x 16.50 mm / 2.36 x 1.54 x 0.65 inch
USB: 4.3 V - 5.5 V
Power ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 260 mA typically + 16 mA (BLE)
consumption
Temperature Operating: 0 °C up to +65 °C / +32 °F up to +149 °F
ranges Storage: -40 °C up to +70 °C / -40 °F up to +158 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 51 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 22 g / 0.78 oz
Fig. 1 - exemplary illustration
Fig. 2 - exemplary illustration
