3 PRODUCT DESCRIPTION

3.1

INTENDED USE

The RFID readers of the TWN4 USB Front Reader family allow users to read and write RFID media in
the 125 kHz (LF) and 13.56 MHz (HF) frequency bands. In addition, the readers also support the BLE
(2.4 GHz) technology. All readers are for indoor use only and must be used in environmental conditions
according to the respective product data sheets and installation instructions.
Any use other than the intended use described in this section, as well as any failure to comply with the
safety information given in this document, is considered improper use. ELATEC excludes any liability
in case of improper use or faulty product installation.
3.2

PRODUCT FAMILY

The TWN4 USB Front Reader family contains the following RFID readers:

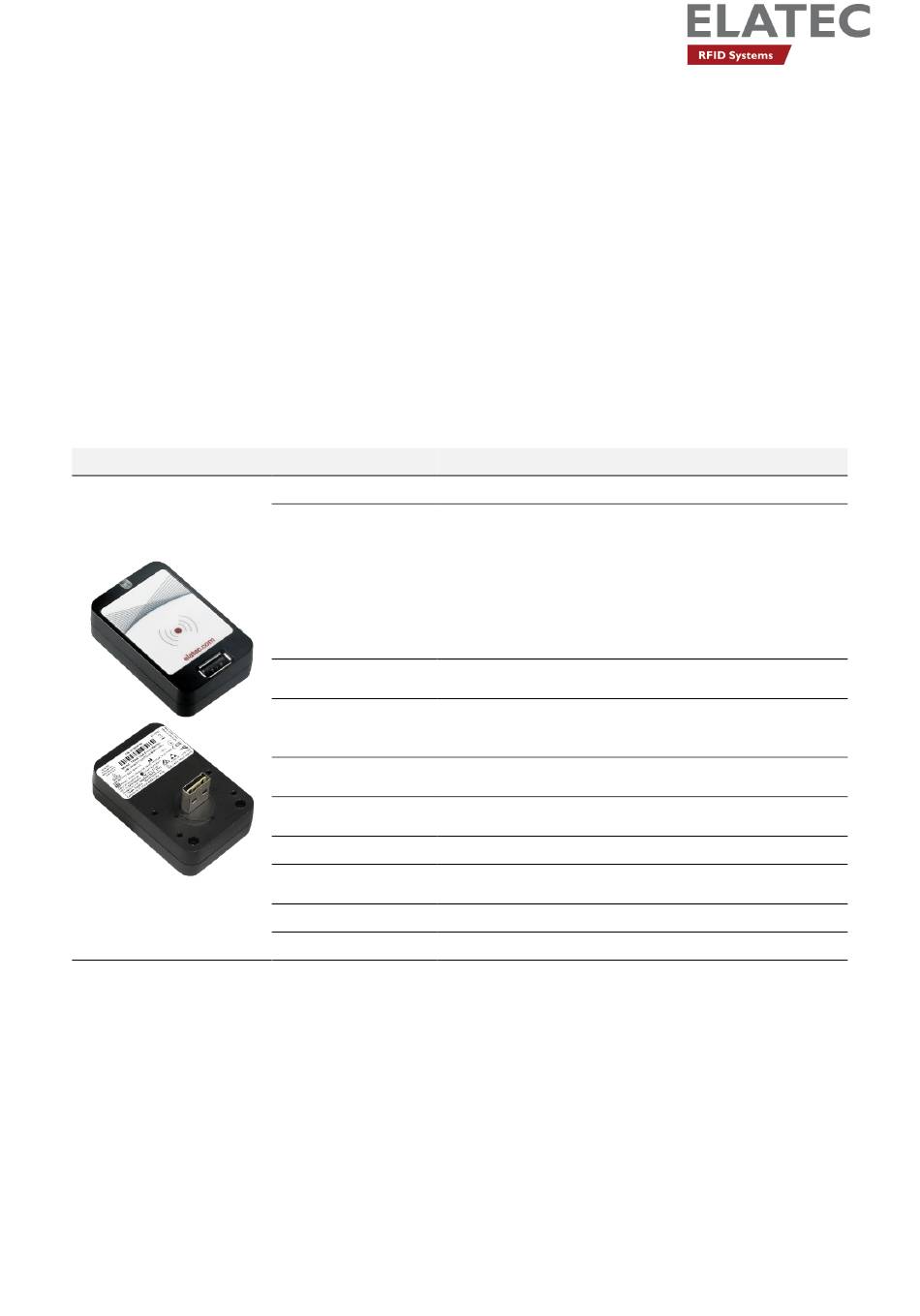

TWN4 USB Front Reader
© 2024 – ELATEC GmbH – TWN4 USB Front Reader family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF) / 2.4 GHz (BLE)
Integrated RFID LF antenna
Dimensions: 48.00 x 33.00 mm / 1.89 x 1.30 inch
Number of turns: 128
Integrated RFID HF antenna
Antennas
Dimensions: 48.00 x 33.00 mm / 1.89 x 1.30 inch
Number of turns: 3
Bluetooth Low Energy
Integrated BLE chip
Dimensions Approx.
(L x W x H) 60.00 x 39.00 x 16.50 mm / 2.36 x 1.54 x 0.65 inch
USB: 4.3 V - 5.5 V
Power ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 260 mA typically + 16 mA (BLE)
consumption
Temperature Operating: 0 °C up to +65 °C / +32 °F up to +149 °F
ranges Storage: -40 °C up to +70 °C / -40 °F up to +158 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 51 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 22 g / 0.78 oz
