3.9

TEST MODES AND ADDITIONAL TESTING REQUIREMENTS

No specific testing method has been defined by ELATEC for TWN4 MultiTech 2 M HF.

TWN4 MultiTech 2 M HF has been tested and found in compliance with the specifications noted on the approval certificates and other

relevant approval documents. However, the integrator is still responsible for any additional testing and authorization process required

for the end product.

It is recommended that the host product manufacturer installing the modular transmitter perform some investigative measurements to

confirm that the resulting composite system does not exceed the spurious emissions limits or band edge limits (e.g., where a different

antenna may be causing additional emissions). Detailed information regarding test procedure are described in the relevant rule parts

(refer to Chapter "List of applicable rules").

3.10

TWN4 MultiTech 2 M HF is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host

product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter

grant of certification. In addition, the final host product still requires Part 15 Subpart B compliance testing with TWN4 MultiTech 2 M HF

installed.

3.11

The module can be fixed with four screws M2.5.

3.12

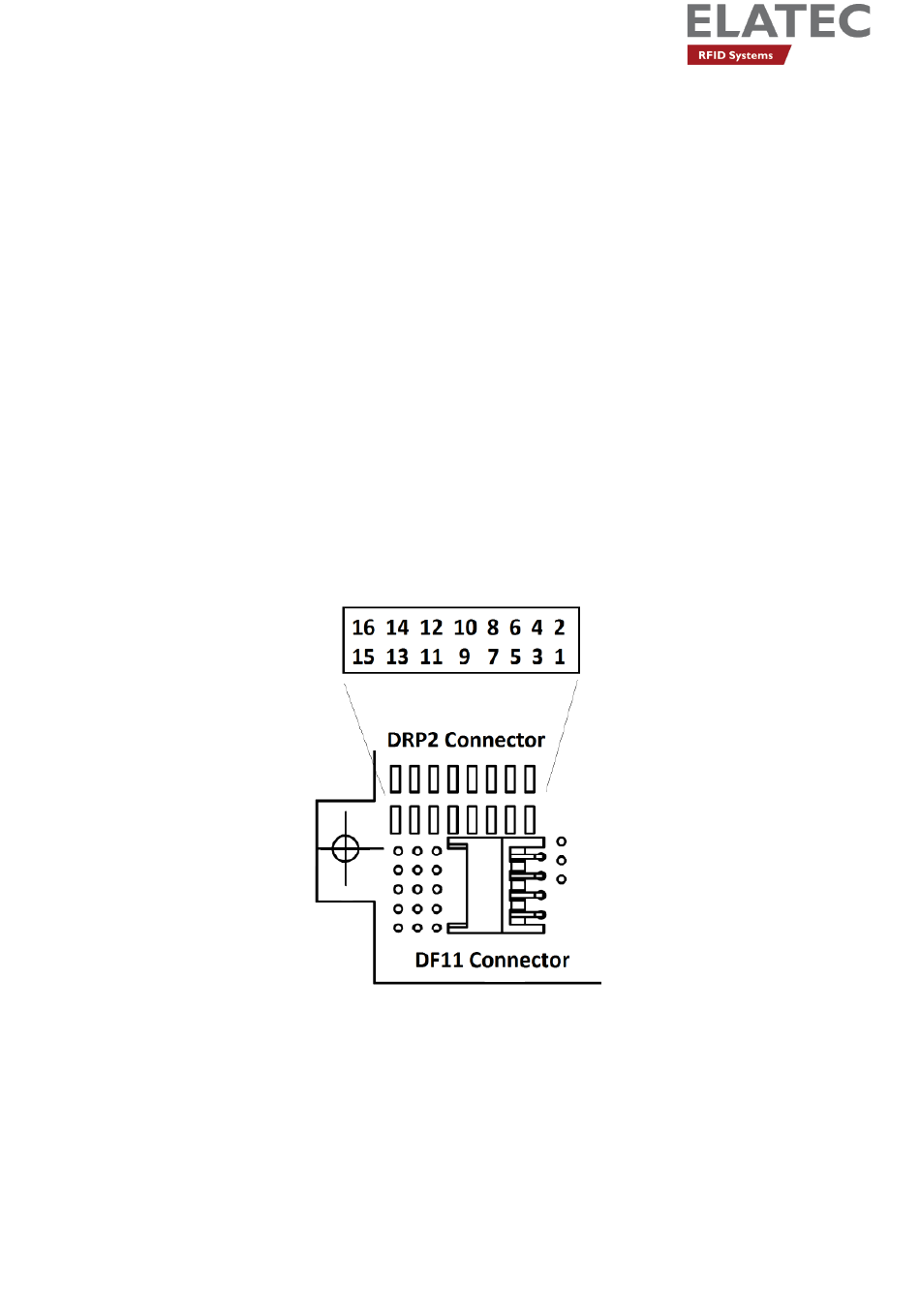

The module can be connected via USB, RS-232 and other interfaces. The input voltage is 4.3V to 5.5V.

Page 4 of 13
