2. Installation of Mini Reader Mifare
This chapter covers the installation of Mini Reader Mifare

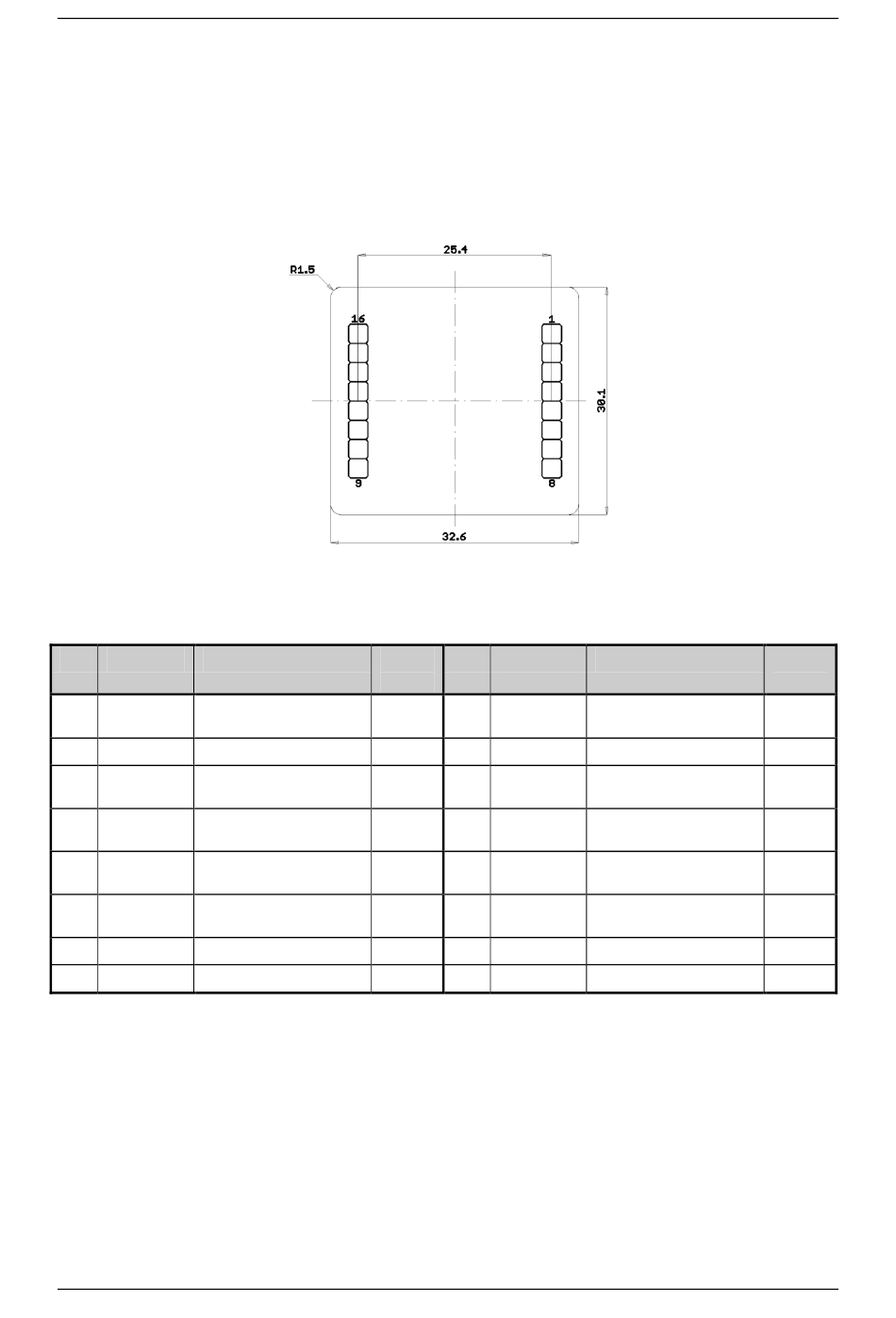

2.1 Mechanical Outline

All dimensions are in mm.

2.2 Pinning

Pin Name Description
1 RESET ¯¯¯¯¯ Asynchronous reset
2 PWRDWN ¯¯¯¯¯¯¯ Hard power down
3 GND Ground
3.3V – 5V
4 VCC
5 RXD/MOSI UART/SPI receiver input
6 TXD/MISO UART/SPI transmitter
output
7 SCK SPI serial clock
8 SS ¯¯ SPI slave select
I: Input
O: Output
IO: Input / Output
S: Supply
PU: Integrated Pull-up resistor
Elatec GmbH
Component side shown, Pin spacing: 2.54mm
Pin
char.
I / PU
I / PU
S
S
I / PU
O
I
I / PU
®
NFC in an embedded environment.
Pin Name Description
9 VSAM 3.0V regulated supply for
SAM
10 SAM_IO Bidirectional SAM I/O line
11 GPIO3 General purpose
input/output 3
12 GPIO2 General purpose
input/output 2
13 GPIO1 General purpose
input/output 1
14 GPIO0 General purpose
input/output 0
15 SAM_CLK SAM clock
16 SAM_RST SAM reset
®
NFC
Pin
char.
S
IO / PU
IO
IO
IO
IO
O
O
