Transponder Reader

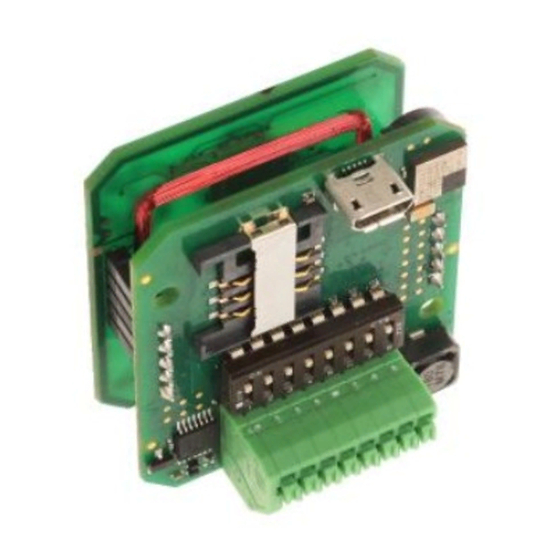

TWN4 Palon Compact LEGIC
Integration Manual
Rev. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWN4 Palon Compact LEGIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elatec TWN4 Palon Compact LEGIC

Summary of Contents for Elatec TWN4 Palon Compact LEGIC

  • Page 1 Transponder Reader TWN4 Palon Compact LEGIC Integration Manual Rev. 1...

  • Page 2: Getting Started

    2.2 Power Up Once a TWN4 Palon Compact LEGIC reader is connected to the host, it detects the type of communications cable (USB or RS232), with which it is connected to the host.

  • Page 3: Normal Operation

    Elatec GmbH 2.3 Enumeration (USB Only) This is only applicable for the USB version: Once the device has been powered up, it is waiting for completion of the enumeration by the USB host. As long as the device is not enumerated, it is entering a minimum power consumption mode, where both LEDs are turned off.
  • Page 4 Elatec GmbH 2.6 Detection of a Transponder If a transponder is detected by the reader, following actions are performed  Send the ID to the host. By default, the USB device sends by emulating keystrokes of a keyboard. A RS232 device sends the ASCII code of an ID.
  • Page 5 Elatec GmbH 3. List of Antennas 125 kHz antenna 13,56 MHz antenna Page 5 of 15...

  • Page 6: Power Supply

    Elatec GmbH 4. Power Supply In case of USB connection, the input voltage is 4.3V to 5.5V. If the device is supplied via the terminal block, the input voltage is 9V to 30V. 5. Pinout Page 6 of 15...

  • Page 7: External Antenna

    Elatec GmbH 6. External Antenna Please note: Connecting an antenna to the UMCC connector is not included in the approvals of the device. In this case, the device requires separate approval with that specific antenna. Page 7 of 15...

  • Page 8: Compliance Statements

    Elatec GmbH 7. Compliance statements 7.1 RF module USA (FCC) (RF module) Compliance statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 9 Elatec GmbH CANADA (ISED) This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 10: Host Device

    Elatec GmbH 7.2 Host device USA (FCC) FCC notes for a host subject to SDoC: For a host device assembled with the certified module and subject to 47 CFR Part 15, the following statements have to be included in the user manual and the host device has to be labelled as noted below.
  • Page 11 Elatec GmbH For class B devices: FCC §15.105 (b): Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12 If additional filing is required please contact the person at ELATEC GmbH responsible for certification of the RF module. Page 12 of 15...
  • Page 13 Elatec GmbH CANADA (ISED) This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 14 Elatec GmbH NCC Warning Statement 低功率電波輻射性電機管理辦法 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得 擅自變更頻率、加大功率或變更原設計之特性及功能。 (即低功率電波輻射性電機管理辦法第十二條) 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現 象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受 合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 (即低功率電波輻射性電機管理辦法第十四條) 本模組於取得認證後將依規定於模組本體標示審驗合格標籤， 並要求最終產品平台廠商(OEM Integrator)於最終產品平台(End Product)上標 示 ”本產品內含射頻模組，其NCC型式認證號碼為：CCXXxxYYyyyZzW ”。 應避免影響附近雷達系統之操作。 Page 14 of 15...
  • Page 15 Elatec GmbH Service Address In case of any technical questions, please contact: Elatec GmbH Zeppelinstr. 1 82178 Puchheim Germany Phone: +49 (0) 89 5529961 0 Fax: +49 (0) 89 5529961 129 Email: info-rfid@elatec.com Page 15 of 15...
