- Page 1 DS1 BERT VePAL TX130+ T he Veri fication E xper ts...

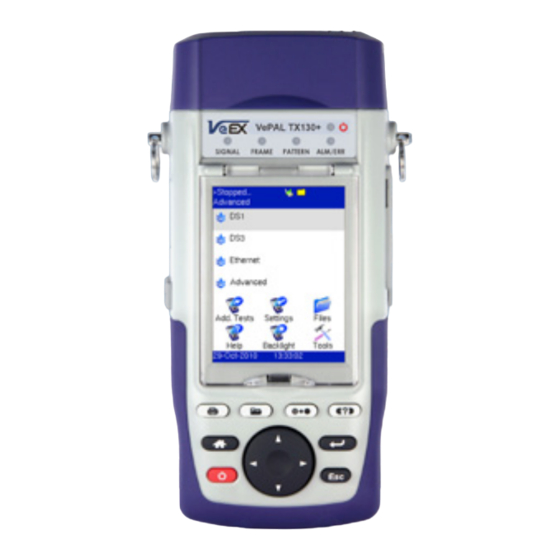

- Page 2 DS1 BERT VePAL TX130+ Quick Reference Guide TX130+ Test Set Test interfaces Stylus OPEN LED indicators Color touch-screen USB/Ethernet Ports DC charger input LCD cover OPEN Keypad Li-Ion Battery Pack...
- Page 3 DS1 BERT VePAL TX130+ Quick Reference Guide Home Menu The Home menu can be accessed at anytime during operation by pressing the Home key on the rubber keypad. The screen is divided into three presentation areas: Test Applications specific to the test set (DS1, DS3, Ethernet, and Advanced Mode) ...
- Page 4 DS1 BERT VePAL TX130+ Quick Reference Guide DS1 Home Allows the user to set up the DS1 interfaces and associated test parameters prior to running a test. DS1 Home Menu Setup – configure Interface, Measurement and General settings; Framing, Line code, Pattern, Clock source and Offset options are also configured in this screen Results –...
- Page 5 DS1 BERT VePAL TX130+ Quick Reference Guide Configuration 1. Connect to the DS1 test interface using the Bantam connectors 2. Power on the unit 3. From the DS1 Home menu, tap on the Setup menu 4. Configure the Measurements and General settings Measurements: Mode - fixed duration or delayed start Performance Analysis - None, G.821,...
- Page 6 DS1 BERT VePAL TX130+ Quick Reference Guide Configuration (cont’d) To configure fields that require alpha or alpha-numeric entry, such as Frequency Offset, a configuration keypad will appear when the applicable field is selected. 6. Tap to return to the previous menu. 7.
- Page 7 DS1 BERT VePAL TX130+ Quick Reference Guide Configuration (cont’d) 8. Configure the Pattern. Use the pattern drop down box to select the test pattern. PRBS, fixed words and 32 bit user defined patterns are available. INVERT: Inversion of PRBS polarity is also available.
- Page 8 DS1 BERT VePAL TX130+ Quick Reference Guide Results 10. When the test is started, the screen automatically moves to the Results, Summary screen. − Results can be viewed by selecting the following tabs: Summary, Analysis, Errors/Alarms, Histogram, Graph, Signal, and Event Log Summary screen: Provides an overview of any alarms, errors or signal failures.
- Page 9 DS1 BERT VePAL TX130+ Quick Reference Guide Results (cont’d) Errors/Alarms screen: The soft LEDs on screen are arranged logically and depend on signal hierarchy, structure, payload and framing selected. The soft LEDs have a tri-color function. Green: No error or alarm is present Red: An error or alarm condition is detected and is currently present Yellow: Indicates a history condition...
- Page 10 DS1 BERT VePAL TX130+ Quick Reference Guide Results (cont’d) Signal screen: Tap the Signal tab to bring up the Frequency and Level results. FREQUENCY – the received signal frequency and offset is measured and displayed. − 1.5M current: Indicates the frequency of the input signal −...
- Page 11 DS1 BERT VePAL TX130+ Quick Reference Guide Results (cont’d) Event Log screen: Tap the Event Log tab to display a listing of the Error and Alarm events recorded during a test. EVENTS – presented in chrono- logical sequence - number, type of event, start time and duration, duration (alarms) and ratio/count (errors) are displayed.
- Page 12 Quick Reference Guide Notes © 2011 VeEX Inc. All rights reserved. VeEX Inc. VeEX is a registered trademark of VeEX Inc. The 2827 Lakeview Court information contained in this document is accurate. Fremont, CA 94538 USA However, we reserve the right to change any Tel: +1.510.651.0500...
