TWN4 Palon Compact LEGIC Wall Light
Refer to the data sheet of your product for additional technical specifications.
3.3

FIRMWARE

Your product is delivered ex-works with a specific firmware version, which is displayed on the product
label.
3.4

LABELING

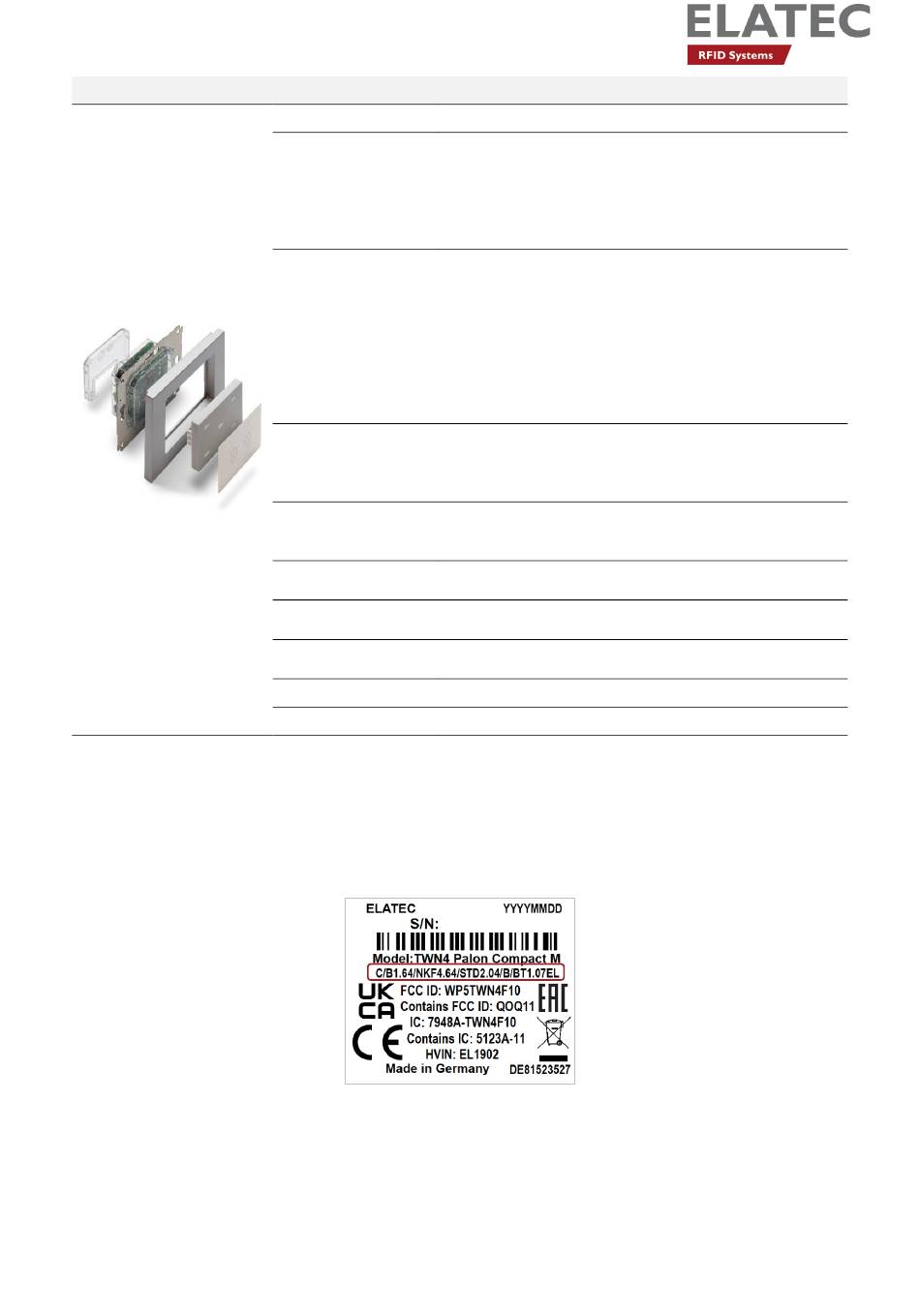

The RFID readers and modules of the TWN4 Palon Compact family are delivered ex-works with a label
(Fig. 1) attached on the rear side of the housing or directly on the module. This label contains important
© 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 27.00 x 27.50 mm / 1.06 x 1.08 inch
Number of turns: 179
Antennas
Integrated RFID HF antenna
Dimensions: 39.00 x 42.50 mm / 1.54 x 1.67 inch
Number of turns: 3
Reader with front lid and white standard frame
Approx.
80.50 x 80.50 x 36.50 mm / 3.17 x 3.17 x 1.44 inch
Reader with front lid and without frame
Dimensions
Approx.
(L x W x H)
71.00 x 71.00 x 32.90 mm / 2.80 x 2.80 x 1.30 inch
Reader without front lid and without frame
Approx.
71.00 x 71.00 x 30.80 mm / 2.80 x 2.80 x 1.22 inch
Micro USB: 4.3 V – 5.5 V
Connector X1: 9.0 V – 30 V
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Operating: 160 mA @ 12 V typically
Current
Idle: 50 mA @ 12 V typ.
consumption
Peak: 250 mA @ 12 V typ.
Temperature Operating: -25 °C up to +70 °C / -13 °F up to +158 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
IP54 protected housing (frontside, when mounted)
Relative humidity
5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 61.20 g / 2.16 oz
Fig. 1 - exemplary illustration
