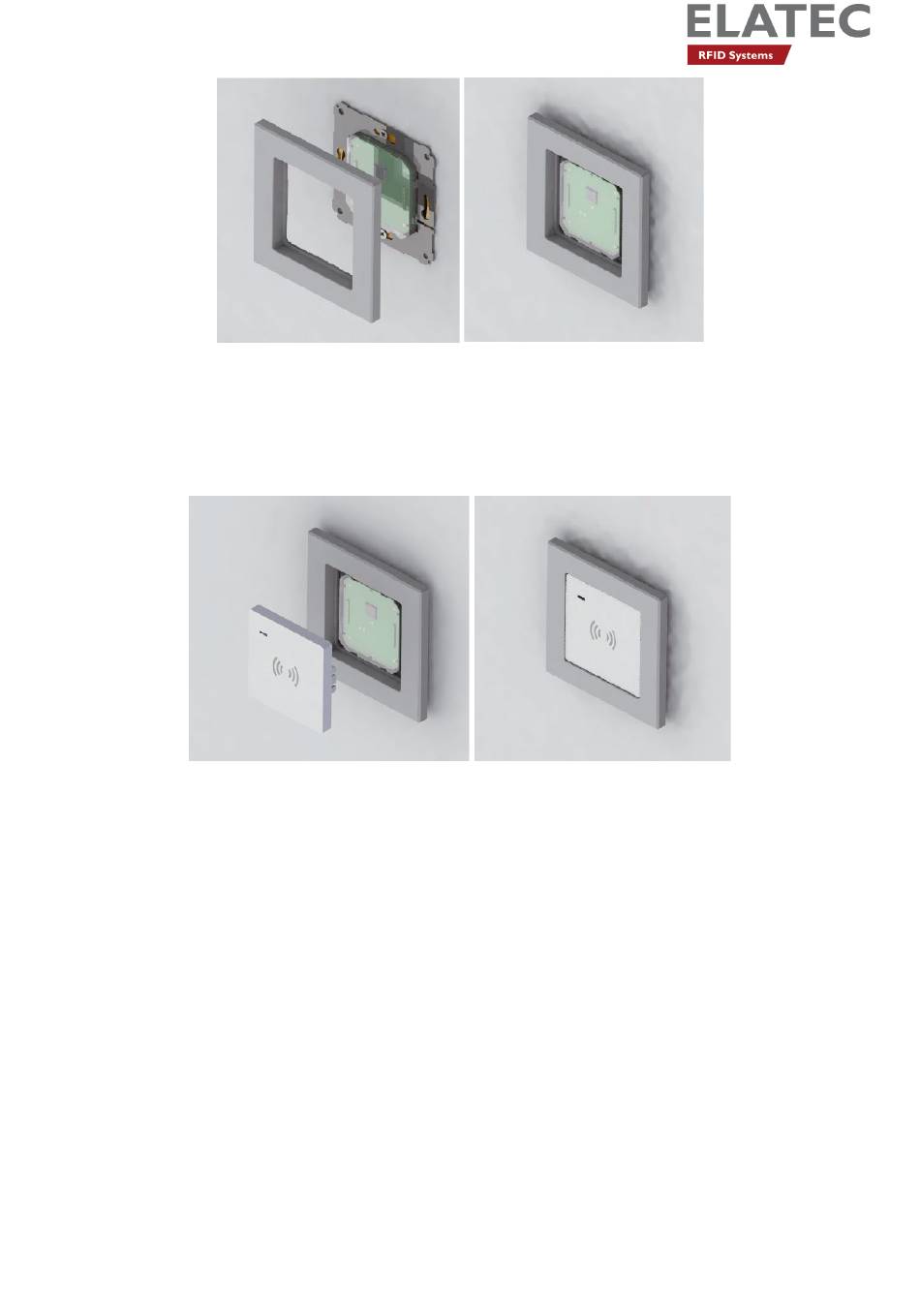

Mind a gap between frame and wall to avoid that the frame gets removed accidentally.

Press the front lid against the front side of the housing until the dovetail snaps into place. The front

lid presses against the design frame and makes sure that it stays in place.

Fig. 10

Fig. 11

Page 26 of 50
