Elatec TWN4 Palon Compact Series User Manual page 8

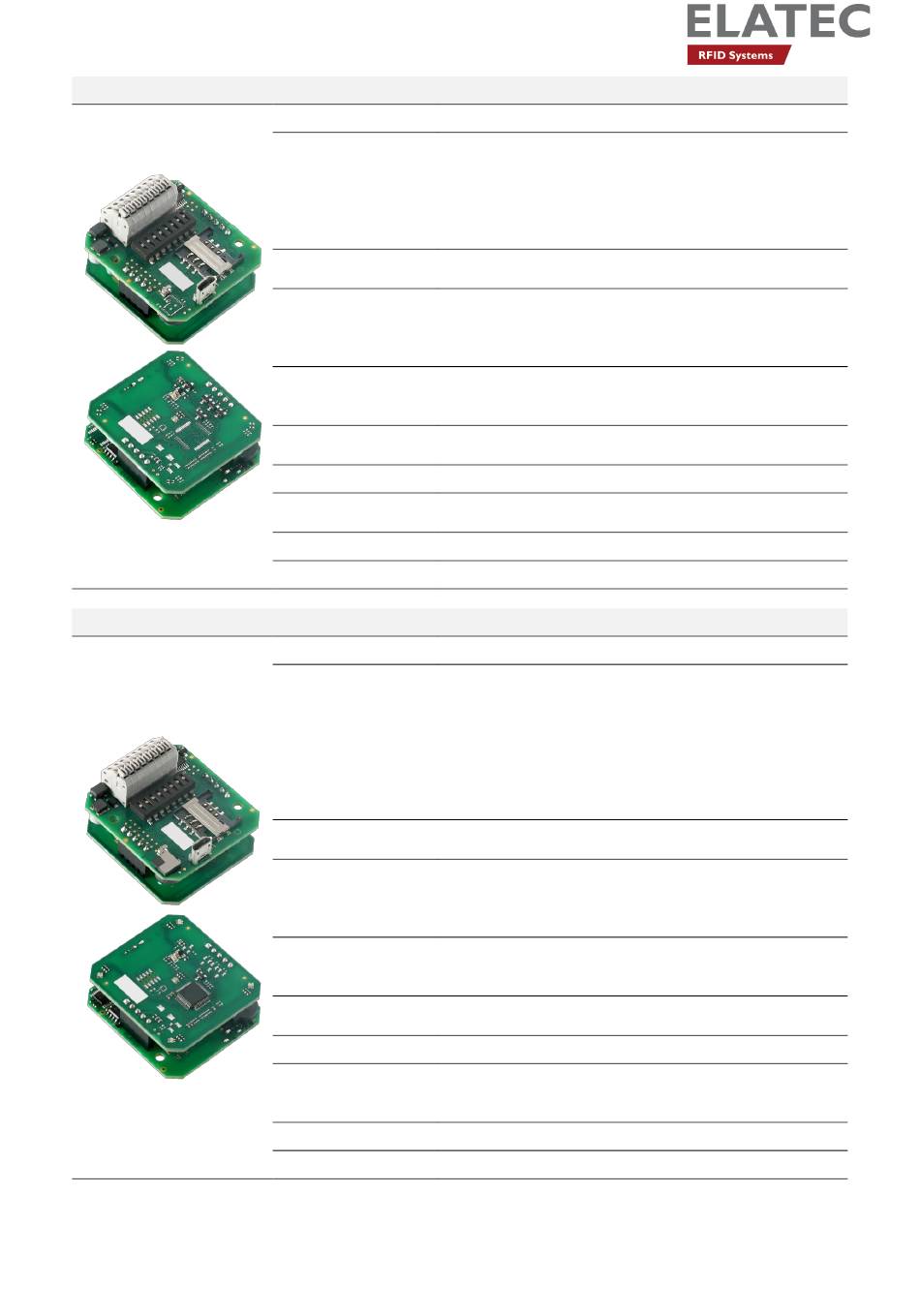

TWN4 Palon Compact M Light
TWN4 Palon Compact LEGIC M
© 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 27.00 x 27.50 mm / 1.06 x 1.08 inch
Number of turns: 179
Antennas
Integrated RFID HF antenna
Dimensions: 39.00 x 42.50 mm / 1.54 x 1.67 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 40.65 x 43.85 x 27.80 mm / 1.60 x 1.73 x 1.09 inch
Micro USB: 4.3 V – 5.5 V
Connector X1: 9.0 V – 30 V
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Operating: 160 mA @ 12 V typically
Current
Idle: 50 mA @ 12 V typ.
consumption
Peak: 250 mA @ 12 V typ.
Temperature Operating: -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 25 g / 0.88 oz
Frequencies 125 kHz (LF) / 13.56 MHz (HF) / 2.4 GHz (BLE)
Integrated RFID LF antenna
Dimensions: 27.00 x 27.50 mm / 1.06 x 1.08 inch
Number of turns: 179
Integrated RFID HF antenna
Antennas
Dimensions: 39.00 x 42.50 mm / 1.54 x 1.67 inch
Number of turns: 3
Bluetooth Low Energy
Integrated BLE chip
Dimensions Approx.
(L x W x H) 40.65 x 43.85 x 27.80 mm / 1.60 x 1.73 x 1.09 inch
Micro USB: 4.3 V – 5.5 V
Connector X1: 9.0 V – 30 V
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Operating: 160 mA @ 12 V typically
Current
Idle: 50 mA @ 12 V typ.
consumption
Peak: 250 mA @ 12 V typ.
Temperature Operating: -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance environment and transponder
BLE: up to several meters/feet
MTBF 500,000 hours
Weight Approx. 25 g / 0.88 oz
Page 7 of 50
