3. Guide the thread of the housing through the recess. Make sure that the slot nut on the housing
(marked in green in Fig. 5) is aligned with the slot of the recess (marked in blue in Fig. 5). To
position the reader on the wall surface, lead the slot nut in the groove of the recess.
4. Finally, fix the reader in its final position by turning the locknut over the thread.
4.2.2 ELECTRICAL CONNECTION
Before starting with the electrical connection of the reader, make sure you have read and understood
the following safety information:
Put the wires into proper position. The chosen length of the wires should protect the wire from
•
stress after the installation has been completed.
• Prepare the wires for the connection to the reader. Use the wire stripper to remove the insulation.
The recommended stripping length is 8 mm.
• For RS-485 usage: Set the DIP switches to the right position, depending on the required RS-485
parameters (address, speed, termination). Refer to Chapter "DIP switch positions" below for
detailed information. Also, set the DIP 8 of the last reader in the RS-485 communication line to ON
to terminate the line.
Connect the wires to the connector and make sure the pins match the used interface. Refer to
•
Chapter "Pin assignment" for detailed information. The push-in connector is designed for a tool-
free connection of the wire ends.
© 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024

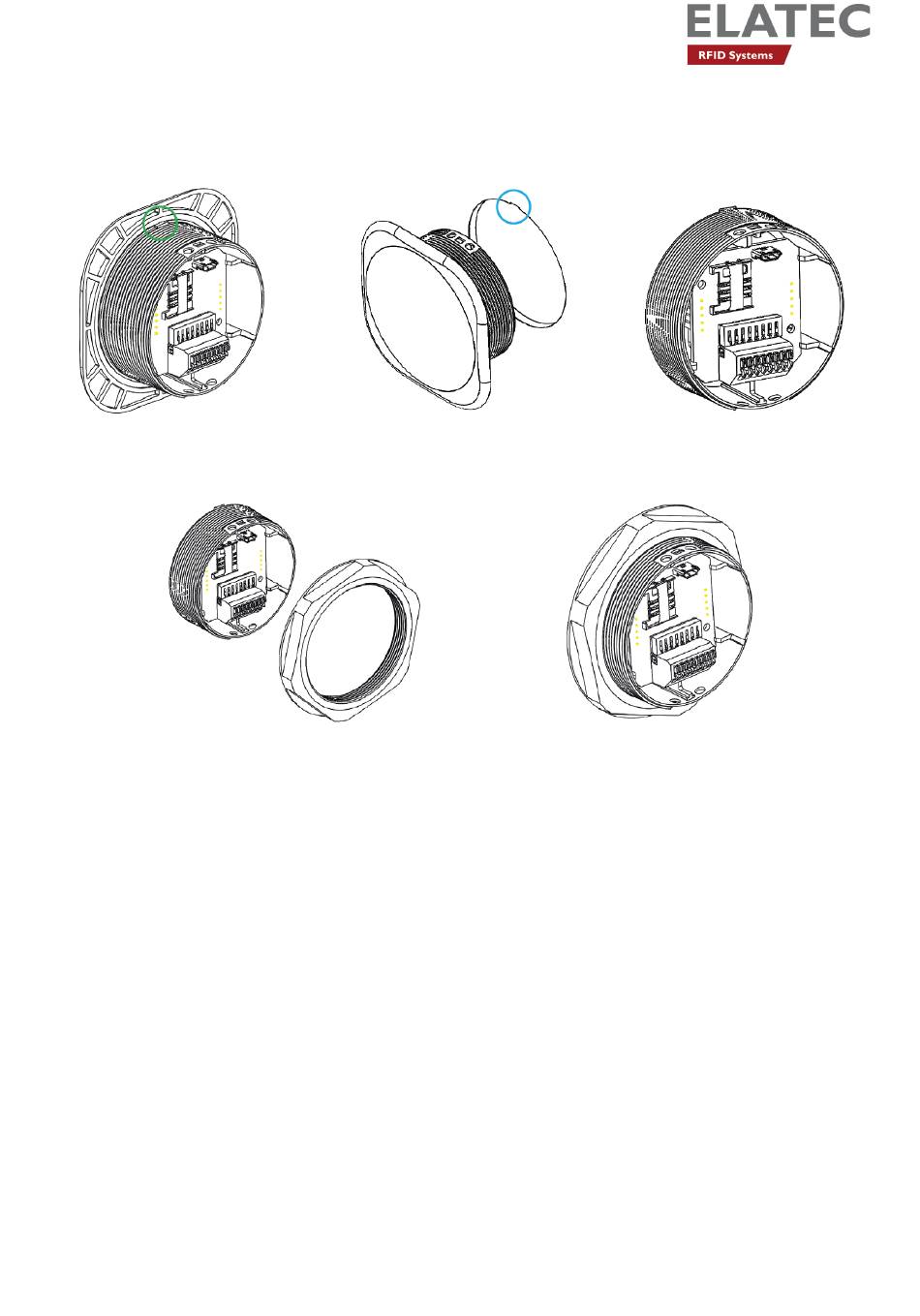

Fig. 5
