TWN4 PALON COMPACT WALL SERIES

Before starting with the installation of a TWN4 Palon Compact Wall kit, make sure you have read and
understood the following safety information:
• The installation of the reader should be done by trained and qualified personnel only.
If you are unsure about any part of the following instructions, please contact ELATEC.
•
The reader is to be installed and used in accordance with applicable electrical standards and
•
regulations.
Turn off power at all wires before you start the installation process. Make sure that power is turned
•
off by testing the power supply of each wire. The reader may be supplied with power only after
the installation has been completed.
In addition, the following information regarding the installation site and equipment needed for the
installation must be observed:
For connection with RS-232, RS-485
•
mm² – 0.5 mm² (corresponds to a diameter of 0.5 mm – 0.8 mm).
• For connection with USB: micro USB cable with B male plug.

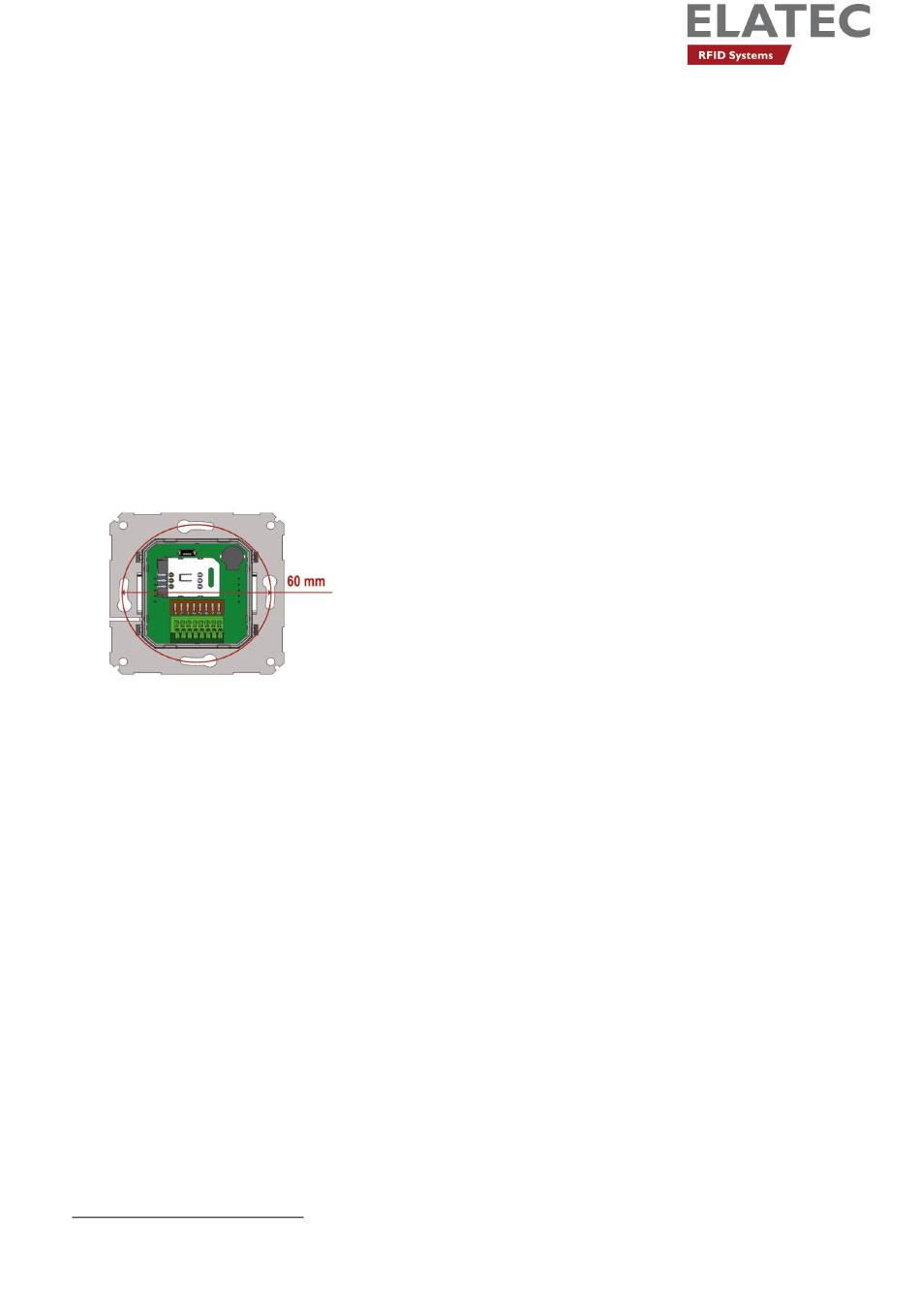

The flush mounted box in which the reader is intended to be installed must be in accordance with
•
standard DIN 49073.
A wire stripper tool is required for the electrical connection of the reader. In addition, a screwdriver
•
(slot screwdriver or Philips screwdriver) is required to tighten the mounting screws delivered with
the kit.
The rear lid is mounted ex-works on the reader. When using the RS-485 interface, remove the rear
•
lid from the housing by pressing the two hooks to loose the snap-fit connection. When using the
micro USB interface, the rear lid cannot be mounted at the same time.
• Please be aware of the influence of metallic materials on or too close to the reader. These materials
could reduce the reading performance of the reader.
• The reader is for indoor use only!
The use of the RS-485 interface requires a shielded cable.
