3.5.2 TWN4 PALON COMPACT WALL KITS
n/a
The frame is an optional component. Depending on your product configuration, it may not be included in your kit.
1
© 2024 – ELATEC GmbH – TWN4 Palon Compact family – user manual – DocRev01 – EN – 05/2024

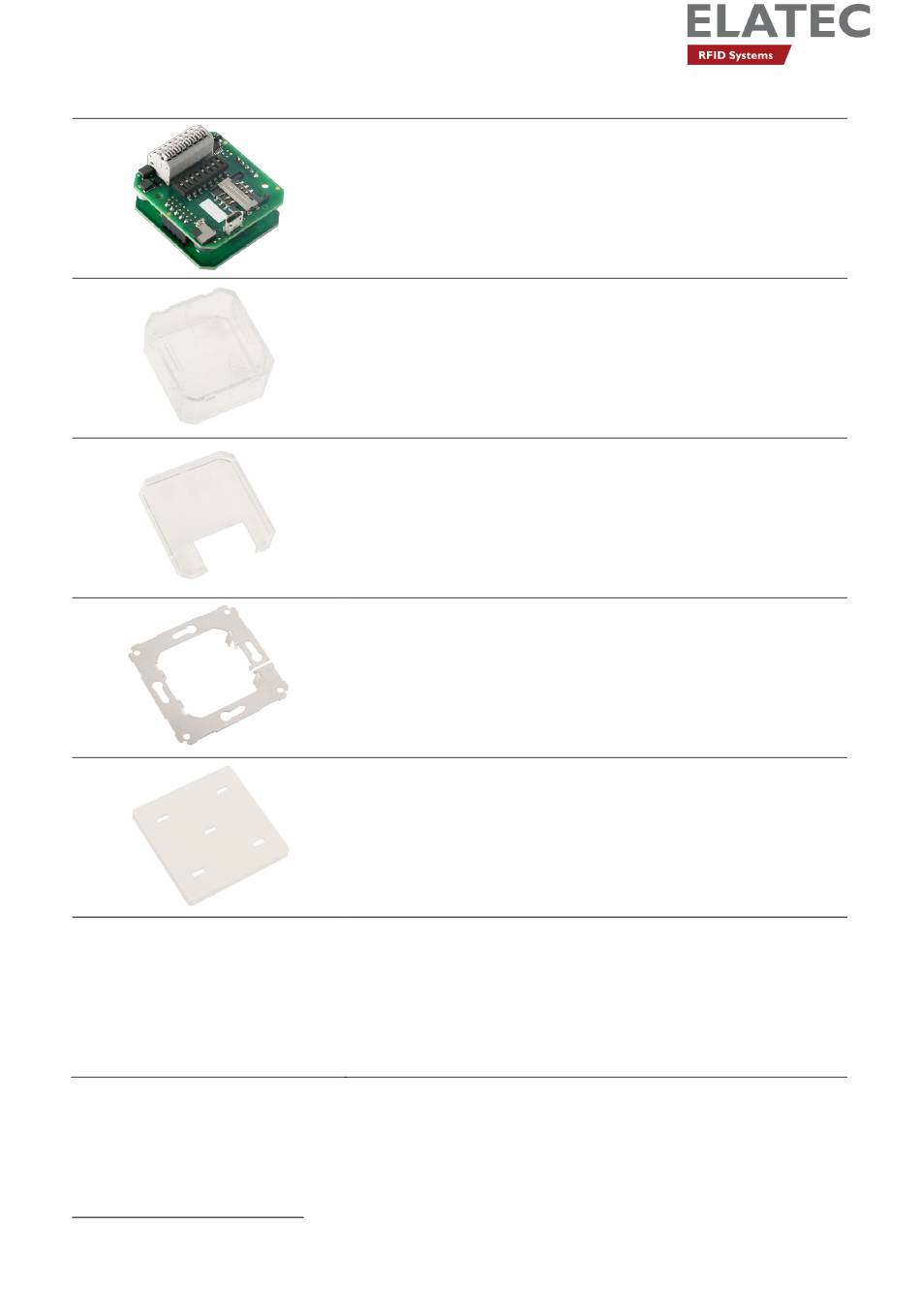

RFID module
Depending on the product configuration, a TWN4 Palon
Compact Wall kit can be delivered with any RFID module of the
TWN4 Palon Compact family (refer to Chapter "TWN4 Palon
Compact M series").
Housing
IP54 protected, transparent polycarbonate housing.
Rear lid
The transparent polycarbonate rear lid is an additional
protection that can be removed to get access to the USB port on
the RFID module pre-installed in the TWN4 Palon Compact Wall
kit.
TWN4 Palon mounting ring
Metal mounting ring for DIN49073 EU flush mount wall boxes.
Front lid
The front lid has been designed for frames with 55 x 55 mm
cutout and contains an IR reflector on the back side.
Frame
1
ELATEC offers different frames for standard configurations of
TWN4 Palon Compact Wall kits. Contact ELATEC for more
information.
