4 TECHNICAL DATA
4.1
TECHNICAL SPECIFICATIONS
FREQUENCY
ANTENNA(S)
DIMENSIONS (L X W X H)
POWER
CURRENT CONSUMPTION
TEMPERATURE RANGE
RELATIVE HUMIDITY
READ/WRITE DISTANCE
WEIGHT
4.2
FIRMWARE
The product is delivered ex-works with a specific firmware version. Refer to the label attached to the product to find the firmware
version installed ex-works.
4.3
ANTENNAS

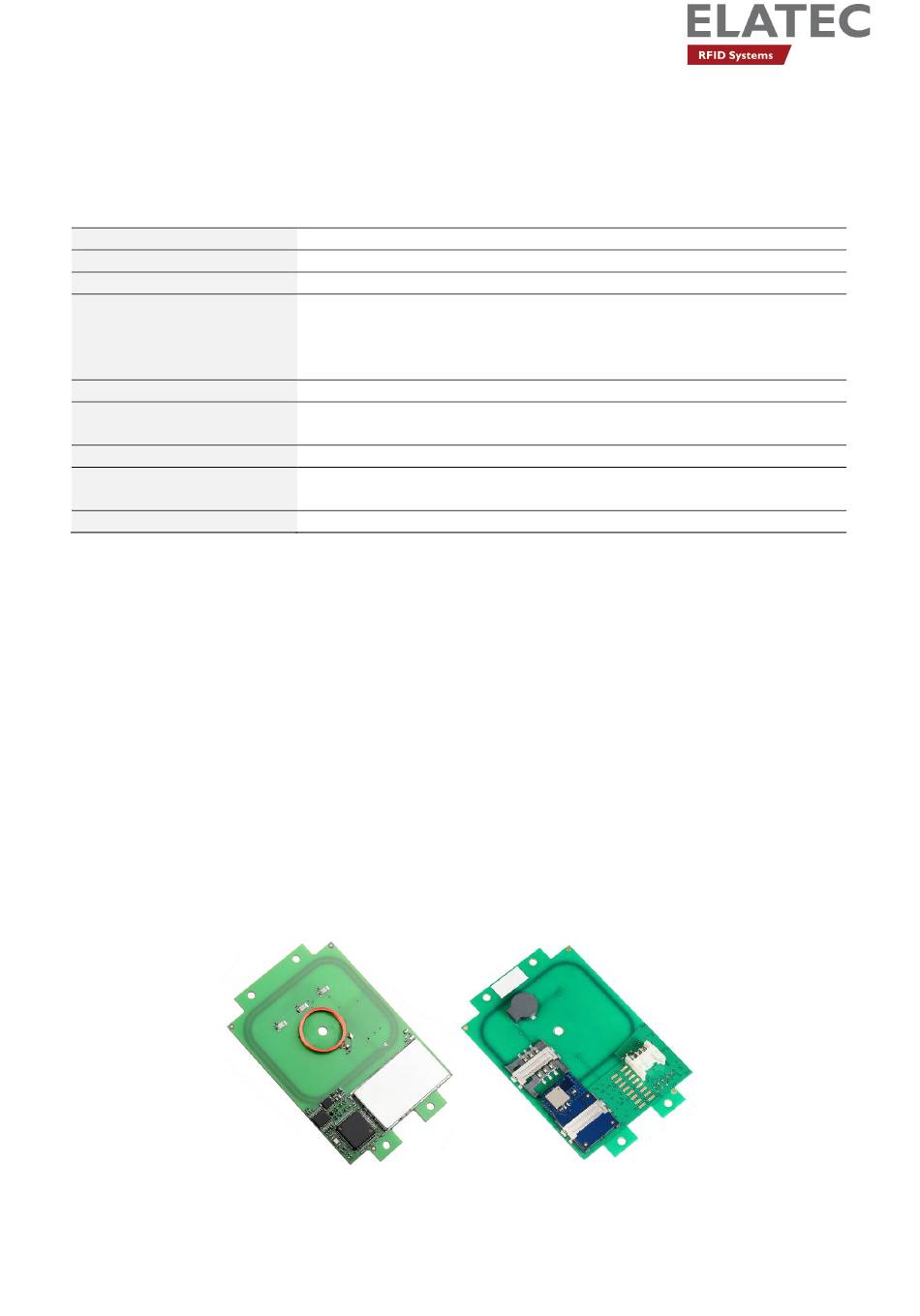

The reader module is equipped with the following antennas:
HF antenna (13.56 MHz)
Dimensions: 42 x 47 mm / 1.65 x 1.85 inch
Number of turns: 3
LF antenna (125 kHz)
Diameter: 16 mm / 0.63 inch
Number of turns: 120
BLE (2.4 GHz)
The module is equipped with a BLE SAM card*.
© 2023 ELATEC GmbH – TWN4 MultiTech 2 LEGIC M user manual – DocRev01 – EN – 07/2023
125 KHZ (LF) / 13.56 MHZ (HF) / 2.4 GHZ (BLE)
Integrated
Approx. 76 x 49 x 9 mm / 3.0 x 1.9 x 0.4 inch
USB: 4.3 V - 5.5 V
Generic interface (X1): 3.3 V ± 5%
RS-232: requires 5 V external power supply
PS2 classified power source according to IEC 62368-1, short-circuit current < 8 A
RF field on: 140 mA typically
Operating: -25 °C up to +80 °C (-13 °F up to +176 °F)
Storage: -40 °C up to +85 °C (-40 °F up to +185 °F)
5% to 95% non-condensing
LF and HF: Up to 100 mm / 4 inch, depending on environment and transponder
BLE: up to several meters/feet
Approx. 15 g / 0.53 oz (without cable)
Page 7 of 14
