Summary of Contents for Classic Exhibits visionary DESIGNS VK-1120

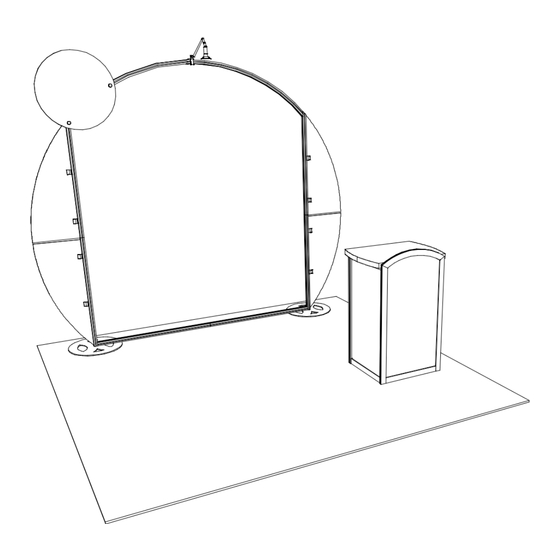

- Page 1 Step 1 Order #XXXXX - General Layout 866.652.2100 10’ Perspective View Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of X...
- Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
-
Page 3: Front View
Step 1 Order #XXXXX - VK-1122 Backwall Assembly 866.652.2100 Item Qty. Description Base Plates Velcro: 39” Vertical extrusion Back/Top 39” Vertical extrusion top left outside cut Edge 39” Vertical extrusion 39” Vertical extrusion top right outside cut 41” Horizontal extrusion Horizontal Placement 41”... - Page 4 Step 2 Order #XXXXX - VK-1122 Backwall Attachments 866.652.2100 Steps: 1) Attach A10 Clips and wing graphics as shown in Wing Attachment detail. When assembled 2) Connect stand off barrels to backwall then attach circle graphic as shown in Graphic Attachment detail.
- Page 5 Step 3 Order #XXXXX - Pedestal 866.652.2100 Item Qty. Description 1ea. 38” Vertical Extrusion w/ cut 1ea. 38” Vertical Extrusion 18.9” Horizontal Extrusion 1ea. 18” Horizontal Extrusion 20” Horizontal Extrusion 22.5” Curved Extrusion 10-11 1ea. 18” Horizontal Extrusion 20” Horizontal Extrusion Counter Steps: 1) Attach lower horzontals [5,6,7,8] between...
