Summary of Contents for Classic Exhibits SEGUE DESIGNS VK-1970

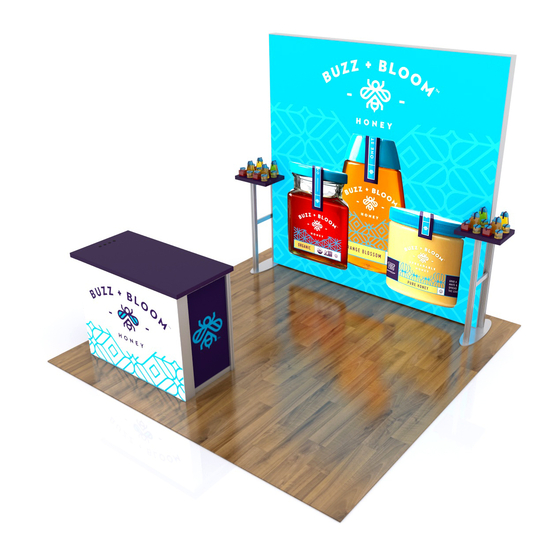

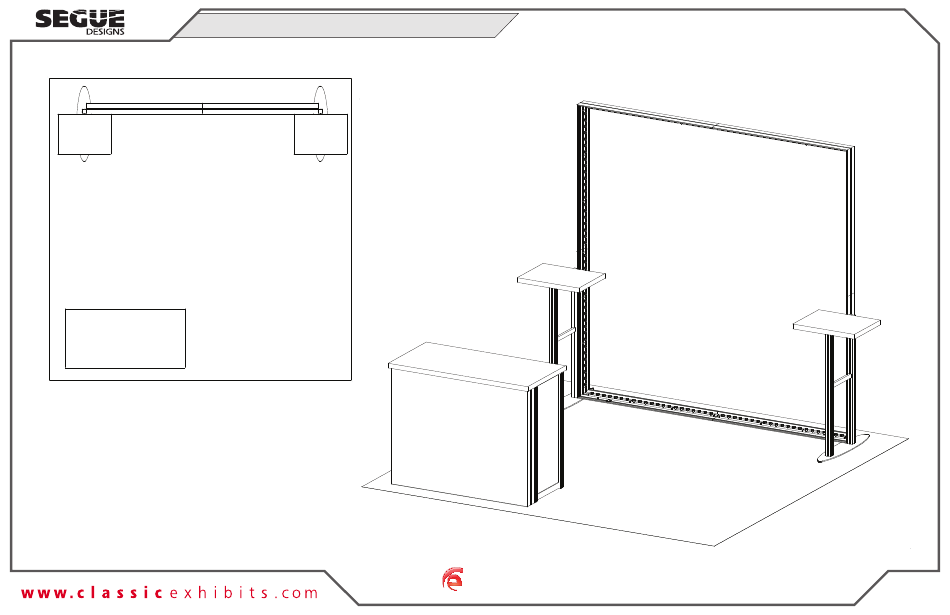

- Page 1 © 2017 Order #XXXXX VK-1970 Supernova General Layout 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2017 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2017 Order #XXXXX SEG Graphic Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert graphic into each alternate Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, To remove the graphic from...
- Page 4 © 2017 Order #XXXXX CEI-110 Frames Assembly Straight Connection CEI-110 Frames Assembly TS RV 4 Insert Bracket Slide connecting Bracket into the Interior extrusion over Straight Bracket Installation Center Slot exposed end (when required) of extrusion. of bracket. 1) Slide TWO-PIECE TS RV 4 straight bracket into Interior Center Slot of extrusion so that two of the...
- Page 5 © 2017 Case Packing Order #XXXXX Top View of Each Level Graphic 8A,8A Setup Hardware 6A,7A Base Plates Level 1 Level 2 Level 3 Case 1 of 3...
- Page 6 © 2017 Case Packing Order #XXXXX Top View of Each Level Counter Top Door Door Blocker Fabric Level 1 Level 2 Level 3 Level 4 Case 2 of 3...
- Page 7 © 2017 Case Packing Order #XXXXX Top View of Each Level Shelf Assembled Assembled Shelf Counter Counter Side Side Shelf Level 1 Level 2 Level 3 Level 4 Case 3 of 3...
- Page 8 © 2017 Order #XXXXX VK-1969 Backwall Assembly Item Qty. Description Base Plate 2/2A 46” CEI-110 Horizontal Extrusion 3/3A 46” CEI-110 Horizontal Extrusion 4/4A 46” CEI-110 Horizontal Extrusion 5/5A 46” CEI-110 Horizontal Extrusion 6/6A 40” S44 Vertical Extrusion Power Break Steps: 1) Attach base plates [1] to vertical extrusions [2] and [3], using bolts.
- Page 9 © 2017 Order #XXXXX VK-1969 Backwall Attachments Item Qty. Description 7/7A 40” S44 Vertical Extrusion 8/8A 12” Z32 Horizontal Extrusion 8” Z32 Horizontal Extrusion Steps: 1) Attach horizontal extrusions [8] and [8A] to vertical extrusions [7] and [7A], making sure tops of [8A] are at tops of [7] and [7A]. 2) Attach extrusions [8] and [8A] to Backwall vertical extrusions [4] and [5].
- Page 10 © 2017 Order #XXXXX MOD-1700 Counter Assembly Item Qty. Description Steps: 1/1A 46.25” CEI-110 Horizontal Extrusion 1) Assemble Frame Extrusions [1,1A,2,2A]. See CEI-110 Frame Assembly page. 2/2A 37.5” CEI-110 Vertical Extrusion 2) Connect Lights and Transformer. See Light to Light Connection 3/3A 37.5”...
- Page 11 © 2017 Order #XXXXX MOD-1700 Counter Assembly (Cont’d) Steps: 1) Connect Light Blocker to Velcro on interior of assembled Frame. 2) Attach assembled Frame to Verticals [3] & [3A]. Frame Attachment detail. 3) Install SEG Graphic to front of assembled Frame. SEG Graphic Installation detail.
