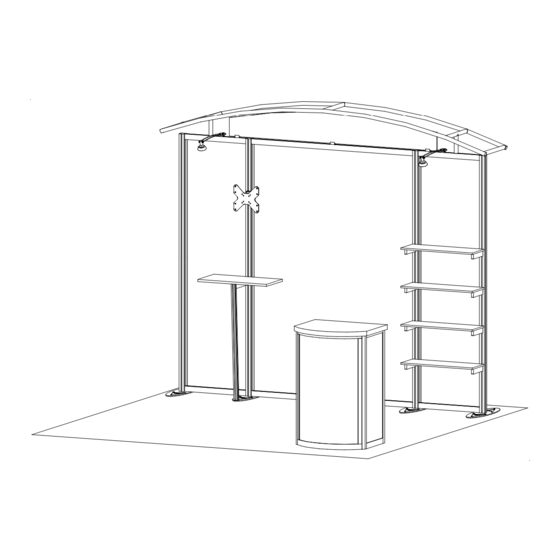

- Page 1 © 2023 Order #XXXXX VK-1341 - 10’ x 10’ Hybrid Inline 10’ 10’ Top View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX Plan View = 1 sq foot...
- Page 3 © 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 4 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 5 © 2023 Order #XXXXX Backwall Assembly Item Qty. Description Steps: Base Plate 1) Connect vertical extrusions [2-2A], [3-3A], [4-4A], [5-5A] together. 2,2A 42” S44 Vertical Extrusion w/ PR37 S44 Connection detail. 3,3A 42” S44 Vertical Extrusion w/ PR37 2) Attach base plates [1] to vertical extrusions, using bolts. 4.4A 42”...
- Page 6 © 2023 Order #XXXXX Canopy Assembly Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. We encourage you to review the instructions before attempting to assemble your exhibit.
- Page 7 © 2023 Order #XXXXX Backwall Attachments A10 Clamp Steps: Item Qty. Description 1) Attach clamps to [7] [9/9A] and [11]. See A10 Clamp detail. 38.414” S40 Angled Extrusion Tighten set screw to secure A10 to extrusion. Clamp header to top of assembed backwall. 2) Attach lights, where desired, to top of assembled backwall.
- Page 8 © 2023 Order #XXXXX MOD-1267 Pedestal Assembly Item Qty. Description Steps 38“ GS220 Vertical Extrusion w/ Door Hinges 1) Attach horizontal extrusions [5] and [7] between assemblies [1,4,6,6A] and [2,3,6,6A], 38” GS220 Vertical Extrusion w/ Door Stop making sure Velcro is facing inward. 38“...
