Summary of Contents for Classic Exhibits VISIONARY DESIGNS VK-1340

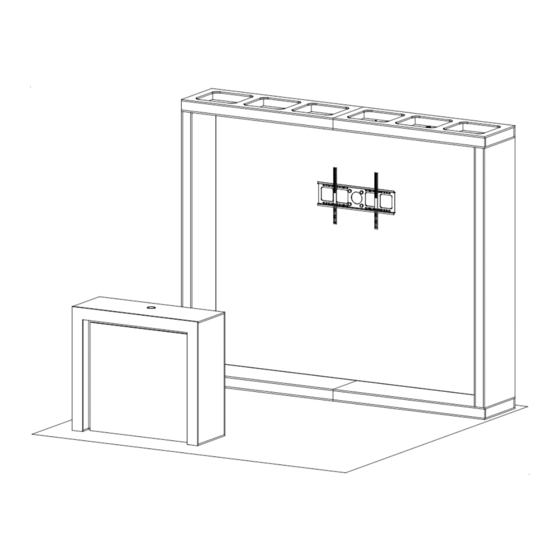

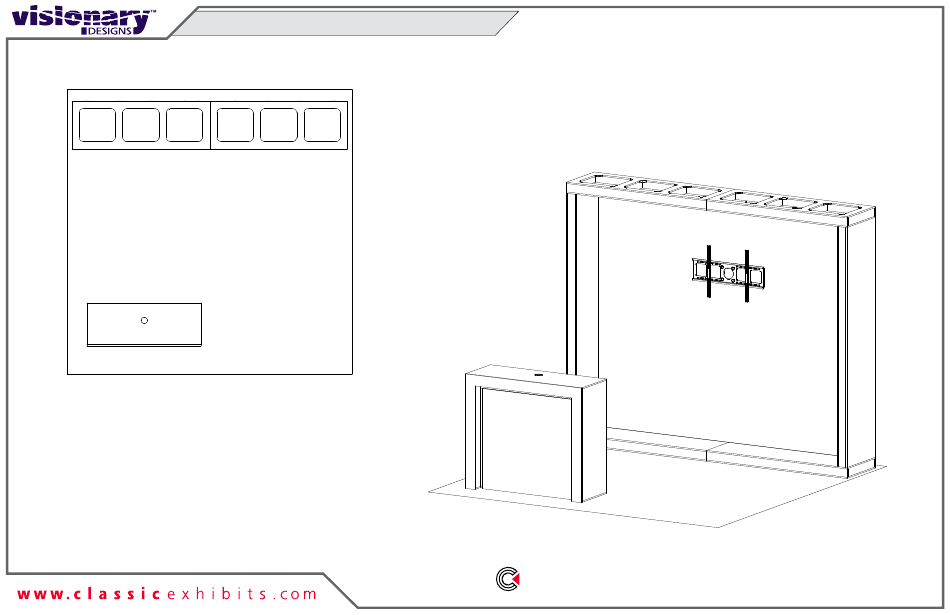

- Page 1 © 2023 Order #XXXXX VK-1340 Custom Lightbox 10’ 10’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX Plan View = 1 sq foot...
-
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX CEI110 Frame Assembly Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
- Page 5 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 7 © 2023 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 88”h CEI110 Vertical Extrusion 1) Connect horizontals [3A to 3B] and [4A to 4B]. 88”h CEI110 Vertical Extrusion CEI-110 Straight Connection detail. 3A,3B 54”w CEI110 Horizontal Extrusion 2) Attach horizontal assemblies [3A/3B] and [4A/4B] between verticals [1] and [2]. 4A,4B 54”w CEI110 Horizontal Extrusion CEI-110 Corner Connection...
- Page 8 © 2023 Order #XXXXX Backwall Assembly (cont’d) Cam Lock Connection Item Qty. Description Steps: D/D1 53”w x 20“d x 4” Wood Ceiling 1) Assemble wood panels as shown. See Cam Lock Connection detail. E/E1 88”w x 20“d x 4” Wood Ceiling 2) Attach assembled lightbox to wood panels using washers &...
- Page 9 © 2023 Order #XXXXX MOD-1563 Reception Counter Steps: 1) Attach transformer. See Light to Light Connection & Light to Transformer Connection details. 2) Route cord thru hole in base of counter then connect to power. Light to Light Connection Female Male Lights Light to Transformer Connection...
