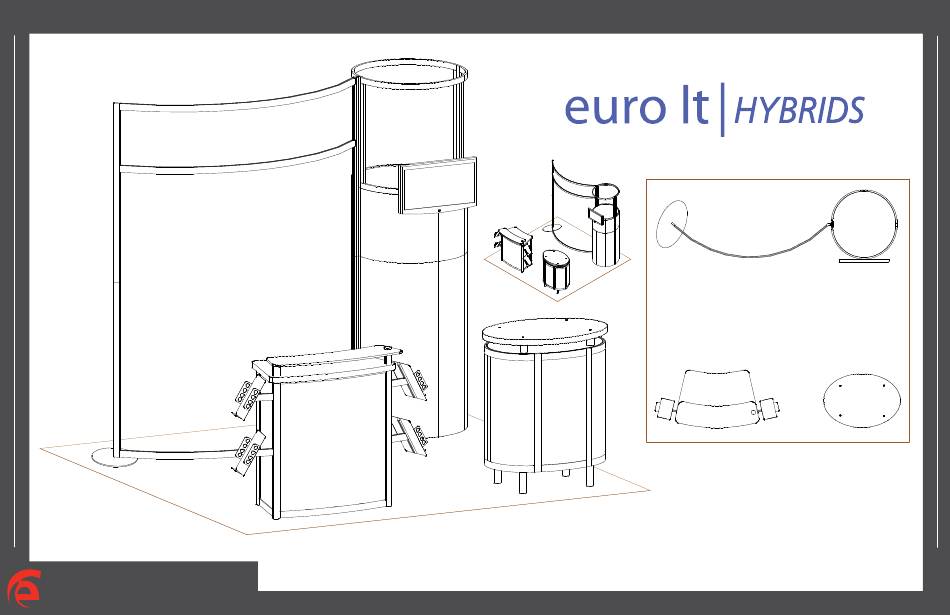

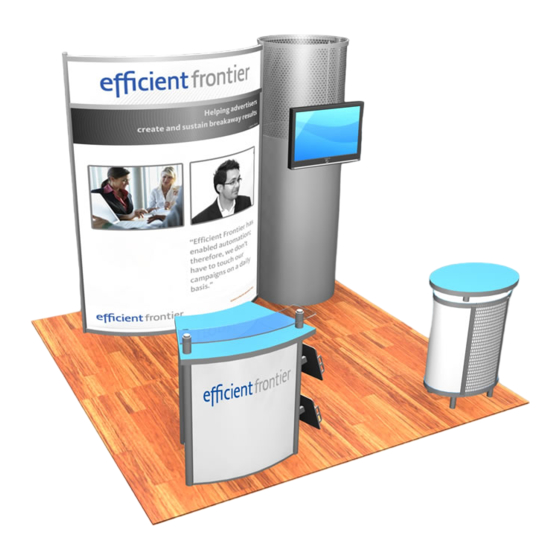

- Page 1 Step 1 Order #XXXXX - General Layout 866.652.2100 10’ 10’ Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2011 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 6...
- Page 2 Step 2 General Setup Instructions Order #XXXXX - 866.652.2100 Level 1 = Blue Panel Lock Level 2 = When Required Level 3 = Green Level 4 = Black Panel Lock When Required With Right Hand Thumb Using Your Setup Instructions Close to Seam Color Coded Clip Left Hand...
- Page 3 Step 1 Order #XXXXX - Euro LT Panel - Level 1 866.652.2100 Level 1 Item Number Description 47.5”h x 15”r Curve Panel 47.5”h x 15”r Curve Panel 47.5”h 180° Connector 47.5”h x 15”r Curve Panel 47.5”h x 15”r Curve Panel 47.5”h 180°...
- Page 4 Step 2 Order #XXXXX - Euro LT Panel - Level 2 866.652.2100 Level 2 Description Item Number 18.5”h x 15”r Curve Panel 18.5”h x 15”r Curve Panel 18.5”h 180° Connector 18.5”h x 15”r Curve Panel 18.5”h x 15”r Curve Panel 18.5”h 180°...
- Page 5 Step 3 Order #XXXXX - Euro LT Panel - Level 3 866.652.2100 Level 3 Steps: Item Number Description Assemble panels together by starting at panel #2 30”h Curve Window Panel w/ Perforated Infill and continue in numerical order. 30”h 180° Connector 30”h Curve Window Panel w/ Perforated Infill Attach pins to lower inner side of window frame 30”h 180°...
- Page 6 Step 4 Order #XXXXX - Backwall Assembly 866.652.2100 Item Qty. Description Monitor Mount Attachment Extrusion #3 and connectors Base Plate MUST stay assembled. 95.751” Vertical Extrusion 95.751” Vertical Extrusion 77.698” Curve Horizontal Extrusion 77.698” Curve Horizontal Extrusion 77.698” Curve Horizontal Extrusion Attach back plate to round tower Vertical Extrusion Assembly using screws.
- Page 7 Step 5 Order #XXXXX - Pedestal Assembly 866.652.2100 Steps: Item Quantity Description 1) Attach lower horizonal extrusions [13, 14 and 15] between vertical extrusions 42”h Round Vertical Extrusion [9, 10, 11 and 12] as shown. 38”h Round Vertical Extrusion w/ Door Stopper 2) Place inserts and attach door where indicated.
- Page 8 Step 6 Order #XXXXX - Oval Pedestal Assembly 866.652.2100 Steps: Item Quantity Description 1) Attach lower horizontal extrusions [18 and 19] between vertical 32”h Vertical Extrusion extrusions [17, 22 and 23] as shown. 28.77” Curve Horizontal Extrusion 2) Place inserts and attach door where indicated. 13.6”...
