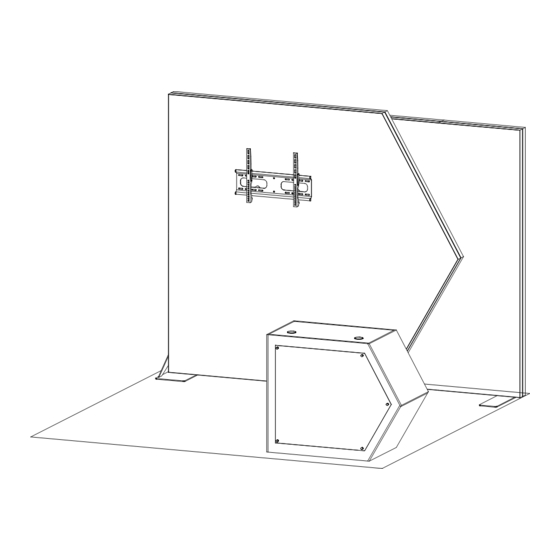

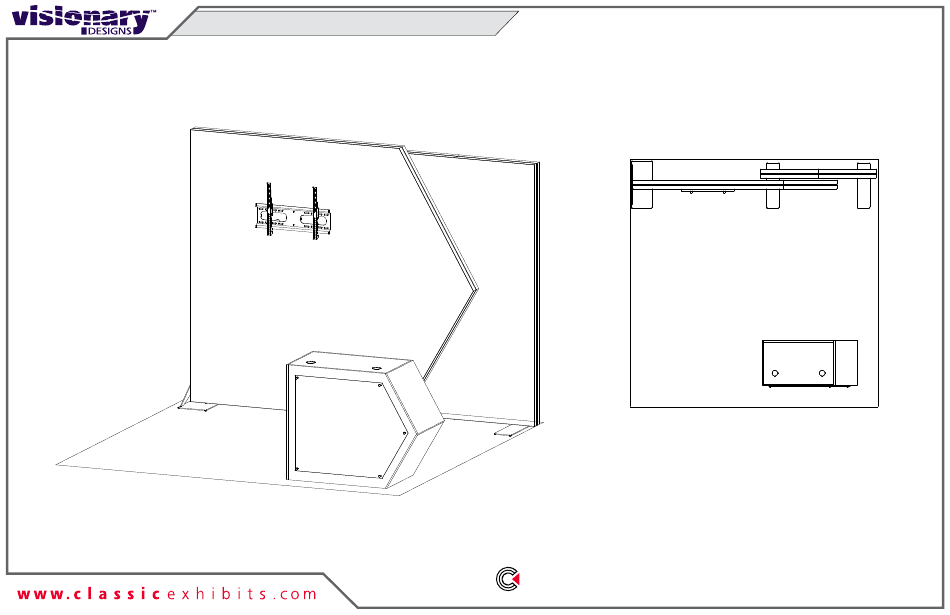

- Page 1 © 2023 Order #XXXXX VK-1131 - 10’ x 10’ Display 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 5...
- Page 7 © 2023 Order #XXXXX Middle Frame Assembly Item Qty. Description Steps: 87”h CEI110 Vertical Extrusion Refer to the CEI-110 Frame Assembly general information page. 87”h CEI110 Vertical Extrusion 28”w CEI110 Horizontal Extrusion 1) Assemble horizontals [3-5] & [6-8] together. 74”w CEI110 Horizontal Extrusion 2) Connect verticals [1,2] between horizontal assemblies [3/5] &...
- Page 8 © 2023 Order #XXXXX Lightbox Wiring Steps: 1) Connect power cords to Supernova lights, as shown. Power Break Light to Light Attachment Male Lights Light to Transformer Attachment Female Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain, 11 lights per Transformer Transformer Transformers...
- Page 9 © 2023 Order #XXXXX Left Frame Assembly Item Qty. Description Steps: 90”h CEI110 Vertical Extrusion Refer to the CEI-110 Frame Assembly general information page. 51.962” CEI110 angled Extrusion 51.962” CEI110 angled Extrusion 1) Assemble angled extrusions [2-3] together using custom angle 73.019”w CEI110 Horizontal Extrusion corner connector.
- Page 10 © 2023 Order #XXXXX Frames Connection Item Qty. Description Steps: 1” Standoff Barrel w/ V20 Refer to the SEG Installation general information page. 3.5” Standoff Barrel 1) Apply SEG Graphic to front of Lightbox assembly. 2) Attach 1” Standoff Barrels to vertical [10] of Lightbox assembly. Standoff Barrel Attachment Standoff Barrel Attachment detail.
- Page 11 © 2023 Order #XXXXX MOD-1589 Reception Counter wireless chargers Item Qty. Description Steps: 3.5” Standoff Barrel w/ cap 1) Connect power cords to Supernova lights inside Counter Unit. 2) Attach power cords to wireless chargers in counter top. 3) Connect graphic to front of Counter, using standoffs & caps. Graphic Attachment detail.
