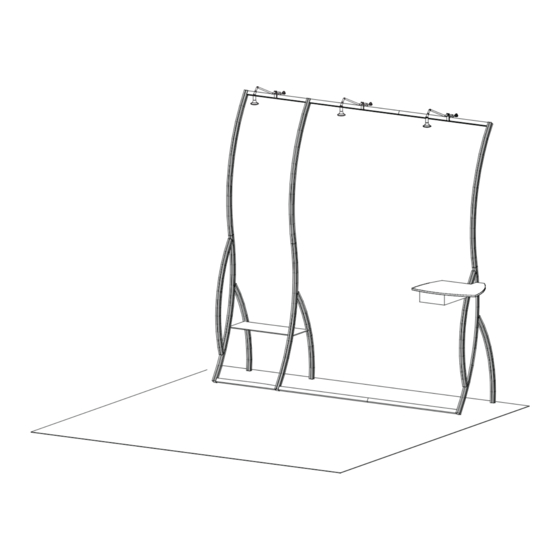

- Page 1 Step 1 Order #xxxxx - p10 - Bella - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING © 2008 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 3...
- Page 2 Step 1 Order #xxxxx - p10 - Bella - Backwall Assembly 866.652.2100 Part Number Description Left Leg Assembly w/ A10 Clamps Attached Middle Leg Assembly NOTE: When assembling horizontals they should Upper Curved Vertical w/ A10 Clamps Attached be placed approximately one inch from TOP and BOTTOM. Upper Curved Vertical Step 1 23”w Horizontal...
- Page 3 Step 2 Order #xxxxx - p10 - Bella - Backwall Assembly 866.652.2100 Part Number Description Right Leg Assembly w/ A10 Clamps Attached NOTE: When assembling horizontals they should be placed approximately one inch from TOP and BOTTOM. Upper Curved Vertical 69”w Horizontal w/ Hinge Facing UP Step 2 69”w Horizontal w/ Hinge Facing DOWN...
- Page 4 Step 3 Order #xxxxx - p10 - Bella - Light, Cubby and Shelf Placement 866.652.2100 Light Connection Attach Lights to Backwall where desired and tighten in place. Accessary Attachment Cubby Attachment Shelf attaches to section Shelf attaches to back of 5 by setting atop pins sections 1 and 2 by setting located on right side...
- Page 5 Order #xxxxx - p10 - Case Packing - Case 1 of 2 866.652.2100 Case #1 - Backwall Components Top View of each Level Vertical Connection Bar Level 1 Level 4 Level 3 Level 2 Vertical Connection Bar WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING ©...
- Page 6 Order #xxxxx - p10 - Case Packing - Case 2 of 2 866.652.2100 Case #2 - Backwall Components Top View of each Level Backside Shelf Wings Cubby Level 2 Level 1 WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING ©...
