Step 1

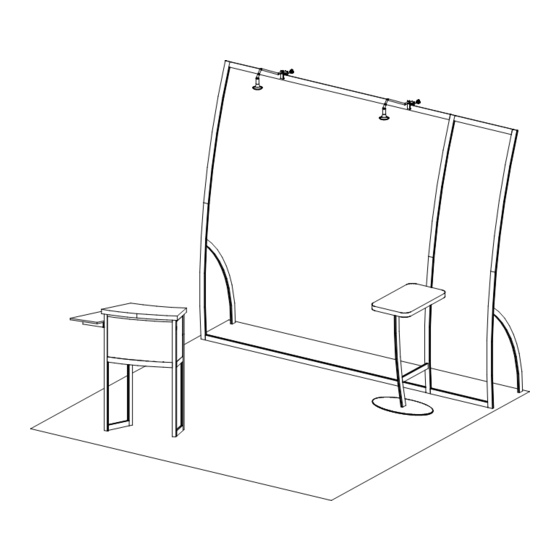

Order #XXXXX - VK-1091 - Magellan Miracle - General Layout
866.652.2100
10'
Plan View
10'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Classic Exhibits Magellan Designs VK-1091
Summary of Contents for Classic Exhibits Magellan Designs VK-1091
- Page 1 Step 1 Order #XXXXX - VK-1091 - Magellan Miracle - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 3...
- Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Typical Connection Typical Connection Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Magellan displays are created specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
-
Page 3: Back View
Step 1 Order #XXXXX - Backwall Assembly 866.652.2100 GREEN STAR indicates location Part # Description of connection lock with knob. 48.5” Lower Curved Extrusion 48.5” Upper Curved Extrusion Light Connection 48.5” Lower Curved Extrusion FRONT 48.5” Upper Curved Extrusion Attach lights to VIEW 48.5”... - Page 4 Step 2 Order #XXXXX - Backwall Workstation Assembly 866.652.2100 Part Number Description Base Plate 37.6”h Curved Vertical Extruaion Oval Flange Plate 18.5”w Horizontal Extrusion 15.69”w Horizontal Extrusion Steps 1) Attach curved vertical [14] to base plate [13], see Base Plate Attachment detail. 2) Attach horizontal extrusions [15 and 16] between Counter Top Attachment curved vertical [14] and backwall vertical [3]...
- Page 5 Step 3 Order #XXXXX - MOD-1238 Pedestal Assembly 866.652.2100 Part Number Description 41.5” Vertical Extrusion 41.5” Corner Extrusion 41.5” Corner Extrusion 41.5” Vertical Extrusion 21/21a 11” Horizontal Extrusion 24.875” Horizontal Extrusion 9” Horizontal Extrusion Steps 1) Attach horizontal extrusions [21 and 21a] between vertical extrusions [17&18 and 19&20], see Top View for extrusion orientation.
- Page 6 Order #XXXXX - Packing Instruction - Case 1 of 2 866.652.2100 Top View Additional Items: Halogen Lights Extrusion 16 Graphic Setup Hardware Backwall Base Counter Plate Extrusion 15 Flange Plate Connectors Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 7 Order #XXXXX - Packing Instruction - Case 2 of 2 866.652.2100 Top View Case 2: Workstation components Workstation Counter (x2) (x2) Level 1 (Bottom) Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
