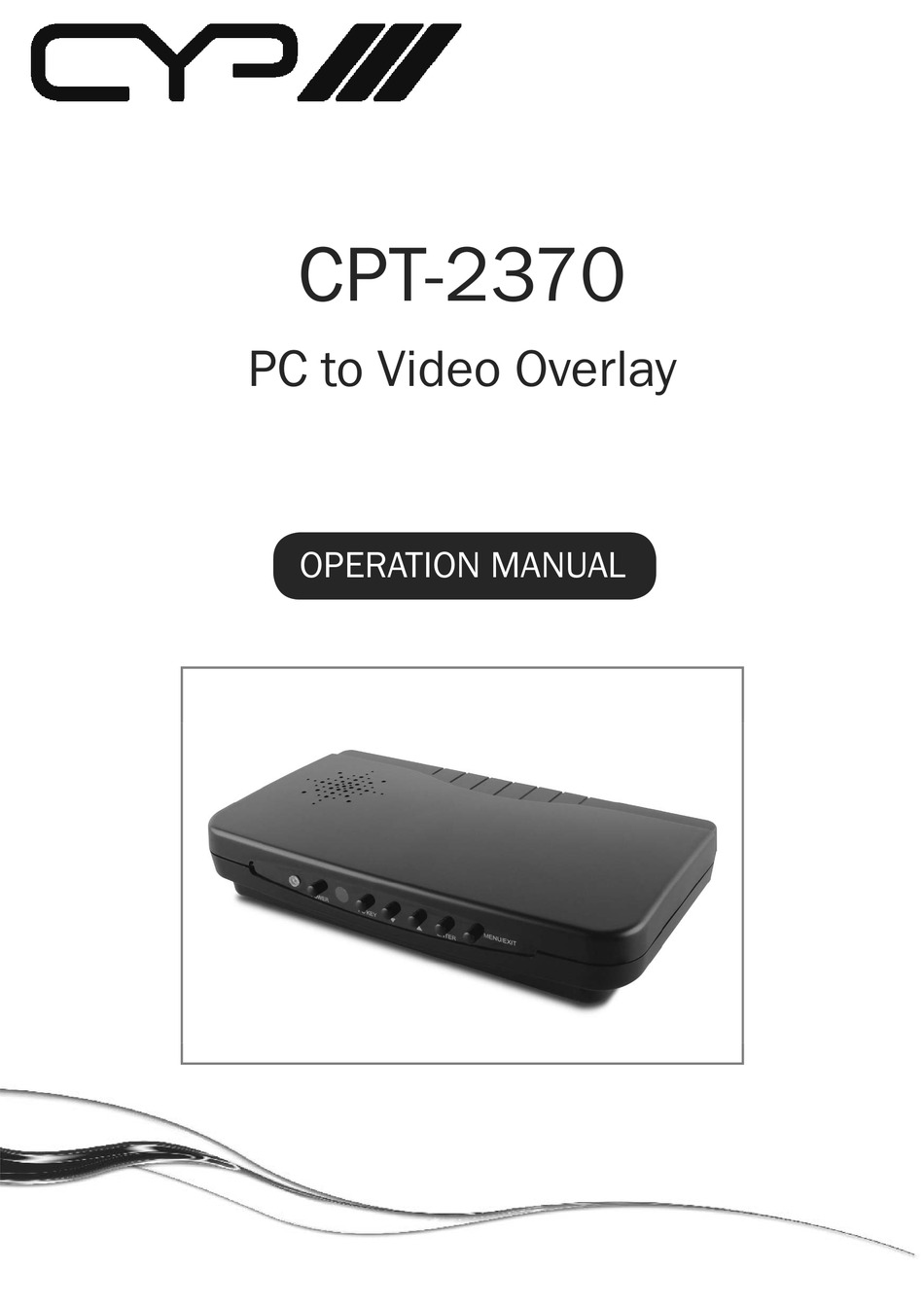

  • Page 1 &37 3& WR 9LGHR 2YHUOD\ 23(5$7,21 0$18$/...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: ‡ $OZD\V IROORZ EDVLF VDIHW\ SUHFDXWLRQV WR UHGXFH WKH ULVN RI ÀUH electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 RS-232 Protocols .......6 6.5 RS-232 Commands ......6 7.

  • Page 5: Introduction

    1. INTRODUCTION The PC to Video overlay system is designed to overlay PC/ Graphics signal onto Video signal or vise versa. Moreover, it can convert a variety of VGA sources to Video signal. It is idea for using in applications like video conference, home theater, business presentation and lecturing room.

  • Page 6: Features

    5. FEATURES ‡ 6XSHULPSRVH 3& WH[W DQG JUDSKLFV RQWR DQRWKHU YLGHR VLJQDO 2U superimpose Video signal onto VGA source. ‡ Supports VGA to Video conversion 9*$ [ [ [ [ [ Video: NTSC, NTSC4.43, PAL, PAL-M, PAL-N or SECAM ‡ Supports PC & Video picture adjustment ‡...

  • Page 7: Front Panel

    6. OPERATION CONTROLS AND FUNCTIONS The following sections describe the hardware components of the unit. 6.1 Front Panel MENU/EXIT POWER PC KEY ENTER POWER LED INDICATOR The LED will illuminate when power is on. POWER Press to power on the system, press again to turn the system to standby.

  • Page 8: Rear Panel

    6.2 Rear Panel INPUT OUTPUT PC IN PC OUT V IN S IN V OUT S OUT DC 5V RS-232 S IN V IN RS-232 Connect 3.5mm phone jack to D-Sub 9pin adaptor to the PC/ Notebook device for RS-232 control. PC INPUT Connect the input source equipment such as PC/NB for PC signal input.

  • Page 9: Remote Control

    6.3 Remote Control POWER Press to turn ON/OFF the OSD V IN PC IN PC KEY on the display. POWER Press to power ON or to Standby for the system. V IN ZOOM MENU/EXIT Press to select Video input source. Depending on the S/ V IN switch the output display RESET RESET...

  • Page 10: Rs-232 Protocols

    6.4 RS-232 Protocols 3LQV GHÀQLWLRQ RI PRGHP FDEOH Video Scaler Remote Controller 'HÀQLWLRQ 'HÀQLWLRQ Baud Rate: 9600bps 'DWD ELW  ELWV Parity: None Stop Bit: 1 Flow Control: None 6.5 RS-232 Commands Command Description [POWER1] power on(normal) [POWER0] SRZHU RII VWDQGE\ [KEY0] Chroma Key--Blue [KEY1]...
  • Page 11 [OUTPUT2] output mode--PC KEY [OUTPUT3] output mode--CV KEY [OUTPUT4] output mode--MIXER [SYSTEM0] output video system :NTSC [SYSTEM1] output video system :NTSC4.43 [SYSTEM2] output video system :PAL [SYSTEM3] output video system :PALM [SYSTEM4] output video system :PALN [SYSTEM5] output video system :SECAM [OSD0] 26' RII [OSD1]...
  • Page 12 [ZOOMD] PC PAN down [PANEL0] Front panel lockout on [PANEL1] )URQW SDQHO ORFNRXW RII [CVCONTx] video Contrast x=0~63 video Brightness x=0~63 [CVBRIGHTx] video Color x=0~63 [CVCOLORx] video Tint x=0~63 [CVHUEx] video Sharpness x=0~63 [CVDETAILx] Video Adjustment Reset [CVCONT58] [CVBRIGHT31] [CVRESET] [CVCOLOR31] [CVHUE31] [CVDETAIL10]...
  • Page 13 PC aspect reset [PCHSIZE31] [PCVSIZE31] [ASPECTRS] [PCHPOS31] [PCVPOS31] [PCPHASE?] [KEYPHASEx] KEY Adjust Phase x=0~63 [KEYLEVELx] KEY Adjust Level x=0~63 KEY adjustment reset [KEYRESET] [KEYPHASE31] [KEYLEVEL31] Remote Code adjustment reset [RMCODEx] Remote Code x=0~3...
  • Page 14 Retrieve video scaler all status [POWER?] [KEY?] [OUTPUT?] [SYSTEM?] [ZOOM?] [OSD?] [DISPLAY?] [PANEL?] [RMCODE?] [PCCONT?] [PCBRIGHT?] [PCCOLOR?] [PCHUE?] [STATUS] [PCDETAIL?] [PCHSIZE?] [PCVSIZE?] [PCHPOS?] [PCVPOS?] [PCPHASE?] [CVCONT?] [CVBRIGHT?] [CVCOLOR?] [CVHUE?] [CVDETAIL?] [KEYPHASE?] [KEYLEVEL?] [ZOOMC?] $OO 56 FRPPDQG ZLOO EH QRW H[HFXWHG XQOHVV IROORZHG ZLWK D carriage return.

  • Page 15: Osd Menu And Function List

    7. OSD MENU AND FUNCTION LIST Main Menu 2nd Layer &2175$67 a  'HIDXOW  %5,*+7 a  'HIDXOW  &2/25 a  'HIDXOW  PC PICTURE +8( a  'HIDXOW  '(7$,/ a  'HIDXOW  RESET EXIT + 6,=( a  'HIDXOW  9 6,=( a  'HIDXOW  + 326,7,21 a  'HIDXOW  9 326,7,21 a  'HIDXOW  PC ASPECT...
  • Page 16 .(< 3+$6( a  'HIDXOW  .(< /(9(/ a  'HIDXOW  CHROMA KEY: (RED/BLACK/BLUE/ KEY ADJUST GREEN)*Reset will not change this setting RESET Exit OUTPUT: PC IN/VIDEO IN/PC KEY/ MIXER*3 CV SYSTEM: NTSC/NTSC4.43/PAL/ PAL-M/PAL-N/ SECAM SETUP PC ZOOM: 1 ~9/OFF DISPLAY: INFO/OFF/ON REMOTE 0~3 Exit PC INPUT/CV INPUT/OUTPUT/...

  • Page 17: 6Shflàfdwlrqv

    8. SPECIFICATIONS S-Video Bandwidth 0+] Input Format  [  XS WR +]  [  XS WR +]  [  XS WR +]  [  XS WR +]  [  XS WR +] NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM Input Port  [ 3&...

  • Page 18: Connection And Installation

    9. CONNECTION AND INSTALLATION INPUT OUTPUT PC IN PC OUT V IN S IN V OUT S OUT DC 5V RS-232 S IN V IN PC or Note Book/MAC VGA Monitor TV (N/P/S)

  • Page 19: Acronyms

    10. ACRONYMS ACRONYM COMPLETE TERM...
