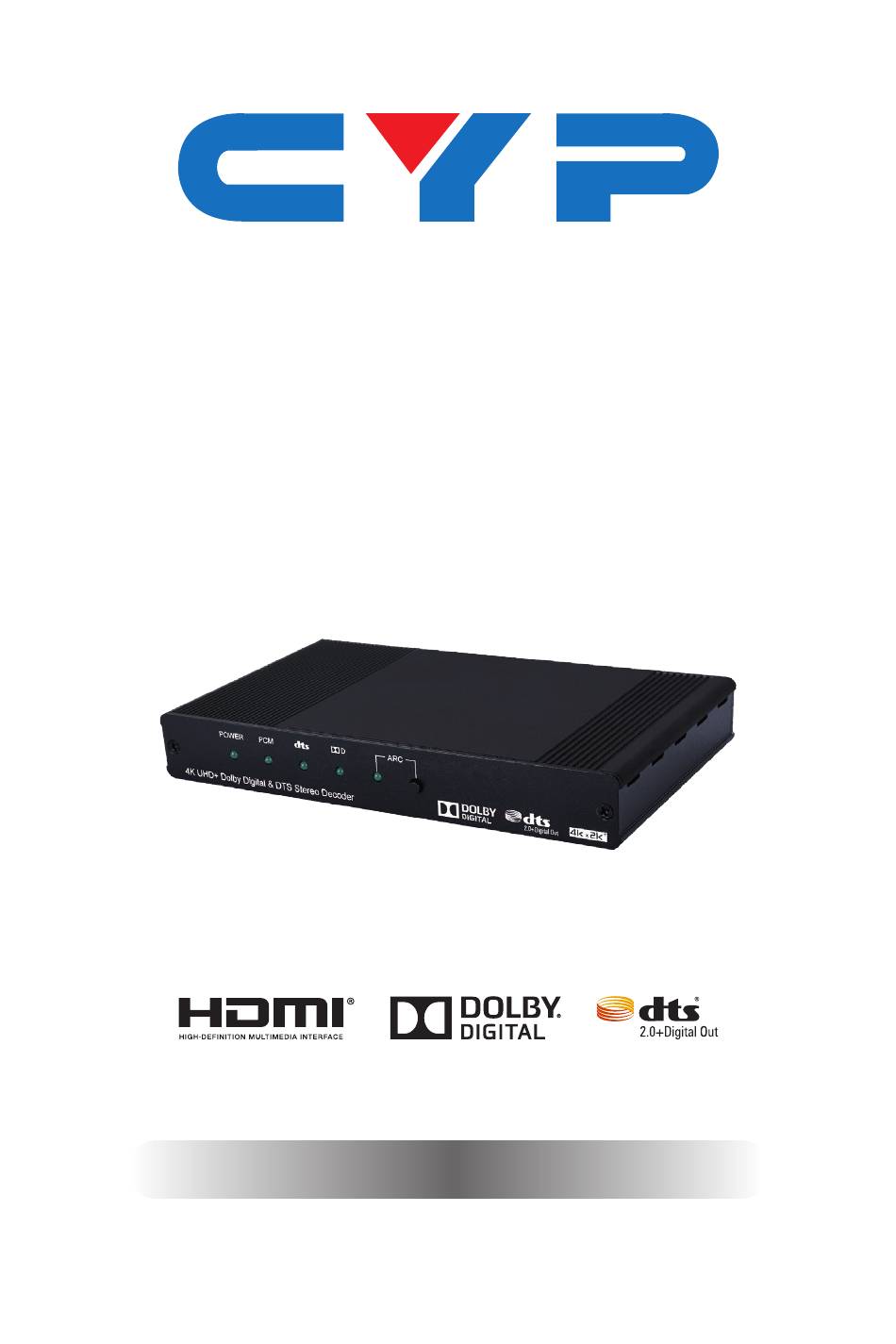

- Page 1 CPLUS-VPE2DD 4K UHD HDMI Dolby Digital & DTS Stereo Decoder Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Virtual COM Port Control ......5 6.4 EDID Commander ........ -
Page 6: Introduction
1. INTRODUCTION This HDMI Dolby Digital & DTS Stereo Decoder supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance. -
Page 7: Features
• HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • Audio receiving equipment such as an audio amplifier or powered speakers. • The use of “Premium High Speed HDMI” cables is highly recommended. 5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support •... -
Page 8: Operation Controls And Functions

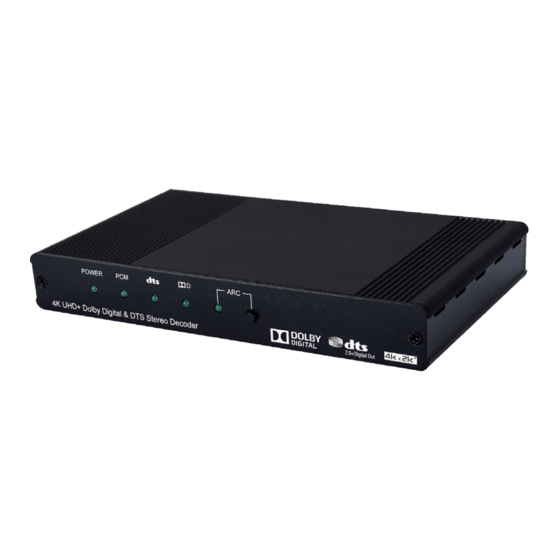

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER 4K UHD+ Dolby Digital & DTS Stereo Decoder POWER: This LED will illuminate to indicate the unit is on and receiving power. PCM: This LED will illuminate when LPCM audio is detected on the HDMI input. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V COAX BYPASS/ BYPASS/ STD/ OPTICAL HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. -
Page 10: Virtual Com Port Control
96kHz, Dolby Digital (5.1 channel) and DTS (5.1 channel). SERVICE: This slot is for EDID management, control and firmware update use. Connect directly to your PC/laptop using a standard Mini-USB cable to connect using the PC software or to send commands (via virtual COM port). - Page 11 COMMAND DESCRIPTION & PARAMETERS ECHO N1 Set the console text echo mode behavior. Available values for N1: [Text echoing is off] [Text echoing is on] ECHO ? Show the current text echoing mode. FADEFAULT Reset the unit to the factory defaults. Show the unit’s current firmware version.
-
Page 12: Edid Commander
6.4 EDID Commander (1) This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. -
Page 13: Edid Creator Tab
• Save/Upload/Analysis: EDIDs may be saved to a PC, uploaded from a PC or analyzed. - Save: Any EDID from the unit or the connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “... -
Page 14: System Tab
• Edit: The following tabs provide access to a wide range of EDID information which can be edited: - Descriptor: This tab allows for the editing of various description and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. - PC Timing &... -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM 4K Media Player HDMI Input Virtual COM Port Enabled PC AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V COAX BYPASS/ BYPASS/ STD/ OPTICAL Power Supply ARC Input HDMI Output S/PDIF Outputs (Downmixed or (Downmixed or Bypassed) Bypassed) -
Page 16: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Ports 1×HDMI 1×Optical (S/PDIF) 1×Coaxial (S/PDIF) 2×RCA (Stereo) Control Interface 1×USB Mini-B HDMI Cable Length 10m (1080p@60Hz, 12-bit) 3m (4K@60Hz, 4:4:4, 8-bit) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection... -
Page 17: Video Specifications
8.2 Video Specifications Standard Resolution Support Input Output 640×480 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1280×720 50, 60 1280×768 60, 75, 85 ... -
Page 18: Audio Specifications
8.3 Audio Specifications Input/Output Audio Analysis: Input Connector Measurement HDMI Level 0dBFs Frequency 1kHz Output Connector Measurement HDMI Optical Coaxial Analog Output Level 0~−1dB 2Vrms±10% THD+N <0.01% <0.01% Frequency ±1dB ±1dBFs Response >80dB >80dB Crosstalk <−80dB <−80dB Audio Sampling Rates: HDMI 32, 44.1, 48, 88.2, 96kHz (Passthrough) 48kHz (Docoded) -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Three-Dimensional Audio Return Channel Consumer Electronics Control Communication Digital-to-Analog Converter Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Light-Emitting Diode LPCM Linear Pulse-Code Modulation Personal Computer S/PDIF Sony/Philips Digital Interface Format... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
