Summary of Contents for CYP CPLUS-SDI2H-W CPLUS-SDI2H
- Page 1 CPLUS-SDI2H-W CPLUS-SDI2H 12G-SDI to HDMI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 7. Connection Diagram ........5 8. -
Page 6: Introduction
1. INTRODUCTION This 12G-SDI to HDMI Converter allows SDI signals up to 4K UHD to be converted for display on standard HDMI video displays. This makes it easier for professionals to monitor or output professional SDI video production sources on standard, relatively low-cost, HDMI displays while allowing the original SDI signal to continue to be looped on to other SDI equipment in their production environment. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • 1 SDI video input • 3 mirrored outputs (2×HDMI, 1×12G-SDI) & 1 analog stereo audio output • Supports up to 4K UHD (12Gbps, 4K@50/60Hz 4:2:2, 8-bit) digital video input • SDI input supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10 •... -
Page 8: Operation Controls And Functions

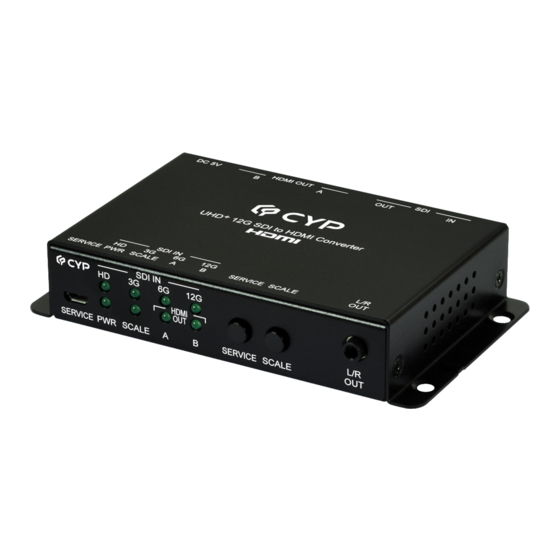

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SDI IN HDMI SCALE SERVICE SCALE SERVICE SERVICE Port: This port is reserved for firmware update use only. SDI IN LEDs: These LEDs will illuminate to indicate the SDI format currently in use on the SDI input. PWR LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 9: Rear Panel
6.2 Rear Panel HDMI OUT DC 5V SDI IN Port: Connect to SDI source equipment such as editing/recording decks, professional cameras, or video broadcast equipment. SDI signals up to 12G-SDI are supported. SDI OUT Port: Connect to SDI receiving equipment such as editing/ recording decks, professional studio monitors, or video broadcast equipment. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Medical Equipment Input HDMI OUT DC 5V HDMI Output Monitor... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps SDI Bandwidth 12Gbps SMPTE Standard Support ST 292-1 Level A ST 425-1 ST 2081-10 ST 2082-10 Input Ports 1×12G-SDI (BNC) Output Ports 1×12G-SDI (BNC) 2×HDMI (Type-A) 1×Unbalanced Stereo Audio (3.5mm) Service Port 1×USB 2.0 (Micro-B) Power Supply 5V/2.6A DC... -
Page 12: Video Specifications
8.2 VIDEO SPECIFICATIONS Input Output Supported Resolutions (Hz) HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 13 Input Output Supported Resolutions (Hz) HDMI 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@23.98/24/25/29.97/30 2048×1080p@50/59.94/60 3840×2160p@23.98/24/25/29.97/30 3840×2160p@50/59.94/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0),HDR10 ...
-
Page 14: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 48, 96 Bitstream Supported Formats None HDMI Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 48, 96 Bitstream Supported Formats None 8.3.2 Analog Audio Analog Input Max Audio Level... -
Page 15: Cable Specifications
8.4 Cable Specifications 720p 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 12-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Output Coaxial SDI Cable (Belden 1694A 6GHz Cable) SDI Input 260m 200m 100m SDI Output 260m 200m 100m Note: SDI cable distance measurements are based on Belden 1694A 6GHz cable. -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) COAX Coaxial Decibel Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Kilohertz Light-Emitting Diode... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
