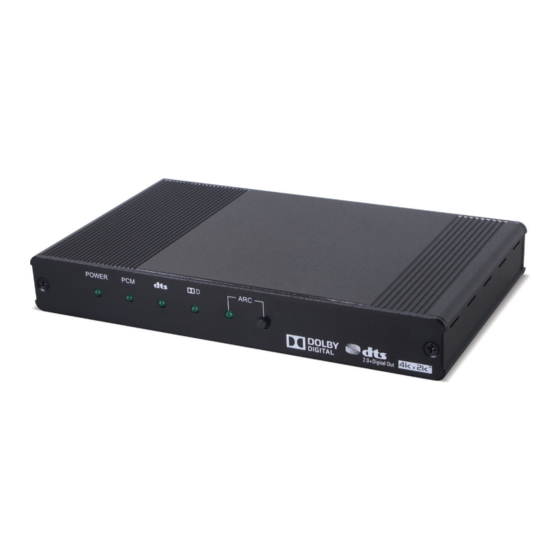

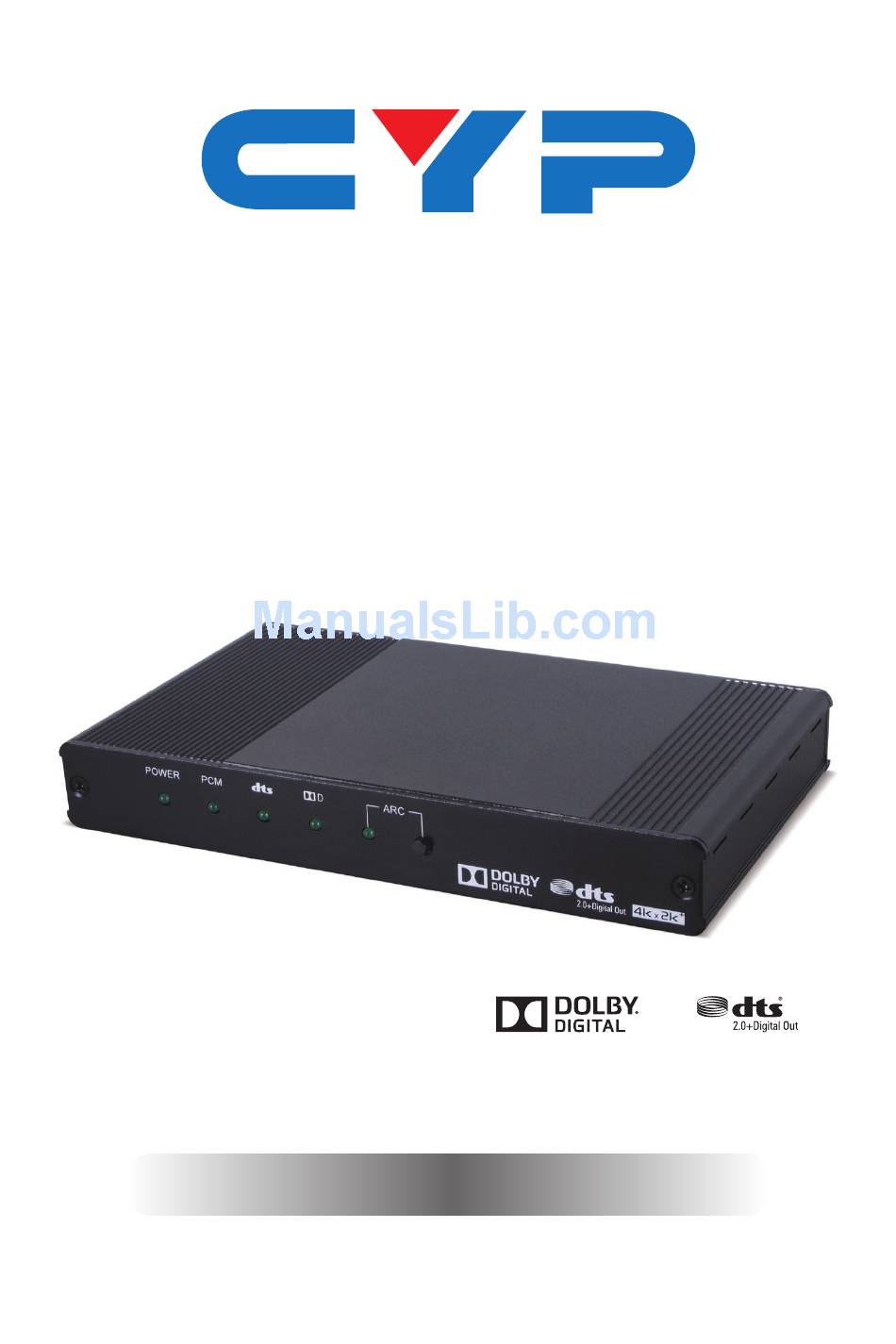

- Page 1 CPLUS-VSE2DD HDMI 2.0 with HDCP2.2 Audio Converter with Dolby Digital and DTS 2.0+ Digital Out Decoder Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........3 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION With support for the transmission of 6G video (resolutions up to 4K2K@60Hz Ultra HD, and HDCP 2.2) through High Speed HDMI cables, ® ® this HDMI Audio Converter with Dolby Digital/DTS 2.0+Digital Out Decoder allows an HDMI audio signal to be de-embedded and simultaneously split to both digital and analog audio outputs providing high quality audio and video performance. -
Page 7: Features
5. FEATURES • HDMI 6G video (resolutions up to 4K2K@60Hz with YUV444) and HDCP2.2 compliant • HDMI 1080p video with 12-bit 'Deep Color', 3D video, and HDCP1.4 compliant • Dolby Digital Decoder technology embedded • DTS 2.0+Digital Out Decoder technology embedded •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER: This LED will illuminate when the unit is connected to an active power supply. PCM LED: This LED will illuminate when the audio source is encoded in LPCM 2CH audio format. DTS LED: This LED will illuminate when the audio source is encoded in DTS 2.0+Digital Out audio format. - Page 9 HDMI OUTPUT: Connect to an HDMI Ultra HD display (TV/monitor) or UHD AV receiver for video and audio output. L/R OUTPUT: Connect to the analog line-level input of an amplifier or active speakers for audio output. COAX OUTPUT: Connect to the digital optical input of an AV receiver for audio output.
-
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V COAX BYPASS/ BYPASS/ STD/ OPTICAL HDMI Analog Stereo Coaxial Digital Optical Digital Bypass Output Audio Output Audio Output Active Speakers AV Receiver... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600 MHz/6 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 1×L/R (2 RCA) HDMI Cable Length Input: 10m@1080p, 3m@4K2K Output: 10m@1080p, 3m@4K2K Power Supply 5 V/2.6 A DC(US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 12: Video Resolutions
8.2 Video Resolutions HDMI/DVI RESOLUTIONS INPUT OUTPUT 640×480@60/72/75/85 720×400@85 800×600@56/60/72/75/85 1024×768@60/70/75/85 1280×720@60 1280×768@60/75/85 1280×800@60 1360×768@60 1440×900@60 1600×900@60 1600×1200@60 1920×1080@60 ... -
Page 13: Audio Specifications
8.3 Audio Support Specification Output Level Crosstalk Input Level/ Frequency Freq. Output Vrms/db±10% THD+N Response SNR >90db <-90dB Analog 2 Vrms < 0.01% ±1 dBFS >104dB <-110dB HDMI Coaxial 0 dB < 0.00001% ±1 dBFS >141dB <-164dB 0dB/1kHz Optical 0 dB <... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
