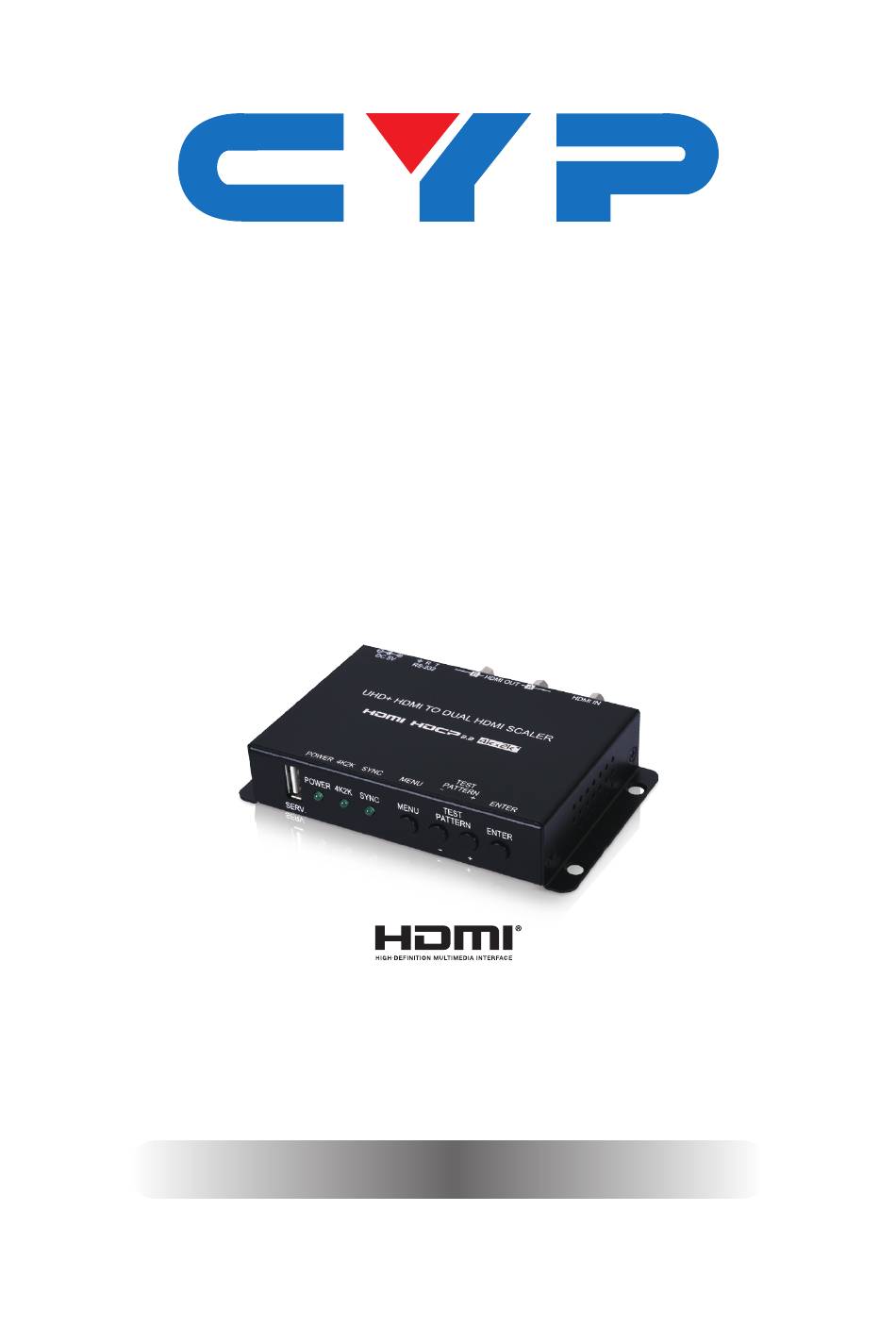

- Page 1 CPLUS-V2PEL 4K UHD HDMI to Dual HDMI Scaler with Signal Event Automation Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 6.4 RS-232 Control ......... 15 6.5 RS-232 Commands ........ -
Page 6: Introduction
1. INTRODUCTION This HDMI 4K UHD Scaler with Test Patterns and Signal Event Automation is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI outputs. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI input source equipment such as a media player, video game console or set-top box. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. -
Page 8: Operation Controls And Functions

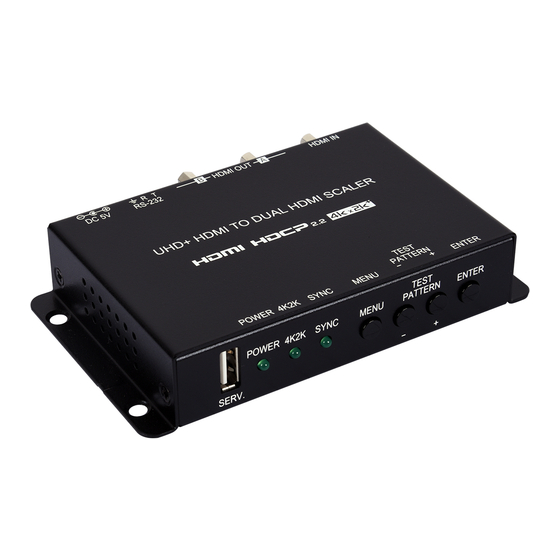

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TEST POWER 4K2K SYNC MENU PATTERN ENTER SERV. SERV.: This slot is reserved for firmware update and EDID upload use only. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI IN HDMI OUT RS-232 HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. Each output can display a different resolution with a choice between the HDMI source or a test pattern. -
Page 10: Osd Menu
6.3 OSD Menu All primary functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu. - Page 11 OUTPUT 2nd Level 3rd Level Input 1080P Up Scaler 4K2K Up Scaler 4K2K YUV 4:2:0 PASS THROUGH Input 4K2K Fix Color YUV 4:2:0 Fix Deep Color 8 bit YUV 4:2:x to RGB Fix Color RGB Up 4K2K Scaler Enhancement Gain Level 1 (Weak) Level 2 LEVEL 3...
- Page 12 Pass Through: Will pass 1080p sources without modification. ■ Up Scaler 4K2K: Will scale all 1080p sources to 4K(4:4:4) at the ■ same frame rate. Up Scaler 4K2K YUV 4:2:0: Will scale all 1080p@50/60Hz sources ■ to 4K(4:2:0) at the same frame rate. 3) Input 4K2K: Controls the scaling of 4K sources on Output B.
- Page 13 HDCP 2nd Level HDCP Support Off Reference to Source REFERENCE TO DISPLAY 1) HDCP: Selects the HDCP logic to use with the HDMI input. 2nd Level 3rd Level Display Information OSD Timeout 5 SEC. 10 Sec. 15 Sec. 20 Sec. 25 Sec.
- Page 14 TEST PATTERN A 2nd Level 3rd Level Mode Auto Pattern Auto Timing WHITE COLOR Pattern Red Color Green Color Blue Color Magenta Color Yellow Color Cyan Color Color Bar Ramp Toggle Resolution 720×480p@60 720×576p@50 1280×720p@50 1280×720P@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 3840×2160p@25 3840×2160p@30 4096×2160p@24 4096×2160p@25...
- Page 15 TEST PATTERN A 2nd Level 3rd Level 10 SEC. Switch Time 20 Sec. 30 Sec. 40 Sec. 50 Sec. 1 Min. 2 Min. 3 Min. 5 Min. Auto Timing Select 720×480p@60 720×576p@50 1280×720p@50 1280×720p@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 3840×2160p@25 3840×2160p@30 4096×2160p@24 4096×2160p@25 4096×2160p@30 1) Mode: Enable or disable the test pattern function on Output A.
- Page 16 2) Pattern: Selects the test pattern to output. 3) Resolution: Selects the output resolution to use. 4) HDCP: Enable or disable HDCP while outputting the test pattern. 5) Switch Time: Select the length of time between pattern or resolution changes in the “Auto Pattern” and “Auto Timing” modes.
- Page 17 TEST PATTERN B 2nd Level 3rd Level Resolution 3840×2160p@25 3840×2160p@30 4096×2160p@24 4096×2160p@25 4096×2160p@30 DISABLE HDCP Enable 10 SEC. Switch Time 20 Sec. 30 Sec. 40 Sec. 50 Sec. 1 Min. 2 Min. 3 Min. 5 Min. Auto Timing Select 720×480p@60 720×576p@50 1280×720p@50 1280×720p@60...
- Page 18 1) Mode: Enable or disable the test pattern function on Output A. Auto Pattern: Will make the test patterns automatically change ■ based on the “Switch Time” setting. Auto Timing: Will show the selected test pattern and make the ■ output resolution automatically change based on the “Switch Time”...
- Page 19 FIRMWARE UPDATE 2nd Level 3rd Level Are You Sure? 1) Firmware Update: Provides a way to update the unit’s firmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option.
-
Page 20: Rs-232 Control
6.4 RS-232 Control Terminal Block In Controlling PC Serial Port Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None Terminal Block Out Definition 6.5 RS-232 Commands COMMAND Description and Parameters ? Show the full command list. ? N1... - Page 21 COMMAND Description and Parameters GET FW VER Show the current firmware version. GET MODEL NAME Show the unit’s model name. SET FACTORY DEFAULT Reset the unit to the factory defaults. SET SYSTEM REBOOT Reboot the unit. SET UART 1 BAUDRATE N1 Set the RS-232 baud rate to N1.
- Page 22 COMMAND Description and Parameters GET UART 1 DATA BIT Show the current RS-232 data bits. SET UART 1 PARITY N1 Set the RS-232 parity value. Available values for N1: [None] [Odd] [Even] GET UART 1 PARITY Show the current RS-232 parity value. SET IN 1 NAME N1...
- Page 23 COMMAND Description and Parameters GET IN 1 HACTIVE Show the current number of horizontal active pixels from the source on the Input. GET IN 1 VACTIVE Show the current number of vertical active pixels from the source on the Input. GET IN 1 REFRESH RATE...
- Page 24 COMMAND Description and Parameters SET USER 1 EDID DATA N1 Upload a new User EDID in HEX format. N1 = {EDID data in hh,hh,hh,hh,... HEX pair format} GET USER 1 EDID DATA Show the Current User EDID as HEX data. GET SINK N1 EDID DATA...
- Page 25 COMMAND Description and Parameters GET OUT N1 HDCP STATUS Show the current status of HDCP on Output N1. N1 = A ~ B [Output port] Available responses: [No HDCP] [HDCP 1.x] [HDCP 2.2] [HDCP 1.x failed] [HDCP 2.x failed] GET OUT N1 HDCP ABILITY Show the detected HDCP capability of Output N1.
- Page 26 COMMAND Description and Parameters SET AUTOMATION EVENT N1 UART A N2 Enable or disable RS-232 automation event type N1. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = ON, OFF [Enable/Disable event type] GET AUTOMATION EVENT N1 UART A...
- Page 27 COMMAND Description and Parameters GET AUTOMATION EVENT N1 UART A COMMAND Show the currently defined RS-232 command to send when automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] SET AUTOMATION EVENT N1 UART A DELAY N2 SEC...
- Page 28 COMMAND Description and Parameters SET AUTOMATION EVENT N1 UART A WAIT N2 SEC Set the wait time (in seconds) before sending a command after RS-232 automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost]...
- Page 29 COMMAND Description and Parameters N2 = A ~ B [Target output port] N3 = ON, OFF [Enable/Disable event type] GET AUTOMATION EVENT N1 CEC N2 Show the current state of CEC automation event type N1. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active]...
- Page 30 COMMAND Description and Parameters GET AUTOMATION EVENT N1 CEC N2 COMMAND Show the currently defined CEC command to send when automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = A ~ B [Target output port]...
- Page 31 COMMAND Description and Parameters [Out B sync lost] N2 = A ~ B [Target output port] SET AUTOMATION EVENT N1 CEC N2 WAIT N3 SEC Set the wait time (in seconds) before sending a command after CEC automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active]...
-
Page 32: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC/Laptop Media Player HDMI RS-232 Input Power supply DC 5V HDMI IN HDMI OUT RS-232 RS-232 RS-232 Controlled Device HDMI HDMI Output Output UHDTV UHDTV (4K Downscaled (1080p Upscaled to 1080p) to 4K) -
Page 33: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Ports 2×HDMI Control Ports 2×RS-232 (3-pin Terminal Blocks) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 128mm×25mm×75mm (W×H×D) -
Page 34: Video Specifications
8.2 Video Specifications 8.2.1 Supported Resolutions HDMI HDMI Supported PC Resolution (Hz) Input Output 800×600 56/60/72/75/85 1024×768 60/70/75/85 1280×768 60/75 1280×800 60/75 1280×1024 60/75 1366×768 1400×1050 60/75 ... -
Page 35: Conversion Rules
8.2.2 4K Conversion Rules DOWN 1080P Input Resolution (Hz) Output Resolution (Hz) 3840×2160p@24 1920×1080p@24 3840×2160p@25 1920×1080p@25 3840×2160p@30 1920×1080p@30 3840×2160p@50 1920×1080p@50 3840×2160p@60 1920×1080p@60 4096×2160p@24 1920×1080p@24 4096×2160p@25 1920×1080p@25 4096×2160p@30 1920×1080p@30 4096×2160p@50 1920×1080p@50 4096×2160p@60 1920×1080p@60 ... -
Page 36: Audio Specifications
FIX 4K2K Input Resolution (Hz) Output Resolution (Hz) RGB & YCbCr 4:4:4/4:2:2 YCbCr 4:2:0 3840×2160p@50 3840×2160p@50 3840×2160p@60 3840×2160p@60 4096×2160p@50 4096×2160p@50 4096×2160p@60 4096×2160p@60 FIX 8 BITS Input Resolution (Hz) Output Resolution (Hz) RGB & YCbCr 4:4:4/4:2:2, RGB & YCbCr 4:4:4/4:2:2, 8-bit 10/12/16-bit 3840×2160p@24 3840×2160p@24... -
Page 37: Cable Specifications
Digital (HDMI) Output Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 8.4 Cable Specifications 1080p@60Hz 4K@30Hz 4K@60Hz HDMI Cable Length 8-bit 12-bit 8-bit 8-bit Input Output 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP... - Page 38 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
