- Page 1 PC/HD to DVI Format Converter Operation Manual CP-1261D...
- Page 2 Revision History Version No. Date Summary of Change 20081027 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to the converter box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find problem with it, please return back to your retailer or seller who will assist you or provide you with solution.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..……….…………………………………........ 2. Application......…………………………………………..… 3. Contents........…………………………………………...……. 4. System Require......………………………………………..5. Features........………………………………………...……….. 6. Operational Installation........……………………………… 7. Specification........…..………………………………...……… 8. DVI-Pin Configuration.......…………………………………...…… 9. Connection and Installation....…………………………………... -
Page 4: Introduction
1. Introduction This is a CP/HD to DVI format converter box. This box can convert and upgrade your display image from analog into digital and VGA into HD. When your source coming from either PC or traditional RGB signal through the PC/HD to DVI Format Converter, the image will be transform into DVI signal. -
Page 5: Operational Installation

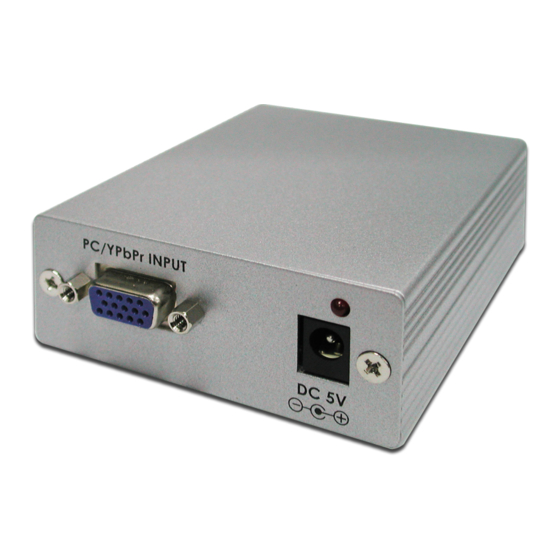

6. Operational Installation Front Panel Rear Panel PC/YPbPr INPUT DVI-I OUTPUT INPUT OUTPUT YPbPr Bypass DC 5V ① HD-15 D-Sub input: Connects to the PC or YPbPr source equipment, using VGA cable, or D-Sub to 3 RCA adaptor cable. ② DC 5V power input jack. ③... -
Page 6: Specification
7. Specifications * Input: Analog HD-15 (RGBHV or YPbPr) * Input signal: RGB: 0.7 Vp-p 75 ohm H + V: 3 to 5 Vp-p or Y :1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm * Output: DVI-I connector (only DVI-D output) * Output signal: Digital RGB or YPbPr data bit stream * Compliant with DVI Rev 1.0 * Operation frequency: up to 165MHz... -
Page 7: Dvi-Pin Configuration
8. DVI-I Pin Configuration DVI-Integrated(DVI-I): Supports both analog and digital connections to the display. This 29-pin connector can carry single or dual-link all-digital video/ data signals on 24 pins and uses 5 pins to carry analog video/data signals and ground. 8 C1 C2 Combined Analog and Digital Connector Pin Assignments Pin Signal Assignment... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081106 MPM-1261D...
