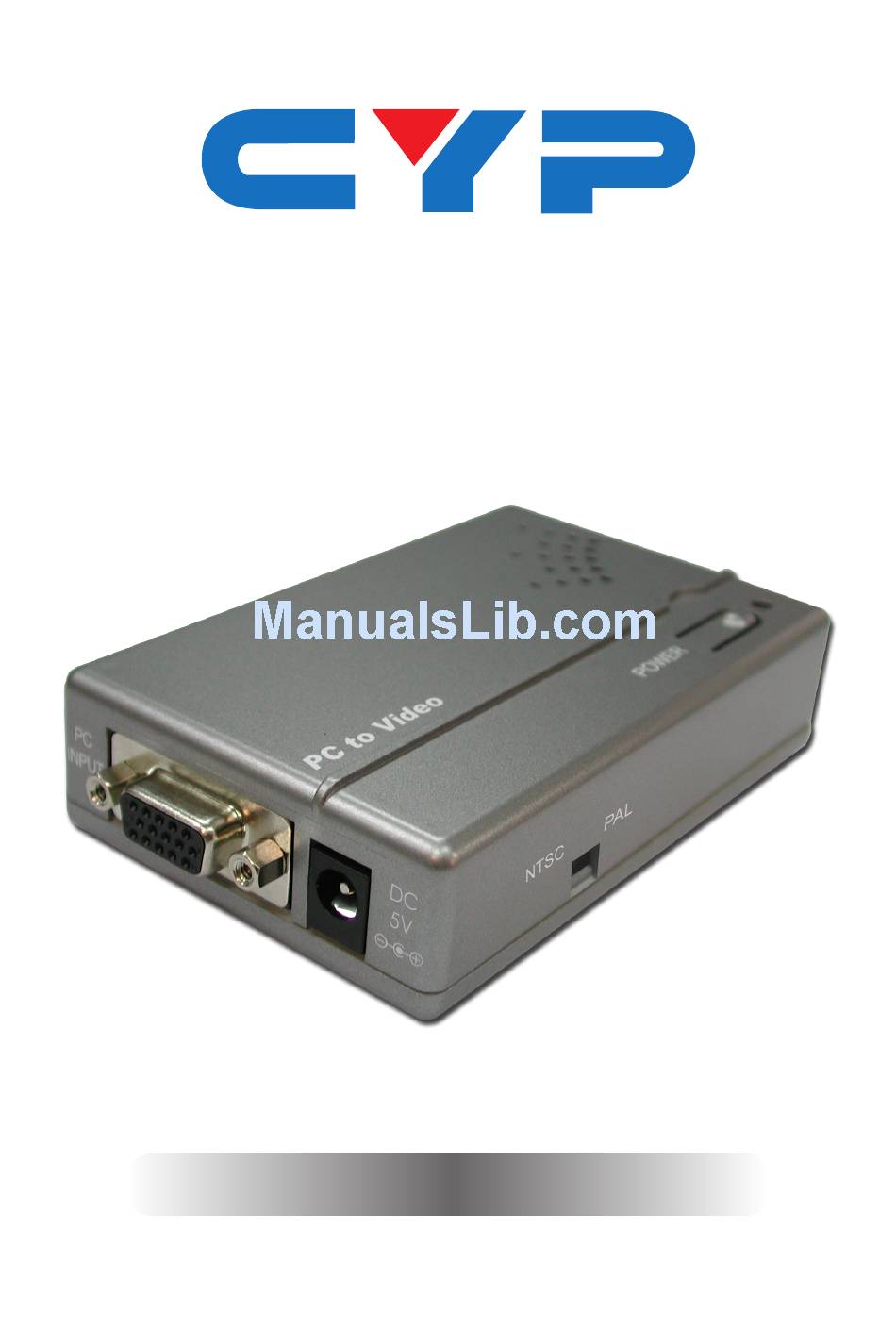

- Page 1 CPT-385AMN PC to Video Converter Box Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 6.3 Side Panel .........3 6.4 Top Panel ..........3 7. -
Page 6: Introduction
1. INTRODUCTION The PC to Video scan converter box is designed to convert a variety of analog computer images, from VGA to WUXGA, to interlaced NTSC or PAL video. With frame rate conversion and Overscan / Underscan features that allows users to view PC source on the Composite and S-Video monitor without image cutting off. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT PC INPUT Connect to the source equipment such as computer with D-Sub 15pin cable. DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. 6.2 Rear Panel S-VIDEO VIDEO... -
Page 8: Side Panel
6.3 Side Panel NTSC NTSC/PAL Switch Switch the output display image between NTSC or PAL system. The device will auto adjust the output image including the size, phase and position and while adjusting the power LED will blink. Note: Source input signal must have a full screen image in order to allow the auto adjustment function to perform successfully. -
Page 9: Connection And Installation
7. CONNECTION AND INSTALLATION HD TV... -
Page 10: Specifications
8. SPECIFICATIONS Input port 1 x PC Output ports 1 x Composite Video, 1 x S-Video Input Resolution PC: 640x480 = VGA@60, 72, 75, 85 720x400@70, 576p, 800x600 = SVGA@56, 60, 72, 75, 85 1024x768 = XGA@60*, 70*, 75, 85 1152x864 = MAC@70, 75, 85 1280x720@25,30,50*,60,60cvt 1280x768 = WXGA@60RB, 60*... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter NTSC National Television System Committee Phase Alternating Line Video Graphics Array WUXGA Widescreen Ultra eXtended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPT385AM...
