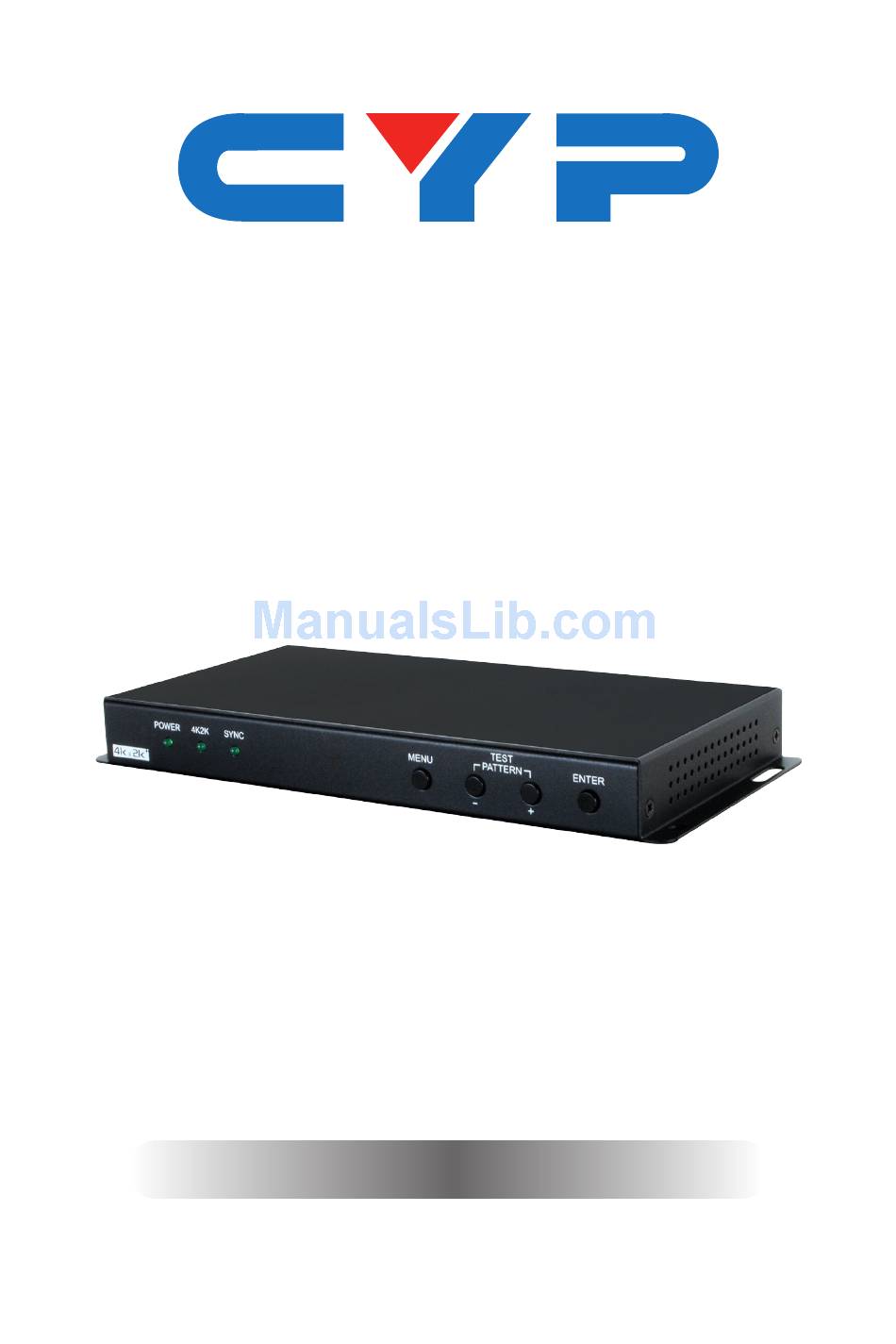

- Page 1 CPLUS-V2PE 4K UHD+ HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 6.3.1 Unit's OSD Menu ....... 5 6.3.2 Conversion Rules ...... -
Page 6: Introduction
1. INTRODUCTION This HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital and analog audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI output. -
Page 7: Features
• HDMI cable distance can be impacted by the materials and design of the cable used. The use of “Premium High Speed HDMI” cables is highly recommended for resolutions of 1080p or above. 5. FEATURES • 1 HDMI input and 2 HDMI outputs with 4K UHD (18Gbps) support and HDCP 2.2 compliance •... -
Page 8: Operation Controls And Functions

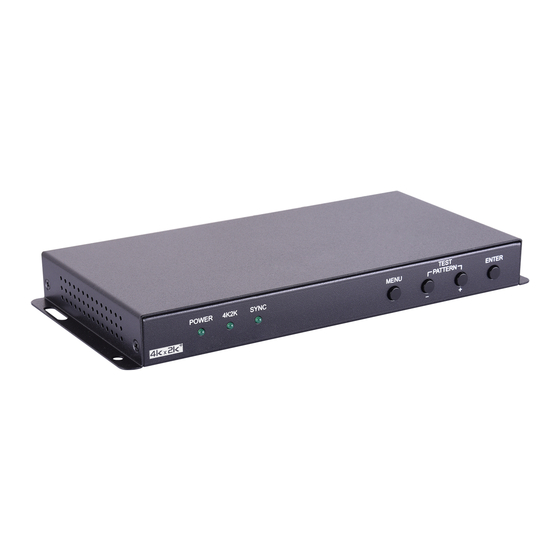

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TEST POWER 4K2K SYNC MENU PATTERN ENTER – – POWER: This LED will illuminate when the unit is connected with a power supply. 4K2K: This LED will illuminate when the input source contains a 4K UHD signal. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT DC 5V HDMI IN HDMI OUT SERVICE HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. Each output can display a different resolution with a choice between the HDMI source or a test pattern. -
Page 10: Osd Menu
6.3 OSD Menu 6.3.1 Unit's OSD Menu LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 PASS THROUGH OUTPUT OUTPUT A INPUT 4K2K DOWN 1080P FIX 4K2K (420) FIX 8 BITS PASS THROUGH OUTPUT B INPUT 1080P UP 4K2K UP 4K2K (420) PASS THROUGH INPUT 4K2K FIX 4K2K (420) - Page 11 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 OSD (cont.) OSD TIME OUT 20 SEC. 25 SEC. 30 SEC. 35 SEC. 40 SEC. TEST PATTERN A MODE AUTO PATTERN AUTO TIMING WHITE COLOR PATTERN RED COLOR GREEN COLOR BLUE COLOR MAGENTA COLOR YELLOW COLOR...
- Page 12 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 TEST PATTERN A RESOLUTION 4096×2160P@25 (cont.) 4096×2160P@30 DISABLE HDCP ENABLE 10 SEC. SWITCH TIME 20 SEC. 30 SEC. 40 SEC. 50 SEC. 1 MIN. 2 MIN. 3 MIN. 5 MIN. AUTO TIMING 720×480P@60 SELECT 720×576P@50...
- Page 13 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 TEST PATTERN B PATTERN RED COLOR (cont.) GREEN COLOR BLUE COLOR MAGENTA COLOR YELLOW COLOR CYAN COLOR COLOR BAR RAMP TOGGLE RESOLUTION 720×480P@60 720×576P@50 1280×720P@50 1280×720P@60 1920×1080P@50 1920×1080P@60 3840×2160P@24 3840×2160P@25 3840×2160P@30 4096×2160P@24 4096×2160P@25 4096×2160P@30 3840×2160P@50...
- Page 14 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 TEST PATTERN B SWITCH TIME 30 SEC. (cont.) 40 SEC. 50 SEC. 1 MIN. 2 MIN. 3 MIN. 5 MIN. AUTO TIMING 720×480P@60 SELECT 720×576P@50 1280×720P@50 1280×720P@60 1920×1080P@50 1920×1080P@60 3840×2160P@24 3840×2160P@25 3840×2160P@30 4096×2160P@24 4096×2160P@25 4096×2160P@30...
- Page 15 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 FIRMWARE UPDATE FACTORY SETTING Note: • Values in Bold are factory default settings. • When input timing is non-VESA compliant the OSD may be disabled. To get into the OSD menu in this case, press the hot key combination to enter into test pattern mode and operate the OSD menu while the test pattern is displaying.
-
Page 16: Conversion Rules
6.3.2 Conversion Rules • DOWN 1080P Input Resolution (Hz) Output Resolution (Hz) 3840×2160p@24 → 1920×1080p@24 3840×2160p@25 → 1920×1080p@25 3840×2160p@30 → 1920×1080p@30 3840×2160p@50 → 1920×1080p@50 3840×2160p@60 → 1920×1080p@60 4096×2160p@24 → 1920×1080p@24 4096×2160p@25 → 1920×1080p@25 4096×2160p@30 → 1920×1080p@30 4096×2160p@50 → 1920×1080p@50 4096×2160p@60 →... - Page 17 • FIX 4K2K (YUV420) Input Resolution (Hz) Output Resolution (Hz) RGB 4:4:4 & YCbCr 4:4:4/4:2:2 YCbCr 4:2:0 3840×2160p@50 → 3840×2160p@50 3840×2160p@60 → 3840×2160p@60 4096×2160p@50 → 4096×2160p@50 4096×2160p@60 → 4096×2160p@60 • FIX 8 BITS Input Resolution (Hz) Output Resolution (Hz) RGB 4:4:4 & YCbCr 4:4:4/4:2:2, RGB 4:4:4 &...
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply AUDIO OUT DC 5V HDMI IN HDMI OUT SERVICE Downscaled Upscaled or Analog or Bypassed Bypassed Stereo HDMI Output HDMI Output Output HDTV UHDTV Powered (4K→1080p) (1080p→4K) Speakers... -
Page 19: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI Output Ports 2×HDMI 2×RCA (Stereo Audio) Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection... -
Page 20: Video Specifications
8.2 Video Specifications Supported Resolutions (Hz) HDMI Input HDMI Output 800×600@56/60/72/75/85 1024×768@60/70/75/85 1280×768@60/75 1280×800@60/75 1280×1024@60/75 1366×768@60 1400×1050@60/75 1440×900@60/75 1600×900@60 1600×1200@60 1680×1050@60 ... -
Page 21: Audio Specifications
8.3 Audio Specifications Input Output Output Frequency Level/Freq. Terminal Level THD+N Response Crosstalk HDMI 2Vrms±10% < 0.1% ±3dB > 70dB < −60dB 0dBFS, 1kHz 9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range... - Page 24 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
