12/21 m (39/69 ft) swing-away lattice extension
3.6 Description of rigging work
3 - 86

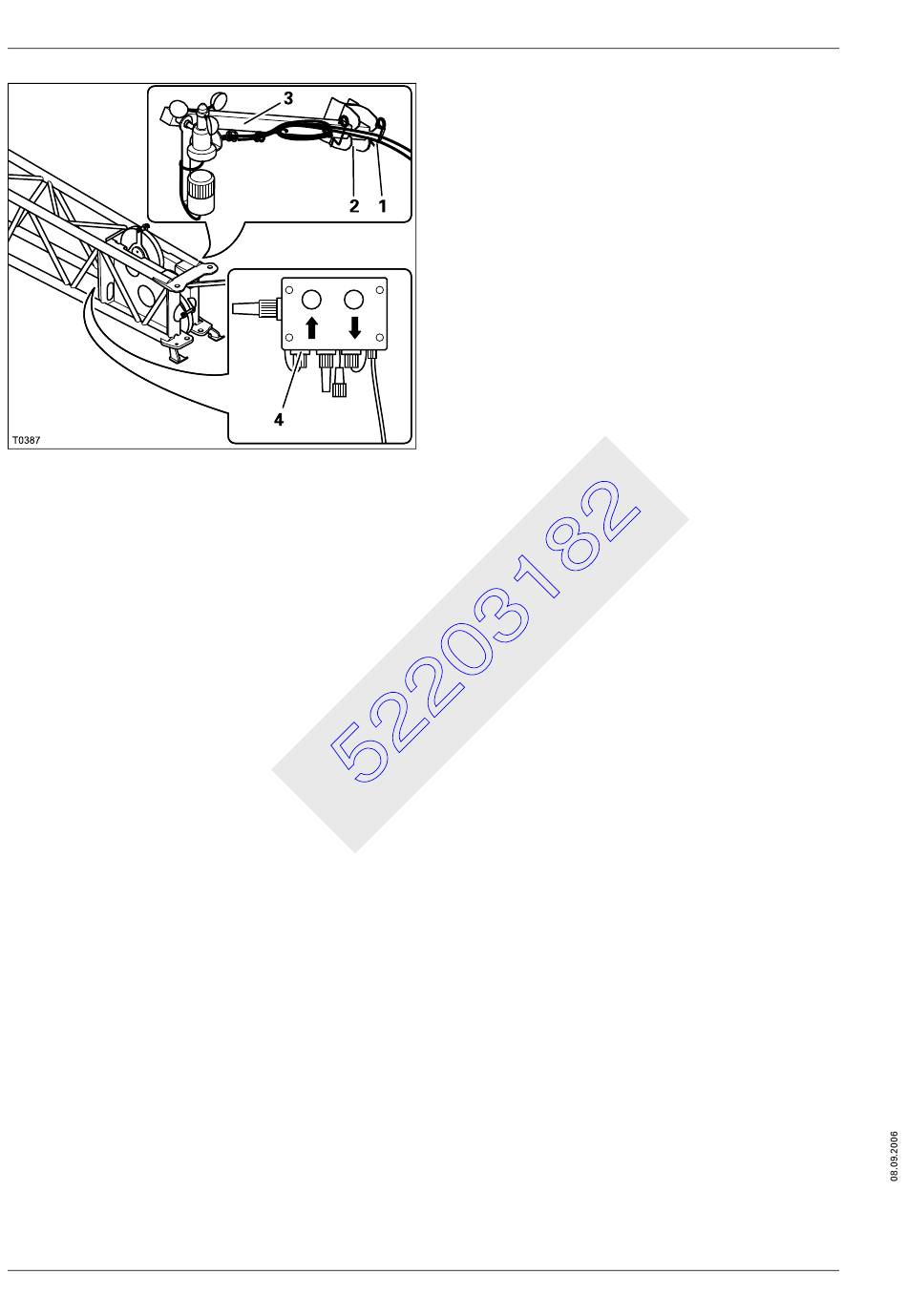

Removing the anemometer
•
Pull the plug of the anemometer from the
socket (4).
•
Cover the socket (4) with the protective cap.
•
Loosen the retaining pin (1).
•
Pull the grip (3) out of the holder (2).
•
Insert the retaining pin (1) into the grip.
•
Securely stow away the grip (3) with the
anemometer.
