1.

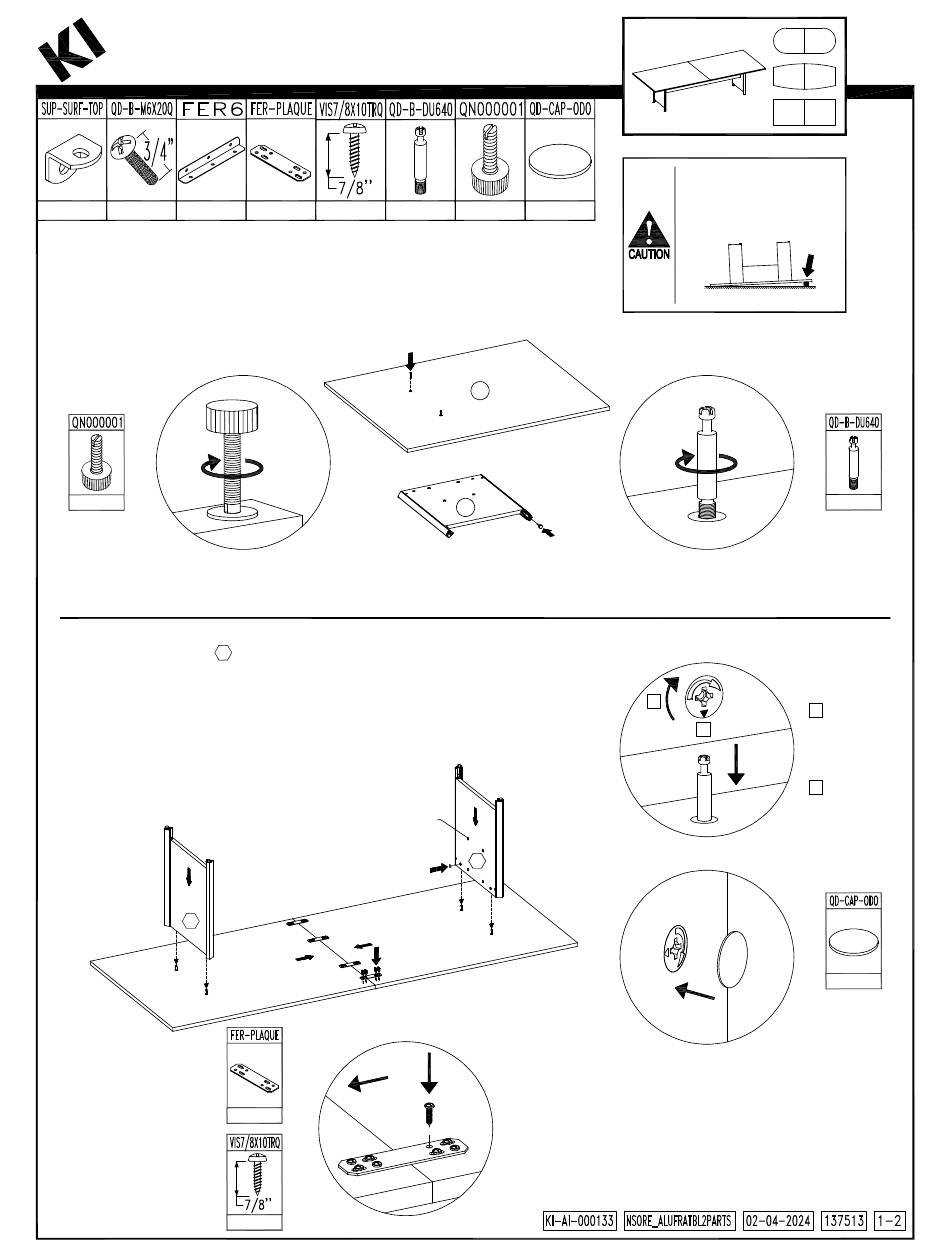

Lay table surface and end panels upside down on soft surface to protect. Insert
the 4 shoulder screws into the top (see diagram). Insert the 4 glides leaving 1/4
inch of adjustment into end panels.
4
2.
Place laminate bases 1 in place then tighten all camlocks (see diagram). Place
adhesive cover over visible hardware (see diagram). Place conférence table tops and
install splice plates (see diagram).
1

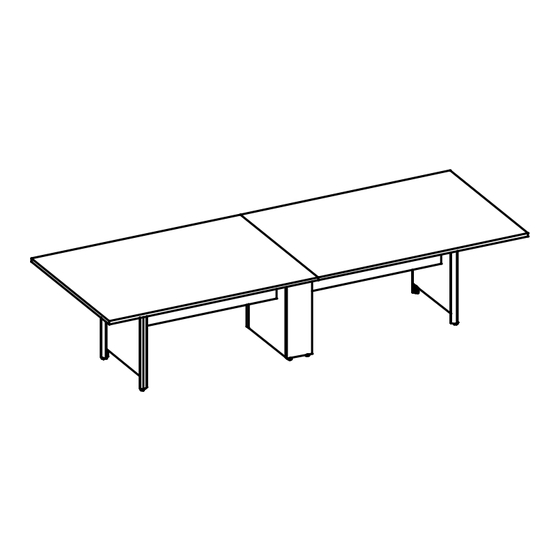

Conference Table Aluminum Frame Base - 120''
4
64
4
Metal
Inserts
Inside
4
32
Assembly Instructions
Orenda
Casegoods
TM
4
8
2x
2x
1
Do not turn over table using
the laminate bases. Insert a
piece of packaging under
surface to facilitate handling.
Floor
2
1
Align arrow
1
orientation
to insert part
2
Lock
AKLRA
AKLAA
AKLAB
4
