Assembly Instructions
Likha Casegoods
Adjustable-Height Bridges & Returns
September 2022
L-bracket
5
/ "
8
screws
adjoining
panel
L-bracket
5
/ "
8
screws
adjustable-height
bridge or return
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Adjustable-Height Bridges &
Returns Assembly
Tools Required
•
2" L-brackets
•
/
" screws
5
8

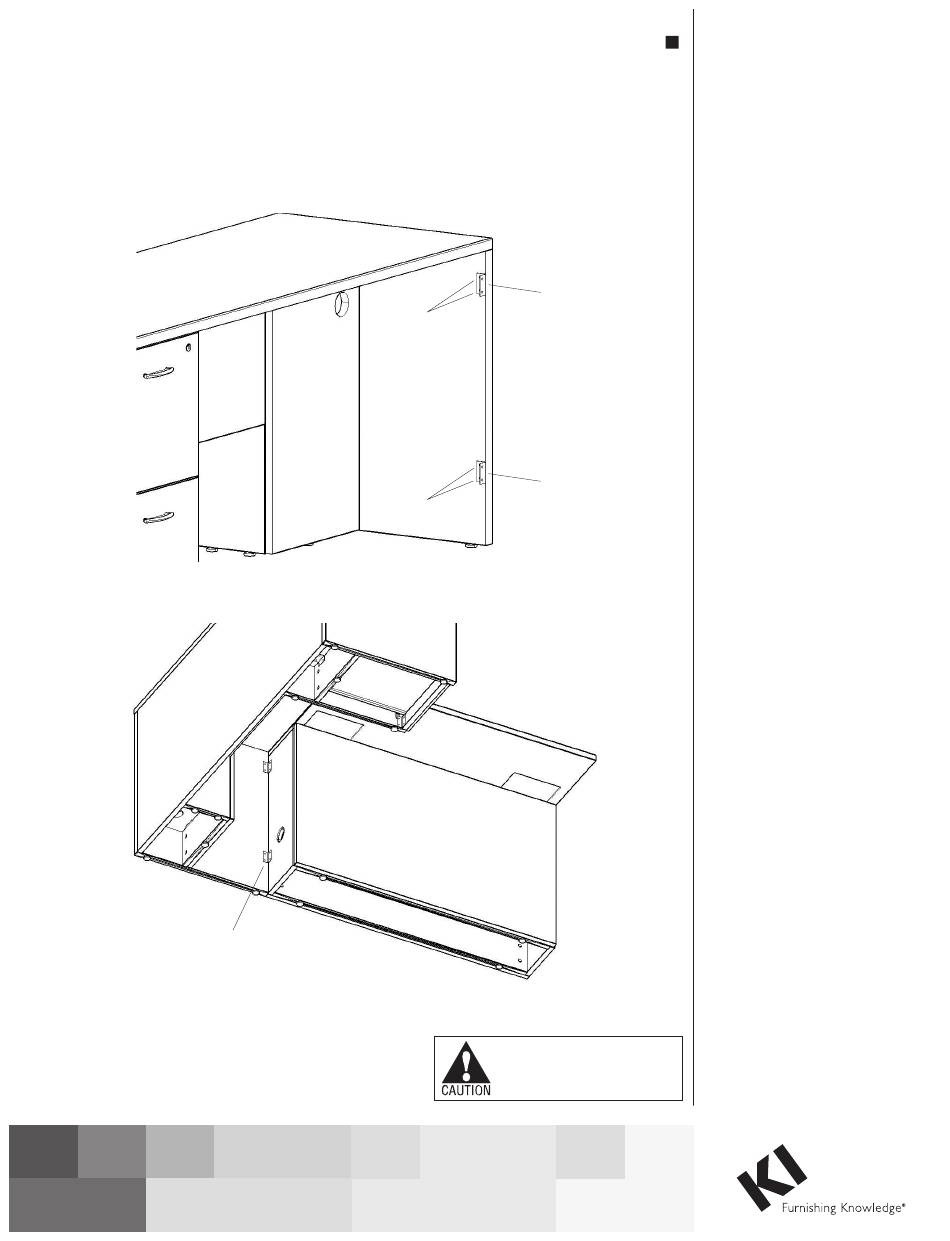

1. Install two L-brackets flush with
the front edge on the unit the
adjustable-height bridge or return
is adjoining to as illustrated. Secure
the L-brackets to the adjoining panel
using two
/
" screws per bracket
5
8
(Figure 1).
2. Position the adjustable-height
bridge or return flush against
the adjustable-height unit with
L-brackets. Attach the properly
positioned bridge or return to the
adjustable-height unit using two
screws per bracket (Figure 2).
3. Repeat steps 1 & 2 for the opposite
side of the adjustable-height bridge
unit.
/
"
5
8
