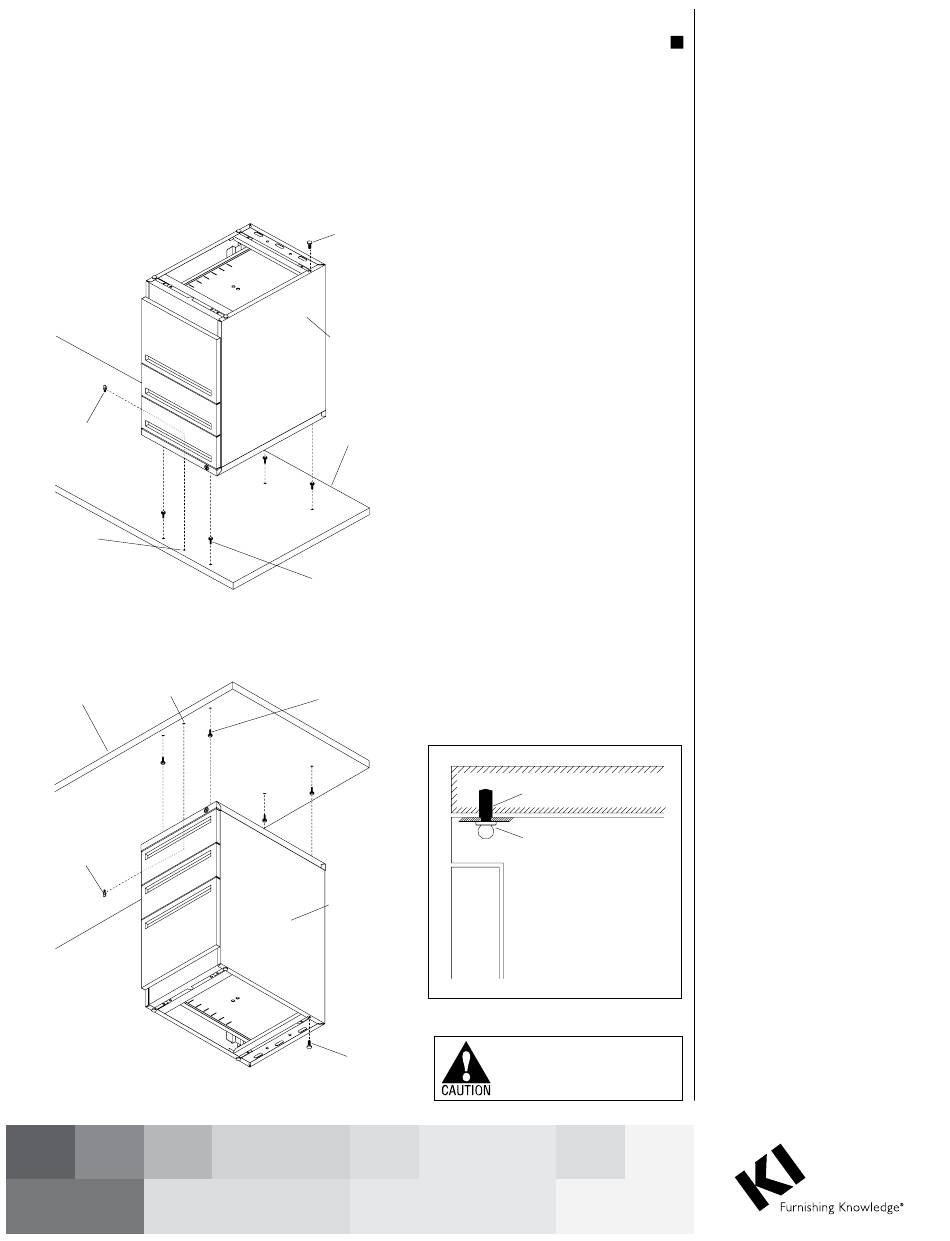

KI 700 Series Assembly Instructions

thumbscrew
thumbscrew
hole
Method "A"
Figure 1
thumbscrew
hole
worksurface
thumbscrew
Method "B"
Figure 2
Assembly Instructions
KI 700 Series/E-Series/Areus/System Wall Pedestals
Worksurface Supporting & Mobile Pedestals
adjustable
glide
pedestal
worksurface
hanger
bolt
hanger
bolt
pedestal
Detail A
adjustable
glide
August 2020
predrilled hole
thumbscrew
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Worksurface Supporting
Pedestal - Installation to
Worksurface
Method "A"
1. To avoid scratching the
worksurface, place face down on a
soft protective surface (Figure 1).
Note: For installation of pedestal
to worksurface without holes
pre-drilled to underside, see
Figure 3, next page.
2. Determine on which side of the
worksurface the pedestal will install
to, then twist four hanger bolts into
the worksurface pedestal holes.
Caution: Do not over-tighten bolts.
3. Position pedestal so hanger bolts
insert through top of pedestal at
larger opening of keyhole slots.
Then slide pedestal back to engage
four hanger bolts in smaller slot of
keyholes (Figure 1).
4. Open top drawer of pedestal and
locate front, center hole in pedestal.
Make sure pedestal mounting
hole aligns with predrilled hole in
worksurface and install thumbscrew
through pedestal, into worksurface
to secure pedestal in place (Detail A).
5. Once pedestal is secured to
underside of worksurface, and
worksurface is right-side up at its
final location on-site, adjust the
four glides under the pedestal to
achieve a level, stable worksurface.
Method "B"
Note: This method should be used
only when attaching a pedestal to
worksurface that cannot be placed
face down on the floor.
1. Follow notes and instructions
in Method "A" excluding step 1
(Figure 2).
Caution: To avoid injury this
operation requires more than one
person to install pedestal.
