KI 700 Series Assembly Instructions

August 1997
KI Pembroke
P.O. Box 580
1000 Olympic Drive
Pembroke, Ontario
K8A 6X7
TEL (613) 735-5566
FAX (613) 735-3333
Assembly Instructions
KI 700 Series Desk Return

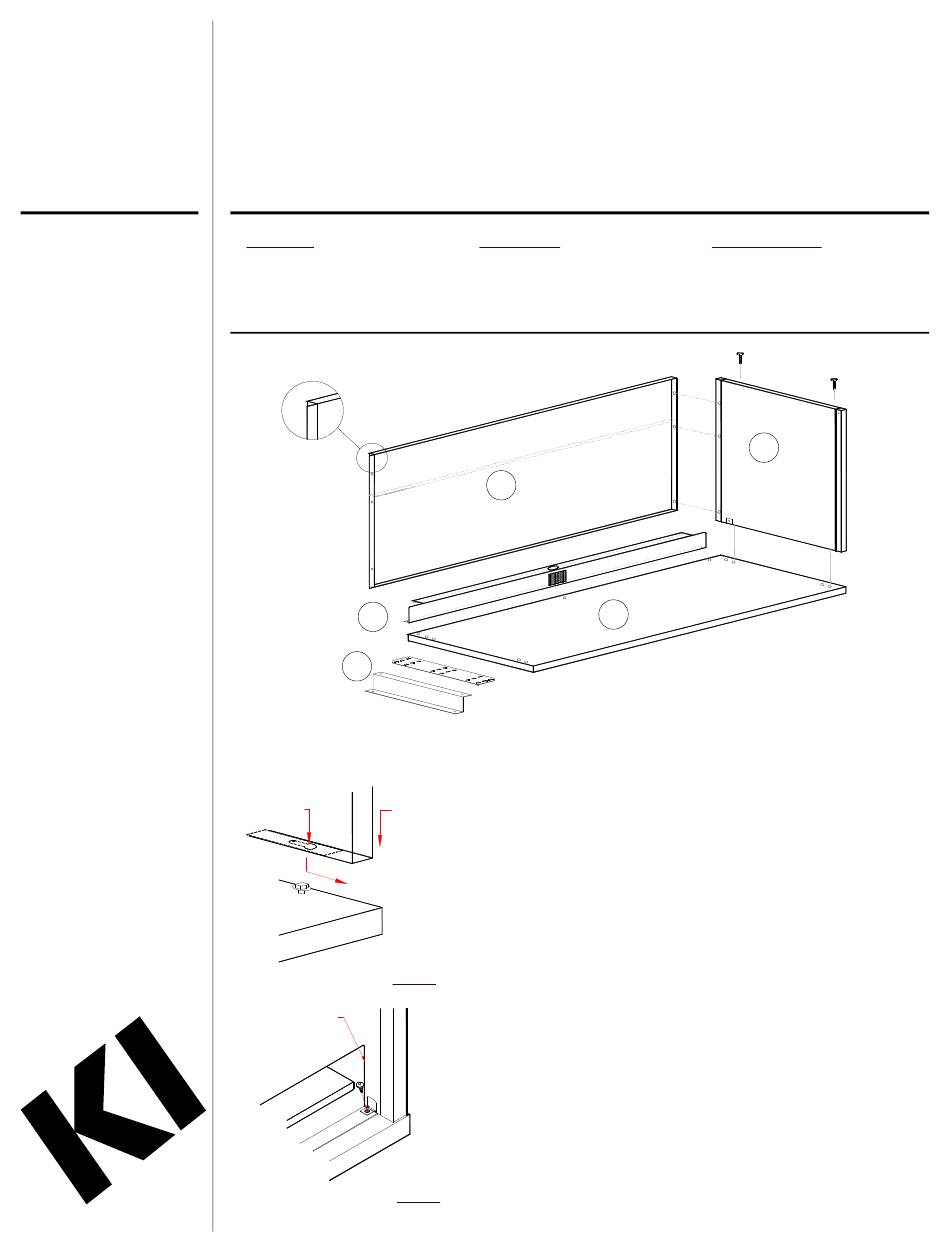

Components
1 - Desk Return
2 - Modesty Panel
3 - End Panel
4 - Wire Management Channel
5 - Level or Step Connector
4
5
Down
Key Hole
Hanger
Screw
Worksurface
Detail A
Wire Management
Channel
Worksurface
Detail B
Tools Required
Ÿ Phillips Screwdriver
Ÿ 3/8" Socket/Wrench
2
1. To avoid scratching worksurface,
place top face down on a protective
surface.
2. Insert (2) hanger screws in predrilled
holes for end panels. Place end
panel over hanger screws and slide
into position (Detail A).
3. Position modesty panel against
end panel aligning holes with those
in end panel, fasten using (2-3)*
#8 x 1/2" screws.
4. Place wire management channel on
worksurface against end panel and
modesty panel, product label facing
inward, keeping predrilled holes
Desk End
aligned. Bend tab in end panel over
Panel
wire management channel (Detail B).
Secure wire management channel in
place with (3) #8 x 1/2" screws.
Hardware Parts List
(9) #20162 - #8 x 1/2" Screws
(6) #20192 - #14 x 7/8" Screws
(2) #20201 - #14 x 7/8 Hanger Screws
(2) #20425 - Hex Glides
3
1
5. Screw (2) hex glides in bottom of
end panel. See options on reverse.
6. Turn right side up for final
placement.
* (2) - #8 x 1/2" screws - partial
modesty panel
(3) - #8 x 1/2" screws - full modesty
panel
