16
20
2
1.
Lay worksurface and end panels upside down on soft surface to protect.
Insert the 16 shoulder screws into the top and end panels.
2.
Assemble top 5 and 6 together with the 2 double-headed bolts. Place back
panel 1 in place then ends 2
diagram). Place adhesive cover over visible hardware.
1
2
3
3
4 and then tighten all camlocks (see
3
5
Assembly Instructions
Orenda
Casegoods
TM

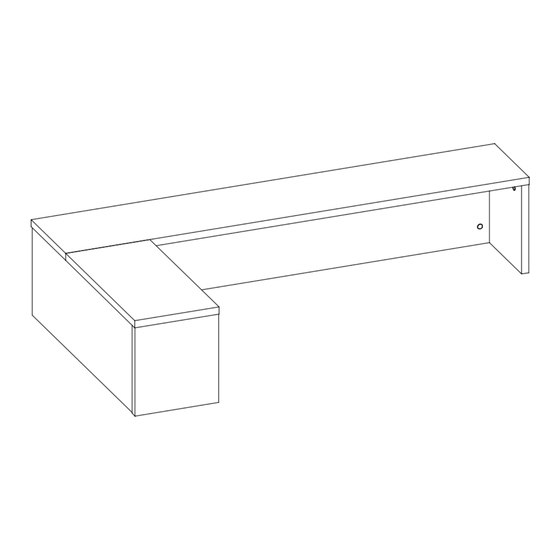

Reception Gallery Return
4
6
2
1
Align arrow
1
orientation
to insert part
2
Lock
AKEGE
16
2
20
Advertisement
Related Manuals for KI Orenda AKEGE
Summary of Contents for KI Orenda AKEGE
- Page 1 Assembly Instructions Orenda Casegoods Reception Gallery Return AKEGE Lay worksurface and end panels upside down on soft surface to protect. Insert the 16 shoulder screws into the top and end panels. Assemble top 5 and 6 together with the 2 double-headed bolts. Place back panel 1 in place then ends 2 4 and then tighten all camlocks (see diagram).
- Page 2 Assembly Instructions Orenda Casegoods Reception Gallery Return AKEGE For safety reasons, the adhesive mounting tape supplied must be used when installing the reception gallery. This one-time use adhesive mounting tape permanently secures the overhead in position to prevent it from tipping over. Do not remove the tape's protective backing before deciding the reception gallery return's final position.
