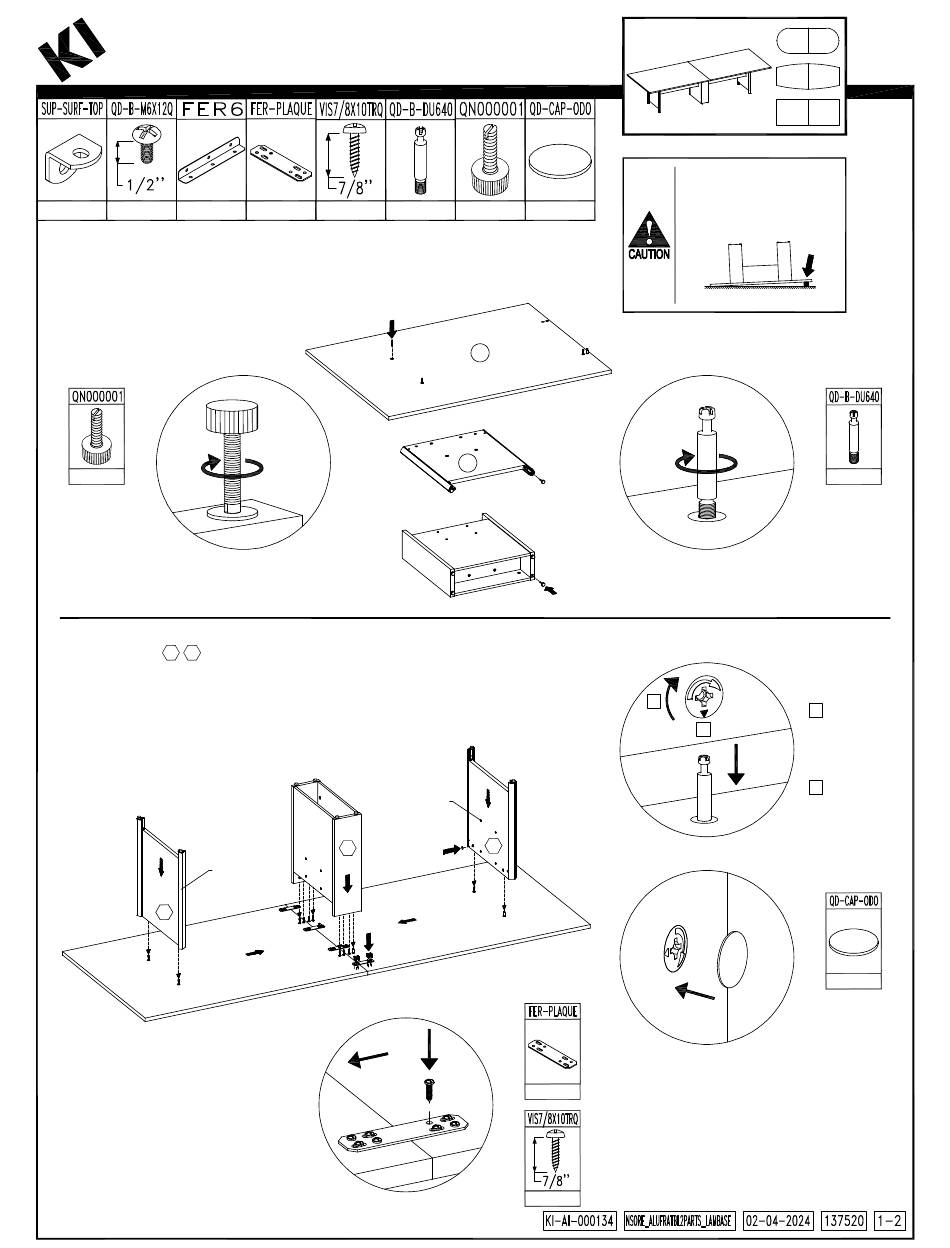

Lay table surface and end panels upside down on soft surface to protect. Insert
the 12 shoulder screws into the top (see diagram). Insert the 8 glides leaving
1/4 inch of adjustment into end panels and laminate base.
8
Supplied
with laminate
bases (4x)
2.
Place bases 1
2 in place then tighten all camlocks (see diagram). Place adhesive
cover over visible hardware (see diagram). Place conférence table tops and install splice
plates (see diagram).
Metal
Inserts
Inside
1
Assembly Instructions
Conference Table Aluminum Frame Base - 144''
4
64
4
Metal
Inserts
Inside
2
Orenda
Casegoods
TM
4
8
2x
2x
1
4
32
Do not turn over table using
the laminate bases. Insert a
piece of packaging under
surface to facilitate handling.
Floor
Supplied
with laminate
bases (8x)
2
1
Align arrow
1
orientation
to insert part
2
Lock
Supplied
with laminate
bases (8x)
AKLRA
AKLAA
AKLAB
12
16
