Assembly Instructions

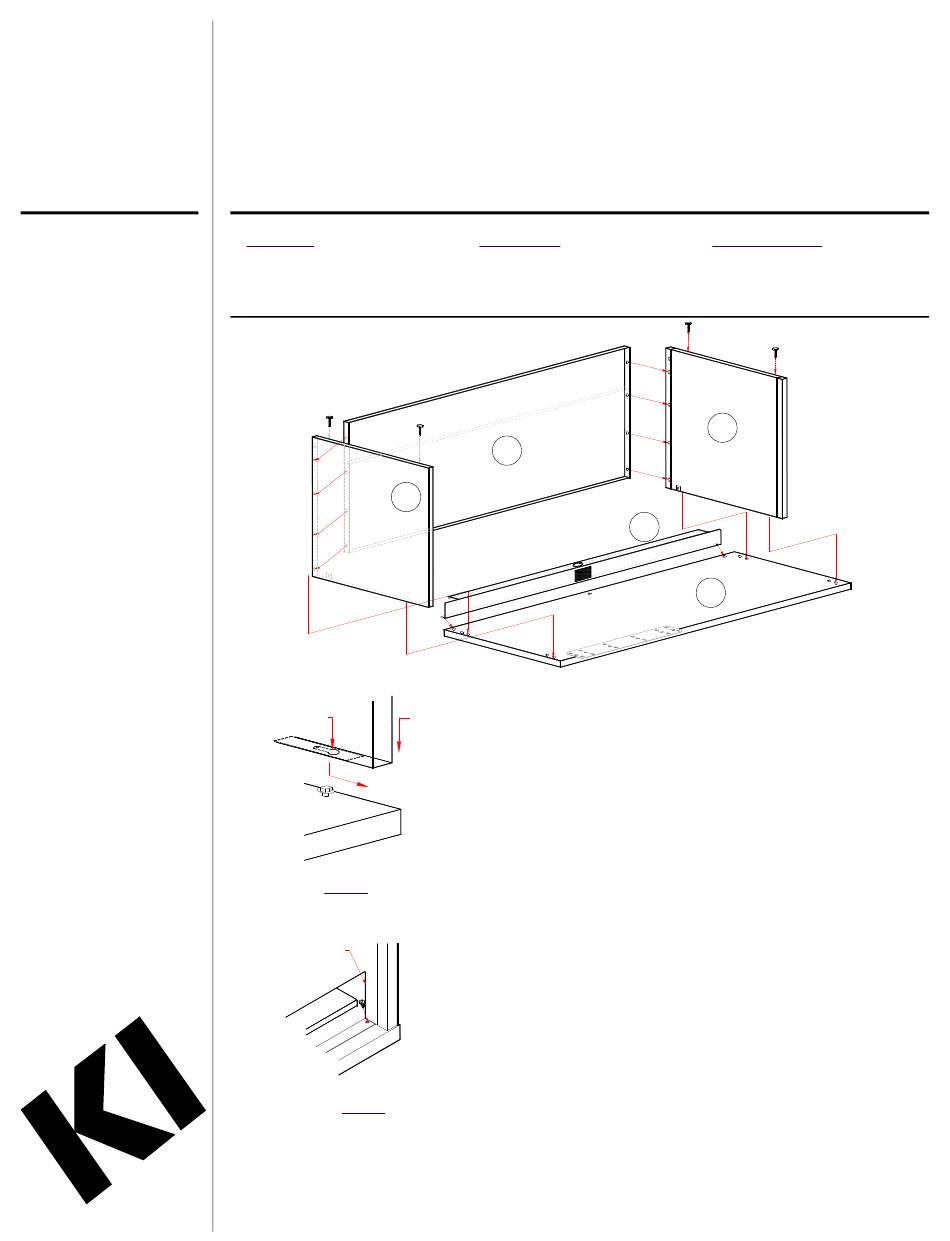

KI 700 Series Credenza Shell
Components
1 - Worksurface
2 - End Panel
3 - Modesty Panel (Full/Partial)
4 - Wire Management Channel
2
Key Hole
Hanger Screw
Worksurface
Detail A
Wire Management
Channel
Worksurface
Detail B
Tools Required
Ÿ Phillips Screwdriver
Ÿ 3/8" Socket/Wrench
3
Down
Desk End
Panel
Hardware Parts List
(12) #20162 - #8 x 1/2" Screws
(4) #20201 - #14 x 7/8 Hanger Screws
(4) #20425 - Hex Glides
2
4
1
1. To avoid scratching worksurface,
place face down on a protective
surface.
2. Insert (2) hanger screws in predrilled
holes for end panels. Place end panel
over hanger screws and slide into
position (Detail A). Repeat for
opposite end.
3. Position modesty panel between end
panels, aligning holes with those in
end panels, fasten using (3-4)*
#8 x 1/2" screws in both ends.
4. Place wire management channel
between end panels, product label
facing inward, align holes with
predrilled holes in worksurface. Bend
tabs in end panel over wire
management channel (Detail B).
Secure channel in place using (3)
#8 x 1/2 screws.
5. If attaching bridge/return, align level
connector (shipped with
bridge/return) with predrilled holes in
worksurface. Use (2) #14 x 7/8"
screws to attach level connector to
worksurface.
6. Screw (4) hex glides in bottom of end
panels. See options on reverse.
* (3) - #8 x 1/2" screws - partial
modesty panel
(4) - #8 x 1/2" screws - full modesty
panel
