1.

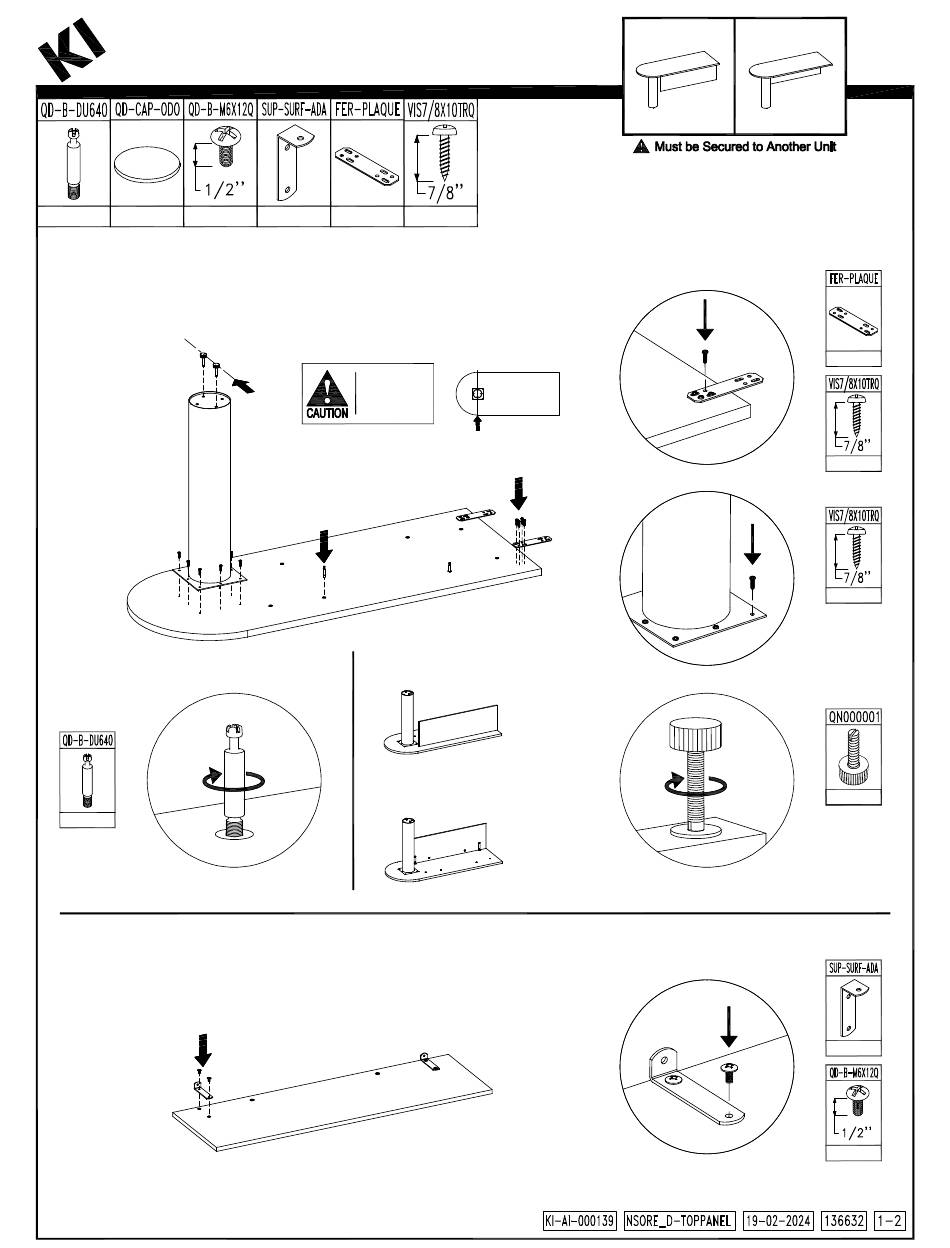

Lay worksurface upside down on soft surface to protect the top. Install 2 splice plates
onto the top and insert the 2 shoulder screws into the top (see diagram). Set the metal
leg onto the top with glide mounting holes aligned as on the diagram, then install leg
onto the top. Insert the 2 glides leaving 1/4 inch of adjustment.
2
2.
Lay modesty panel upside down on soft surface to protect. Install 2 angle brackets
onto the modesty panel (see diagram).

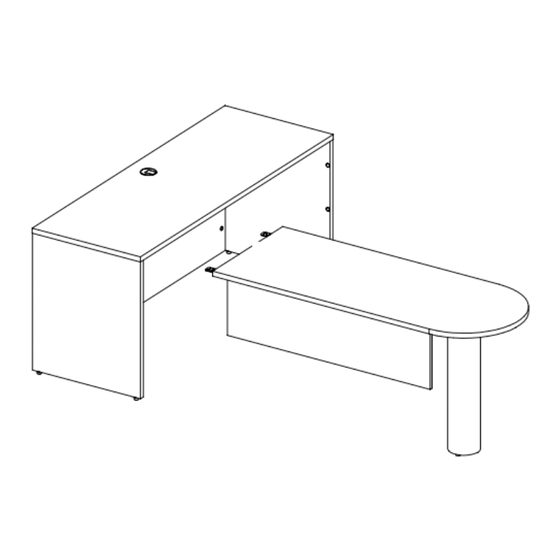

Assembly Instructions
Orenda
Suspended D Top with Modesty
2
2
16
Alignement
of levelers
Reversible
2 possible modesty
positions
Casegoods
TM
AKTDS
2
8
8
Supplied
with
metal leg
2
Supplied
with
metal leg
2
4
Advertisement
Related Manuals for KI Orenda AKTDS
Summary of Contents for KI Orenda AKTDS
- Page 1 Assembly Instructions Orenda Casegoods Suspended D Top with Modesty AKTDS Lay worksurface upside down on soft surface to protect the top. Install 2 splice plates onto the top and insert the 2 shoulder screws into the top (see diagram). Set the metal leg onto the top with glide mounting holes aligned as on the diagram, then install leg onto the top.
- Page 2 Assembly Instructions Orenda Casegoods Suspended D Top with Modesty AKTDS Place modesty panel 1 in place then tighten all camlocks (see diagram). Place adhesive cover over visible hardware. Install angle bracket to reinforce the modesty panel assembly (see diagram). Align arrow orientation to insert part Lock...
