6
12
2

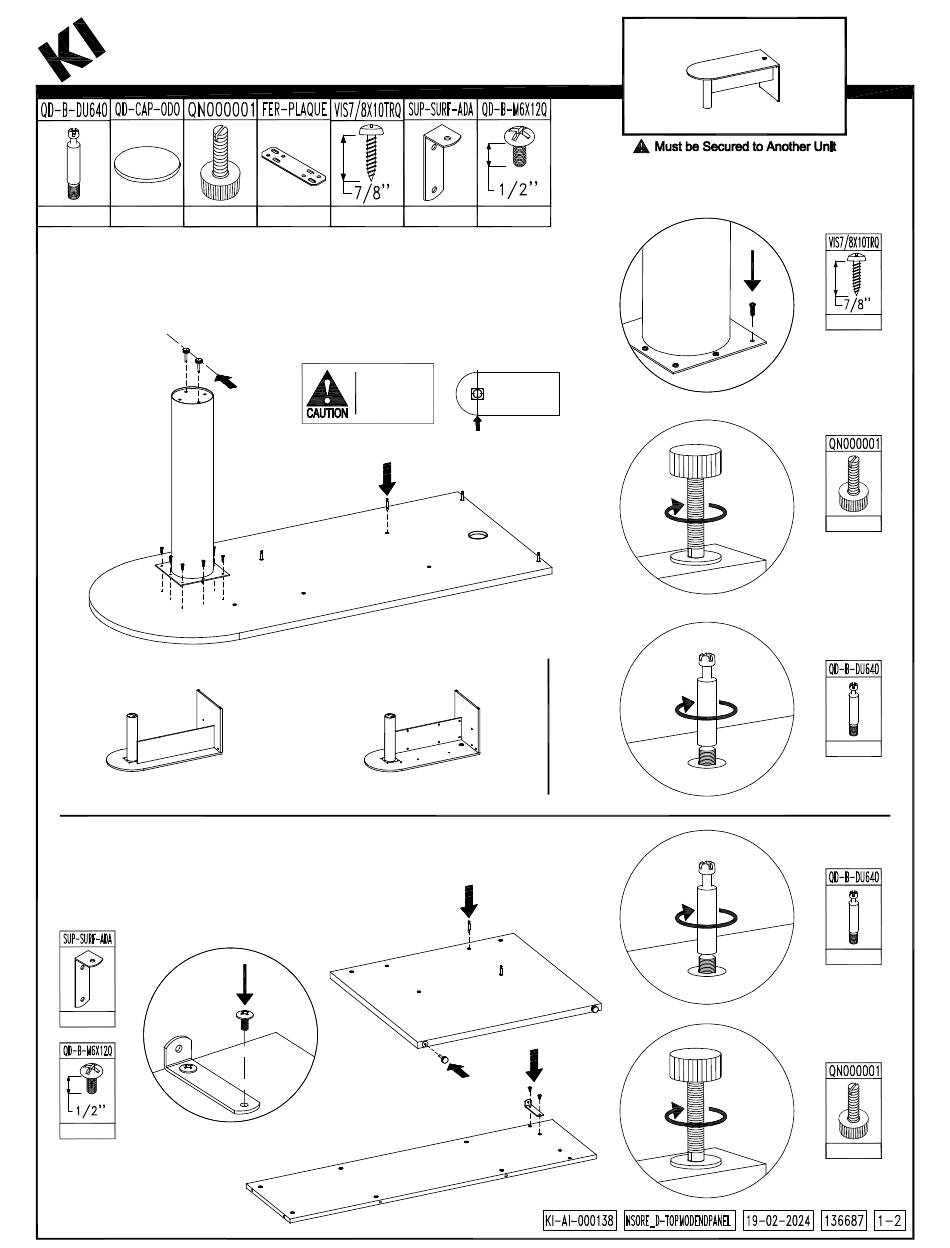

1.
Lay worksurface upside down on soft surface to protect the top. Insert the 4 shoulder
screws into the top (see diagram). Set the metal leg onto the top with glide mounting
holes aligned as on the diagram, then install leg onto the top. Insert the 2 glides
leaving 1/4 inch of adjustment.
2.
Lay end panel and center support upside down on soft surface to protect. Insert the
2 shoulder screws into the end panel (see diagram). Insert the 2 glides leaving 1/4
inch of adjustment. Install angle bracket onto the modesty
panel (see diagram).
2
8
D-Top with Modesty and End Panel
2
16
Alignement
of levelers
Reversible
2 possible modesty
panel positions
Assembly Instructions
Orenda
Casegoods
TM
1
3
AKTDE
8
Supplied
with
metal leg
2
Supplied
with
metal leg
4
2
2
