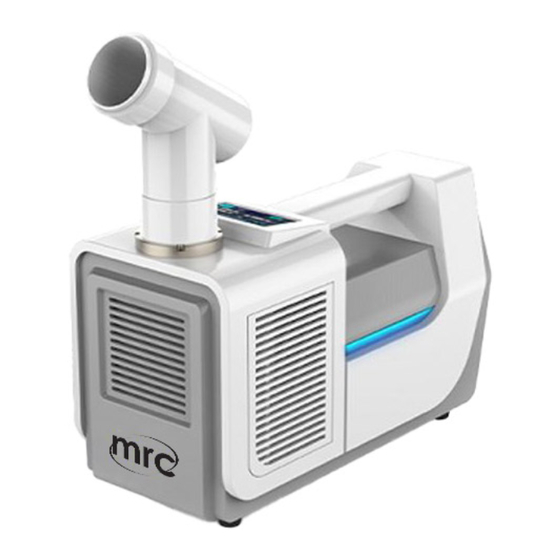

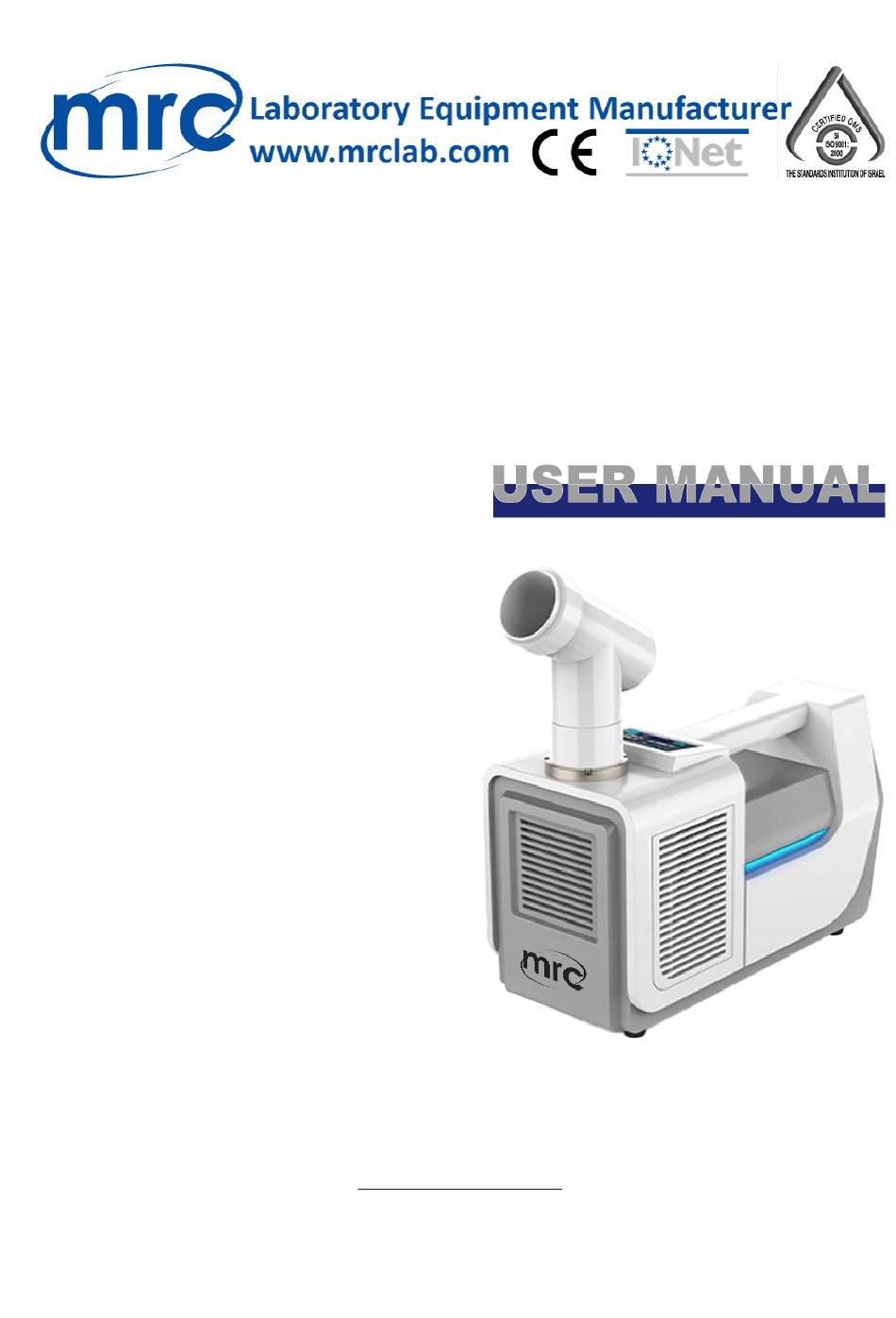

- Page 1 STE-H2O2-P PORTABLE HYDROGEN PEROXIDE SPACE STERILIZER Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 ,3 mrc@mrclab.com MRC. 4.24...
- Page 2 Preface This Portable Hydrogen Peroxide Space Sterilizer is the newest fruit of our research. Using two-fluid atomizing + secondary refining screening technology, the H particle size is only 3μm, which is significantly improved compared to previous air compressing and atomizing technology. The particles can be suspended in the air for a long time to make irregular Brownian motion.
-
Page 3: Table Of Contents
Catalogue Ⅰ.Product overview ----------------------------------------------------------------------------------------------------------3 II. Labeling and precautions -----------------------------------------------------------------------------------------------4 2.1 Labeling ----------------------------------------------------------------------------------------------------------- 4 2.2 Precautions -------------------------------------------------------------------------------------------------------- 4 III.Introduction of structure and function ------------------------------------------------------------------------------- 6 3.1 The structure ------------------------------------------------------------------------------------------------------ 6 3.2 The function -------------------------------------------------------------------------------------------------------7 3.3 Introduction of hydrogen peroxide ---------------------------------------------------------------------------- 8 IV. -
Page 4: Ⅰ.product Overview
Ⅰ.Product overview Product name: Portable Hydrogen Peroxide Space Sterilizer Features and advantages: This equipment mainly adopts hydrogen peroxide Nano mist produced by super dry mist technology to thoroughly disinfect the air and surface of objects in a confined space. The killing rate of air simulate staphylococcus albus and natural sterilization rate is 100%,and the killing rate of simulated Bacillus stearothermophilus spores and Bacillus subtilis spores on object surface is 5LOG or more. -
Page 5: Labeling And Precautions
II. Labeling and precautions 2.1 Labeling 2.2 Precautions Please read the instruction carefully before using the equipment. Please ensure no obstacle within 1.5m around the air outlet of equipment. Please wipe the inside and outside of the machine with a wet and soft cloth more than twice after disinfection, to protect the machine from being corroded in a long-term hydrogen peroxide environment, thus extending its life. - Page 6 circuits, damaging the equipment. Please take protective measures to avoid personal injury when adding hydrogen peroxide. If you touch the hydrogen peroxide carelessly, please handle it right away as follows: A. Skin touching: Take off contaminated clothes, then wash the skin with much running water.
-
Page 7: Iii.introduction Of Structure And Function
not mix different concentrations of hydrogen peroxide or other disinfectants. III.Introduction of structure and function 3.1 The structure The equipment is mainly composed of LCD touching screen, control device, diffusion device, atomizing device, storage device, liquid supply device, etc. See below two pictures of structure. -
Page 8: The Function
Graph 2 (1)Air inlet for mist spraying (2)Touching screen (3)Super dry mist air duct Handle (5)status light (6)lid (7)External interface for liquid supply (8)Power socket 3.2 The function 3.2.1 Production description The machine is equipped with LCD screen and wireless tablet control. The tablet has wireless communication, one for multiple models of same series, online upgrade, automatic reminder, real-time monitoring, voice broadcast, intensity setting, disinfection mode... -
Page 9: Introduction Of Hydrogen Peroxide
3.2.2 Principle of disinfection Using the unique two-fluid atomizing + constant pressure evaporation refining technology, hydrogen peroxide liquid is quickly separated into hydrogen peroxide molecules and water molecule particles through Bernouli effect. The molecules perform irregular Brownian motion, so Hydrogen peroxide particles diffuse into the entire closed disinfection room or space. -
Page 10: The Main Usage And Application Scope
IV. The main usage and application scope 4.1 Usage The equipment is mainly used for terminal disinfection of air and object surface in confined spaces. 4.2 Application scope Hospitals/ Medical institutions: High-risk areas, surgery rooms, ICU, neonatal wards, infection wards, general wards, Air conditioning ventilation ducts, etc. Laboratories: Animal laboratories, microbiology laboratories, mobile laboratories, etc. -
Page 11: V.main Technical Parameters
V.Main technical parameters Name Portable Hydrogen Peroxide Space Sterilizer STE-H2O2-P Type 220～240VAC 50Hz Input Power 400W Working mode Short-time loading and continuous operation Operation mode Regular & Wireless remote control Display screen 4.3 inch LCD touching screen, 8 inch tablet... -
Page 12: Acceptance Checking And Installation
Working ≤90% Humidity Storing ≤95% (Non-condensing) Atmospheric pressure 70kPa～106kPa Service life 8 years Acceptance checking and installation When you receive the goods, firstly check if the package is good and intact. Then open the package, check if the equipment is alright and accessories are complete or not. ... - Page 13 “ ”Monitor the the volume of disinfectant “ ”Disinfection status “ ”Decomposes hydrogen peroxide residues status “ ”Malfunction status Appointment function mode Hour setting for disinfection countdown time Minute setting for disinfection countdown time Appointment time reset Disinfection space setting Plus or minus for disinfection space ”Disinfection space reset Analysis association switch for decomposes hydrogen peroxide residues...
- Page 14 7.1.2 Operation interface of tablet (general and optional) Graph 4 “ ”Showing the status of tablet connect with equipment “ ”Current time showing on system “ ”Real time monitor the hydrogen peroxide disinfectant capacity “ ”Real-time display of disinfection status “...
- Page 15 “ ”Real-time monitor the concentration of hydrogen peroxide (PPM) in air “ ”Real-time monitor the environment humidity “ ”Real-time monitor the environment temperature Appointment time mode Hour setting disinfection countdown time Minute setting for disinfection countdown time Appointment time reset Disinfection space and time setting ”Switch between disinfection space and time setting ”Resets spatial or temporal values...
- Page 16 Purification time setting Plus or minus of appointment hour setting ”Plus or minus of appointment minute setting ”Decomposes hydrogen peroxide time resetting Switch button which connect decomposes hydrogen peroxide mode Switch button between inner tank and outer tank Clean button Three sterilization levels (Only multiple choice for one every time) Start button Stop button...
- Page 17 Admin user module, click to enter the page of secondary user settings System setting button, click to enter the page of secondary system setting Log button, click to enter the secondary log page Second level page- user setting...
- Page 18 Second level page- system setting Second level - Log page...
-
Page 19: Instructions Before Disinfection
7.2 Instructions before disinfection Place the equipment in any open position in the room that needs to be disinfected. Move the living things, clothing and fabrics out of the disinfection space. Including but not limited to the following items: water absorbent materials, liquids, cream, oils and powders, items that are not completely dry, items with a nylon composite surface, and items made of exposed carbon steel. -
Page 20: Instruction After Disinfection
7.4 Instruction after disinfection Please proceed with below steps after disinfection. Due to possible hysteresis of the hydrogen peroxide sensor, a handheld portable hydrogen peroxide detector can be used to check H concentration in disinfected space (Note that it is strictly forbidden to enter the disinfected area without protection). If the concentration is more than 1ppm, then get the room ventilated and enter after the concentration is less than 1 ppm. -
Page 21: Viii.replacing Consumable Items
level) Step 3: Click “ plus or minus to set appointment time or countdown time ” hour (1h every level). Step 4: Click “ plus or minus to set appointment time or countdown time ” minute (5min every level). Step 5: Click setting to set operator and other information. Start Step 6: Click “... -
Page 22: Replacing The Silicone Tube Of The Peristaltic Pump
Please be sure no power connection and the equipment is placed stably before adding hydrogen peroxide liquid. Unscrew and open the cover of hydrogen peroxide disinfectant inlet. Close the cover after finishing,make sure it is tightene. Turn on the power to check if the color of “liquid volume” in the display interface (Graph 3/4) changes from red to green, then the disinfectant is added successfully. -
Page 23: X.malfunctions Analysis And Troubleshooting Methods
ethanol. It is strictly forbidden to use other disinfectant products not specified in this manual, in case the service life and disinfection effect will be affected. X.Malfunctions analysis and troubleshooting methods General prompt alarm: After complete sterilization, analysis and standby which no need special treatment, The system will automatically adjust, Other troubleshooting methods are as follows: Problem... -
Page 24: After-Sale Service
Sensor malfunction Touch screen without 1.Turn it on again or replace the display Display failure response screen. Wireless remote Abnormal connection 1. Disconnect the Wifi and re-connect. operation failure Tablet is broken 2.Change the tablet. XI. After-sales service ,Dear users From the day you purchase our products, our company's high-quality online after-sales service will accompany you, and it will relieve you of all worries about how to use our .products...
