Related Manuals for MRC S2D-300
Summary of Contents for MRC S2D-300

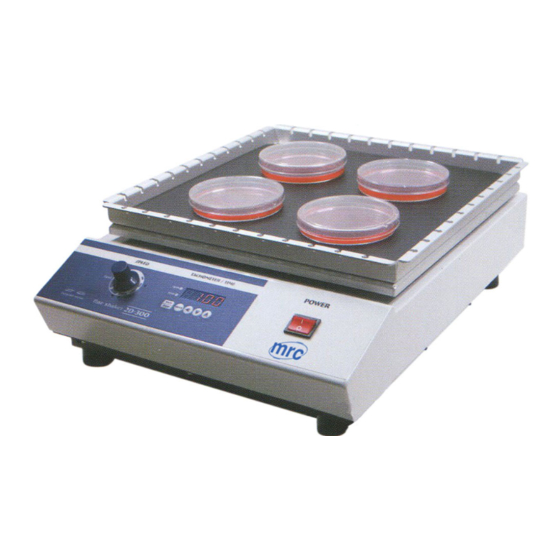

- Page 1 All manuals and user guides at all-guides.com Dual motion shaker S2D-300 S2D-400 Operating Manual Operating Manual 1. PRODUCT DESCRIPTION 2. USER CONSIDERATION 3. USER OPERATION 4. ACCESSORY 5. MAINTENANCE AND CLEANING 6. FAULTY RUNNING 7. WARRANTY...
- Page 2 Optional platform available for flasks LED display (shown actual speed or time) High quality permanent brushless DC motor for gentle and powerful motion Continuous or timed operation S2D-300 (Platform W300mm x D300mm) * Orbital range (14mm) * Speed range (45~400rpm) S2D-400...
-
Page 3: Specification
All manuals and user guides at all-guides.com Specification S2D-300 S2D-400 Model Orbital range 14mm 28mm Speed range 45 ~ 400 rpm Motor BLDC motor Speed Timer 99hour 59 min Temp. Resist Lower than 55˚C Loadable weight 4 kg 6 kg... - Page 4 All manuals and user guides at all-guides.com User consideration Power switch is in the "on" position and operate it after 3 seconds for stable using of product. Unplug the appliance : - If problems occur during the shaking process. - Before you start cleaning the unit. - Never use the appliance if the plug, the cord or the appliance it self is damaged.
-
Page 5: User Operation
All manuals and user guides at all-guides.com User operation This section summarizes operation procedures for Dual Motion Shaker controlling the rotation. Plug the power cord into the wall receptacle. When you turn on the power switch. 0000 RPM/TIMER " " signal is going to be appeared on the screen. - Page 6 All manuals and user guides at all-guides.com User operation This section summarizes operation procedures for Dual Motion Shaker controlling the rotation. For example when you want to do " Timer Setting" for 5 minutes, push RPM/TIMER button repeatedly until the number "5" 0005 ●...
- Page 7 All manuals and user guides at all-guides.com User Operation Accessory 50ml holder/CP50 100ml holder/CP100 250ml holder/CP250 500ml holder/CP500 FT302-50-13 FT302-100-13 FT302-250-8 FT302-500-5 FT402-50-25 FT402-100-25 FT402-250-14 FT402-500-9 2D Silicon Rack-300 2D Silicon Rack-400 PLATE / FT302 PLATE / FT402...
- Page 8 All manuals and user guides at all-guides.com User Operation The method of change for the dual motion 1.Lift the rubber pad out of the shaking plate 2. Loosen 4 bolt on the four corners of the shaking plate. 3. Also, loosen 4 bolts in middle of the BASE PLATE 4.
- Page 9 All manuals and user guides at all-guides.com User Operation The method of the silicon rack combination 1. Loosen 4 bolts on the four corners of the shaking plate. 2. The 4 posts stood on holes on each corner. And put silicon rack down in there. 3.
-
Page 10: Maintenance And Cleaning
All manuals and user guides at all-guides.com Maintenance and Cleaning Always unplug the instrument before you start cleaning it. Never immerse the appliance in water. Never use the instrument if the plug, the cord or the instrument itself is damaged. The equipment is maintenance-free. - Page 11 All manuals and user guides at all-guides.com Faulty running After turning on the power switch, The units does not working. Please, Checking the electronic fuse on the back of main body. - In this case, the electronic fuse is broken. If you see the back of the incubator, the fuse box could be seen.
-
Page 12: Year Warranty
All manuals and user guides at all-guides.com Warranty 1 YEAR WARRANTY Limited Warranty : This equipment has been tested all the functions and parts for proper operation before shipment. Please read this manual carefully. If you have any questions or problems, check with your dealer or write us direct.
