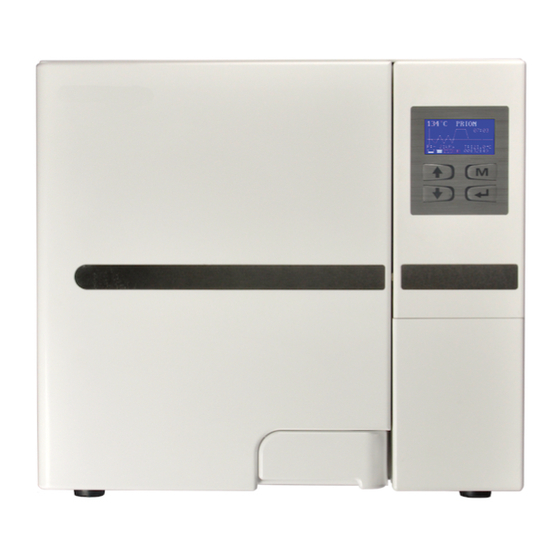

Summary of Contents for MRC STE-F-8

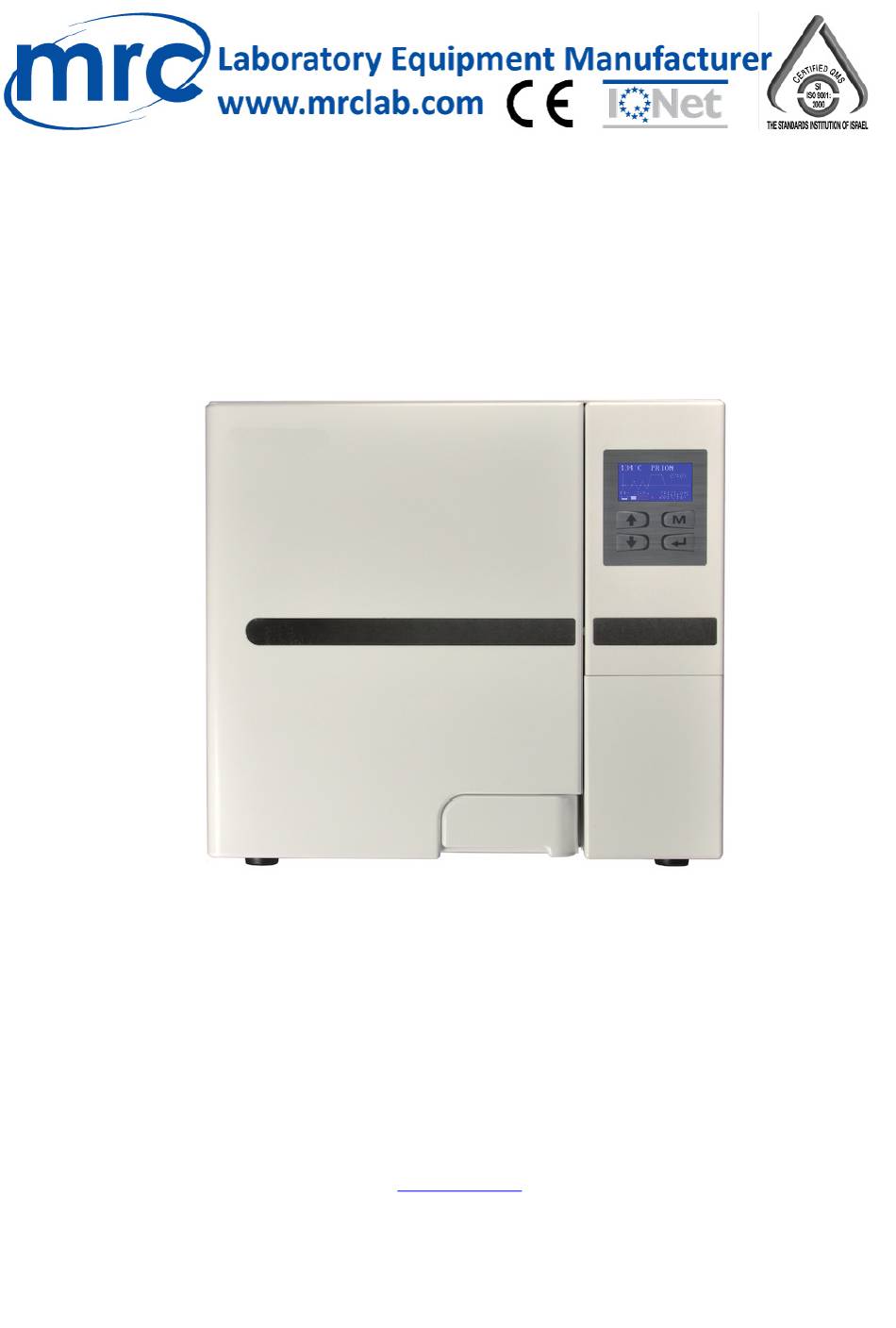

- Page 1 Instructions Manual For Model: STE-F-8 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC. 2.24...
- Page 2 If this picture appears on the screen when power On or E88 appears on the report, please call your dealer or local maintenance service. Your steam sterilizer needs general maintenance. Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 ,3 mrc@mrclab.com...
-
Page 3: Table Of Contents
Content 1. General 4 Scope of manual 4 Intended use 4 General safety instructions 4 Standards and directives 5 Symbols 5 Sterilizer views 2. Description of the sterilizer 6 Control panel 6 Technical specification 6 Packing content 7 General conditions 3. -
Page 4: General
1 General Scope of Manual This manual contains information concerning the installation, operation and maintenance of the steam sterilizers. To ensure proper performance of the sterilizer, the instructions given in this manual should be thoroughly understood and followed. Keep the manual near the sterilizer in an accessible location for future reference. Intended Use The steam sterilizer described in this manual is intended for the sterilization in all medical, dental, beauty, vet and tattoo fields of the following types of instrument loads: solid, porous,... -
Page 5: Symbols
Symbols For safe operation, please pay close attention to the alert symbols below which can be found on the sterilizer and throughout this manual. Important information (Caution) Hot surface Ground connection 2 Description of the sterilizer Sterilizer views Date of manufacture Manufacture number Manufacturer Name Manufacturer Address... -
Page 6: Technical Specification
Door open Door closed Door blocked Time Current internal temperature Up button Down button Enter button Menu button Technical specifications STE-F-8 Model Chamber (mm) Φ170 x 320 Overall dimensions (W*H*D) 420*370*525 Net Weight (kg) Nominal power (VA) 2200 Rated Voltage 230-240V;50 Hz... -
Page 7: Installation
Plug power cord into a properly polarized and grounded receptacle rated. A dedicated circuit only used for the sterilizer is recommended. Never connect the device pin to reductions of any type. Location requirements and dimensions (mm) STE-F-8 Model... -
Page 8: Setup
4 Setup Connect the power cord to an outlet of the appropriate voltage. Turn on the main power switch on the right side. Open the door to remove all of the inner contents for unpacking. After switching on, the machine turns on the LCD and shows the door position, water level, working program, date, time, etc. -
Page 9: Basic Set
Arrange the samples of different materials on different trays or with at least 3cm of space ▪ between them. Clean and dry instruments thoroughly before placing them into tray. ▪ Always insert a sterilization paper or cloth between the tray and sample to avoid direct contact. ▪... - Page 10 and see the information of: *Last error Select “Setup” from the main menu by pressing button. Input the password digit to digit by pressing button to go next. Password: 1111 Parameter Water quality Password Unit Last error Preheat About device 1111 Expiry date Parameter...
-
Page 11: Operation
Expiry date (Optional) To modify the expiration date of the labels, select “Expire date” from the menu by pressing button. Adjust it by pressing Press button to save and back. Parameter Unit Month: Preheat Expiry date Water quality (optional) If your sterilizer is equipped with a water quality sensor and you want to deactivate it, select “Water quality”... -
Page 12: Select The Program
Load Open the door then placed the trays inside the chamber by the tray handle. After the instruments are loaded, you may close the door. Select the program Enter to the main menu by pressing button, Select “Program”. Select the program by pressing then press to confirm program, in the screen will appear the information of... -
Page 13: Test Program
Note: If the cycle is manually interrupted before it reaches the drying phase, the items inside the sterilizer must be considered not sterile. N20 will appear on the screen. (see Error code description). Caution: Depending on the phase of the cycle, steam and water can escape from the sterilization chamber when you open the door. -
Page 14: Data
Data The internal memory will store the information of the last 9999 cycles. USB Flash memory (Optional) A USB drive can be used as a method of storing a report of the cycle. To do so, insert the USB drive into the slot located on the service door of the sterilizer. - Page 15 Sample of a printer report When reading printed data records, refer to the diagram below: = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = Program: WRAPPED Program:Vacuum test...
-
Page 16: Maintenance
Print labels Select “Labels” from the main menu and press button to enter in the menu. Select the cycle number by pressing button. Choose the labels quantity by pressing then press button to print. Press button to exit. Program 00012 Basic Set 00011 QT: 01... -
Page 17: Door Adjustment
Clean door seal and mating surfaces with a damp cloth. Note: Do not use bleaching agents or any abrasive materials or substances in the chamber. Failure to comply may cause damage to the chamber and/or other components. Caution: To prevent burns, let the unit cool before cleaning gaskets and touch the surface. Door adjustment Under normal circumstances, the chamber door does not require adjustments. -
Page 18: Troubleshooting
7 Troubleshooting Code Description Proposed solution Steam generator temperature sensor Power off & run a new cycle error. Contact your supplier if error persists. Power off & run a new cycle Inner temperature sensor error. Contact your supplier if error persists. Temperature sensor of the chamber Carefully ensure that the chamber wall is heated and wall error. -
Page 19: Transportation And Storage
8 Transportation and storage Switch off the sterilizer before transportation or storage. Pull out the plug. Let the machine cool down. Drain the distilled water tank and the used water tank. Conditions for transport and storage Temperature: -20°C ~ +50°C Relative humidity: ≤... -
Page 20: Appendix 1
Appendix 1 Water properties / Characteristics Description Feed water Condensate Evaporate residue ≤ 10mg/ I ≤ 1.0mg/kg Silicium oxide sio2 ≤ 1mg/ I ≤ 1.0mg/kg Iron ≤ 0.2mg/ I ≤ 0.1mg/kg Cadmiun ≤ 0.005mg/ I ≤ 0.05mg/kg Lead ≤ 0.05mg/ I ≤... -
Page 21: Diagrams Of The Sterilization Programs
Appendix 2 Diagrams of the sterilization programs Programs Type (STE-F-8) Quick 9-14 Unwrapped solid material 1.20 0.60 26-35 Unwrapped solid material 1.20 0.60 WRAPPED Single-wrapped solid or 42-53 1.00 0.50 hollow material Unwrapped porous material 0.50 0.15 Single-wrapped porous 0.35 0.10...
