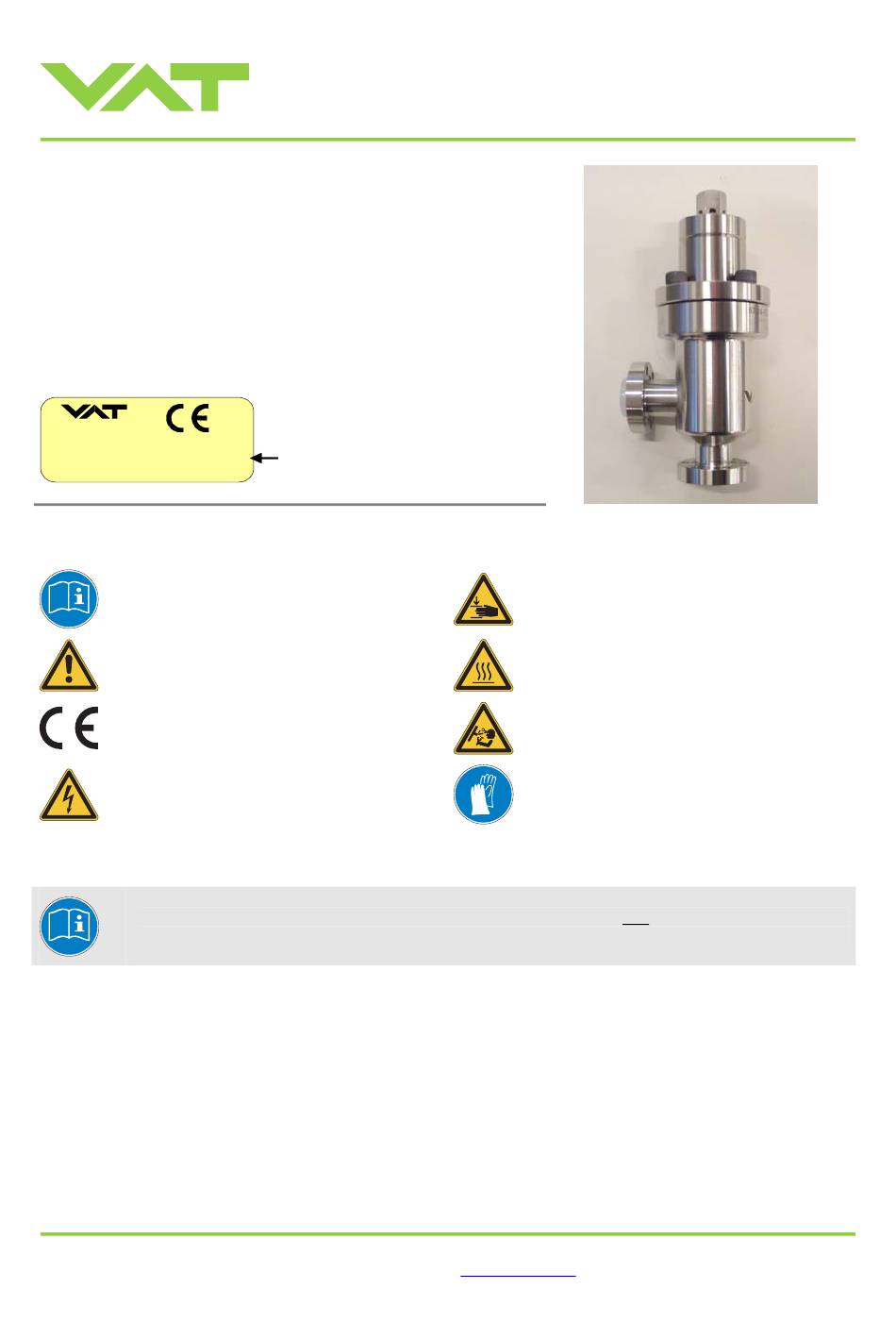

VAT 57.1 Series Installation, Operating, & Maintenance Instructions

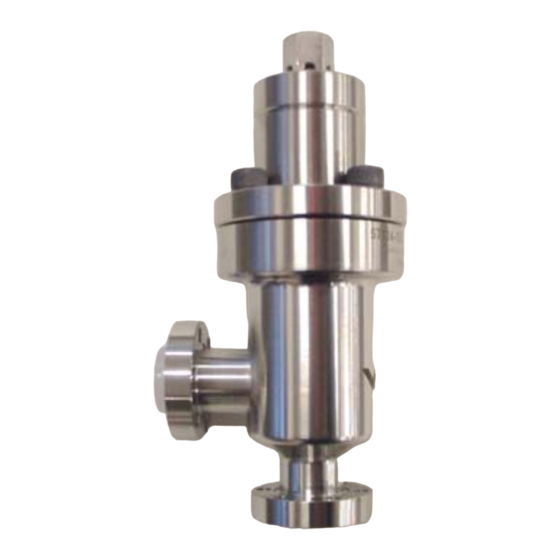

All-metal angle valve
Hide thumbs
Also See for 57.1 Series:
Table of Contents
Advertisement
Quick Links
All-Metal Angle Valve
Manual actuator
This manual is valid for the valve ordering number(s):
57124- . E02/05/07/08
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
571 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com
Installation, Operating & Maintenance Instructions
Series 57.1, DN 16 (I.D. ⅝")
. .
Fabrication number
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
www.vatvalve.com
216817ED
1/13
2005-10-04
