VAT 570 Series Installation, Operating, & Maintenance Instructions
All-metal angle valve with manual actuator
Hide thumbs
Also See for 570 Series:
Table of Contents
Advertisement
Quick Links
Installation, Operating &
Maintenance Instructions
All-metal angle valve
with manual actuator
Series 570
DN 63 - 160 mm (I. D. 2
- 6")
1/2
This manual is valid for the following product ordering numbers:
57036-.E02/05/07/08
57040-.E02/05/07/08
57044-.E02/05/07/08

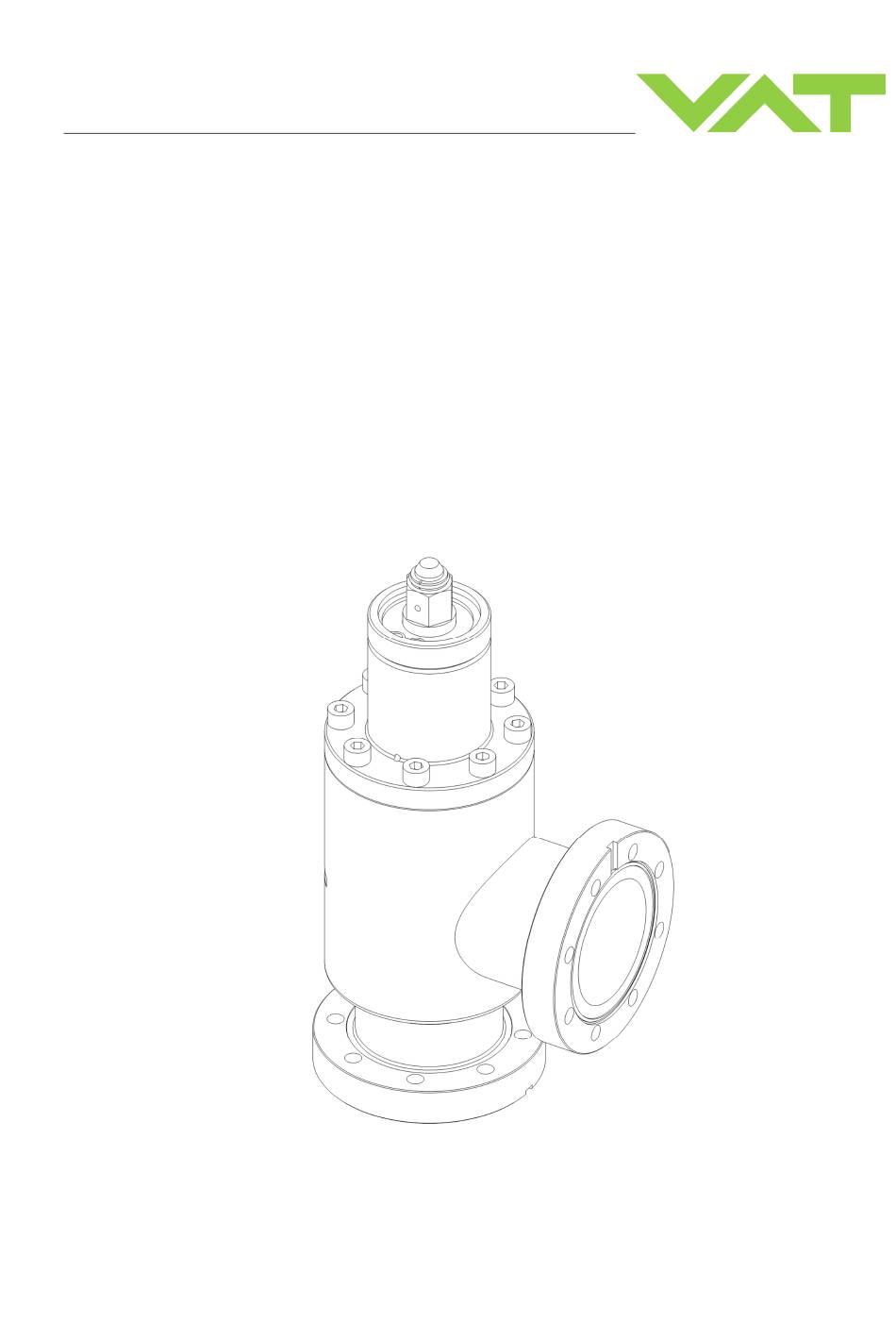

Sample picture
231262EF
Edition 14.02.2019
Advertisement
Table of Contents
Related Manuals for VAT 570 Series
Summary of Contents for VAT 570 Series
- Page 1 Installation, Operating & Maintenance Instructions All-metal angle valve with manual actuator Series 570 DN 63 - 160 mm (I. D. 2 - 6") This manual is valid for the following product ordering numbers: 57036-.E02/05/07/08 57040-.E02/05/07/08 57044-.E02/05/07/08 Sample picture 231262EF Edition 14.02.2019...
- Page 2 VAT. Offenders are liable to pay damages. The original VAT firmware and updated state of the art versions of the VAT firmware are intended for use with VAT products. The VAT firmware contains a limited, time unlimited user license.
-
Page 3: Table Of Contents
Series 570 Contents Description of product ................ 5 Identification of product ..................5 Use of product ..................... 5 Related documents ..................... 5 Important information ..................5 Technical data ..................... 5 Safety ....................6 Compulsory reading material ................6 Danger levels ...................... 6 Personnel qualifications .................. - Page 4 Series 570 Disposal ..................... 27 Spare parts ..................28 12.1 Valve Spare part list ..................28 12.2 Position indicators 80°C (single + double) in various versions ......29 Appendix ................... 30 4/31 Edition 14.02.2019 231262EF...
-
Page 5: Description Of Product
A - ..Order number Use of product Use product for clean and dry vacuum applications only. Other applications are only allowed with the written permission of VAT. Suitable for XHV applications. Related documents • Product data sheet • Dimensional drawing... -
Page 6: Safety
SAFETY Series 570 Safety Compulsory reading material Read this chapter prior to performing any work with or on the product. It contains important information that is significant for your own personal safety. This chapter must have been read and understood by all persons who perform any kind of work with or on the product during any stage of its serviceable life. -
Page 7: Personnel Qualifications
Series 570 SAFETY Personnel qualifications WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. Safety labels Label Part No. Location on valve On protective covers of T-9001-156 flanges 231262EF... -
Page 8: Design And Function
DESIGN AND FUNCTION Series 570 Design and Function Design Actuator Valve body Connecting flange Sealing surface 8/31 Edition 14.02.2019 231262EF... -
Page 9: Function
Series 570 DESIGN AND FUNCTION Function Opening of closed valve • Turn hexagon head counter clockwise to it’s stop. The valve is completely open when the stop is reached. Closing of open valve • Valves with hexagon head may be operated by a torque wrench (nominal torque see table below) or by using a hand wheel with sliding clutch Valves with cylindrical head have to be operated by a hand wheel with sliding clutch and free wheel option (see spare parts list). -
Page 10: Installation
• Make sure that the supplied products are in accordance with your order. • Inspect the quality of the supplied products visually. If it does not meet your requirements, please contact VAT immediately. • Store the original packaging material. It may be useful if products must be returned to VAT. -
Page 11: Installation Into The System
Series 570 INSTALLATION Installation into the system The valve must not support other components and has to be protected from forces of the system (e.g. by bellows sections). WARNING Movable parts Human body parts may get jammed and severely injured. Do not connect or supply electrical power before the product is completely mounted in the system. -
Page 12: Preparation For Installation
INSTALLATION Series 570 4.2.1 Preparation for installation WARNING Danger of injury in case of insufficient skills Inappropriate handling may cause serious injury or property damage. Make sure that the valve does not topple or fall down while removing the protective covers from the flanges. NOTICE Sensitive product Valve parts may get damaged. -
Page 13: Mounting To The System
Series 570 INSTALLATION 4.2.2 Mounting to the system The valve must not support other components and has to be protected from forces of the system (e.g. by bellows sections). 4.2.2.1 Leak detection port The exact position of the leak detection port is referenced on the dimensional drawing Do not block or cover the leak detection port, as shown on the sample picture Symbol for... -
Page 14: Electrical Connection
INSTALLATION Series 570 Electrical connection DANGER Electric shock Parts being under voltage will result in serious injury or death. Do not touch parts being under voltage. NOTICE Wrong sequence of connections Valve mechanism may get damaged when electrical power is being is connected. -
Page 15: Position Indicators
Series 570 INSTALLATION 4.3.1 Position indicators Connect position indicator according to product data sheet. 4.3.1.1 Wiring diagrams: Position indicators for max. 80°C contact rating ≤ 50 V AC / DC; ≤ 1.2 A Standard position indicator Double position indicator with make contact switches with make contact switches - two each (option) -
Page 16: Operation
OPERATION Series 570 Operation WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. WARNING Movable parts Human body parts may get jammed and severely injured. Do not operate before product is installed completely into the vacuum system. Normal operation Opening of closed valve •... -
Page 17: Operation Under Increased Temperature
Series 570 OPERATION Operation under increased temperature Maximum allowed temperature see product data sheet. NOTICE Inconstant temperatures Performance of the valve may deteriorate. – Actuate valve only after the bake-out temperature has been stable for two hours. – If valve must be actuated during bake-out, make sure that the heating or cooling rate does not exceed 60 °C per hour in the temperature range from 200°C to 450 °C Bake-out... -
Page 18: Trouble Shooting
TROUBLE SHOOTING Series 570 Trouble shooting Failure Check Action Leak at gate Condition of gate Please contact VAT www.vatvalve.com seal Leak at body Condition of bonnet seal and Please contact VAT www.vatvalve.com sealing surface Condition of Please contact VAT www.vatvalve.com bellows If you need any further information, please contact one of our service centers. -
Page 19: Maintenance
• When the valve has reached the specified lifetime; see product data sheet, we recommend to have it serviced by VAT. Please contact your nearest VAT service center to get recommendations and an offer. You will find the addresses on our website www.vatvalve.com. -
Page 20: Re-Greasing Of Actuator Shaft
MAINTENANCE Series 570 Re-greasing of actuator shaft: Remove the circlip (26/4) and washer (26/3) Remove the locking ring (26/5) and half shelfs of bearing (26/2) Remove the actuator shaft (26/1) from the spindle (62) Remove the Belleville springs (26/7) and washer (26/6) Clean actuator shaft (26/1, only thread) and internal thread of actuator, e.g. -
Page 21: Drawing
Series 570 MAINTENANCE Drawing 231262EF Edition 14.02.2019 21/31... -
Page 22: Repairs
Repairs may only be carried out by the VAT service staff. In exceptional cases, the customer is allowed to carry out the repairs, but only with the prior consent of VAT. Please contact one of our service centers. You will find the addresses on our website www.vatvalve.com. -
Page 23: Dismounting And Storage
Series 570 DISMOUNTING AND STORAGE Dismounting and Storage WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. WARNING Hazardous components Human body parts may get jammed and severely injured. Before dismounting the product: –... -
Page 24: Storage
DISMOUNTING AND STORAGE Series 570 Storage NOTICE Wrong storage Inappropriate temperatures and humidity may cause damage to the product. Valve must be stored at: – relative humidity between 10% and 70% – temperature between +10 °C and +50 °C – non-condensing environment NOTICE Inappropriate packaging Product may get damaged if inappropriate packaging material is used. -
Page 25: Packaging And Transport
• If products are radioactively contaminated, the VAT form «Contamination and Radiation Report» must be filled out. Please contact VAT in advance. • If products are sent to VAT in contaminated condition, VAT will carry out the decontamination procedure at the customer's expense. -
Page 26: Packaging
Make sure that the valve is in open position secured. Mount protective covers on flanges; see chapter «4.2.1 Preparation for installation». Pack valve appropriately, by using the original packaging material. VAT disclaims any liability for damages resulting from inappropriate packaging. 10.2... -
Page 27: Disposal
Series DISPOSAL Disposal Observe the local regulations for disposal WARNING Harmful substances Environmental pollution. Discard products and parts according to the local regulations. WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the disposal CAUTION Risk of damage Indicates a hazardous situation which, if not avoided, may result in minor or moderate... -
Page 28: Spare Parts
«1.1 Identification of product». This is to ensure that the appropriate spare parts are supplied. • VAT makes a difference between spare parts that may be replaced by the customer and those that need to be replaced by the VAT service staff. -
Page 29: Position Indicators 80°C (Single + Double) In Various Versions
Series 570 SPARE PARTS 12.2 Position indicators 80°C (single + double) in various versions Qty. Item Description Version Part No. single double BS Mini position indicator make contact switches 69250-R1 double throw switches 75430-R1 make contact radiation resistant 90471-R1 double throw radiation resistant 91701-R1 42/1 Position indicator... -
Page 30: Appendix
APPENDIX Series 570 Appendix 30/31 Edition 14.02.2019 231262EF... - Page 31 Series 570 APPENDIX This Page Intentionally Left Blank 231262EF Edition 14.02.2019 31/31...
