VAT 570 Series Installation, Operating, & Maintenance Instructions

All-metal angle valve single acting pneumatic actuator with closing spring

Advertisement

Quick Links

Installation, Operating &
Maintenance Instructions
All-metal angle valve
single acting pneumatic actuator with closing spring
Series 570
DN 100 - 160 mm (I. D. 4" - 6")
This manual is valid for the following product ordering numbers:
57040-.E11/E21/E31/E41
57044-.E11/E21/E31/E41

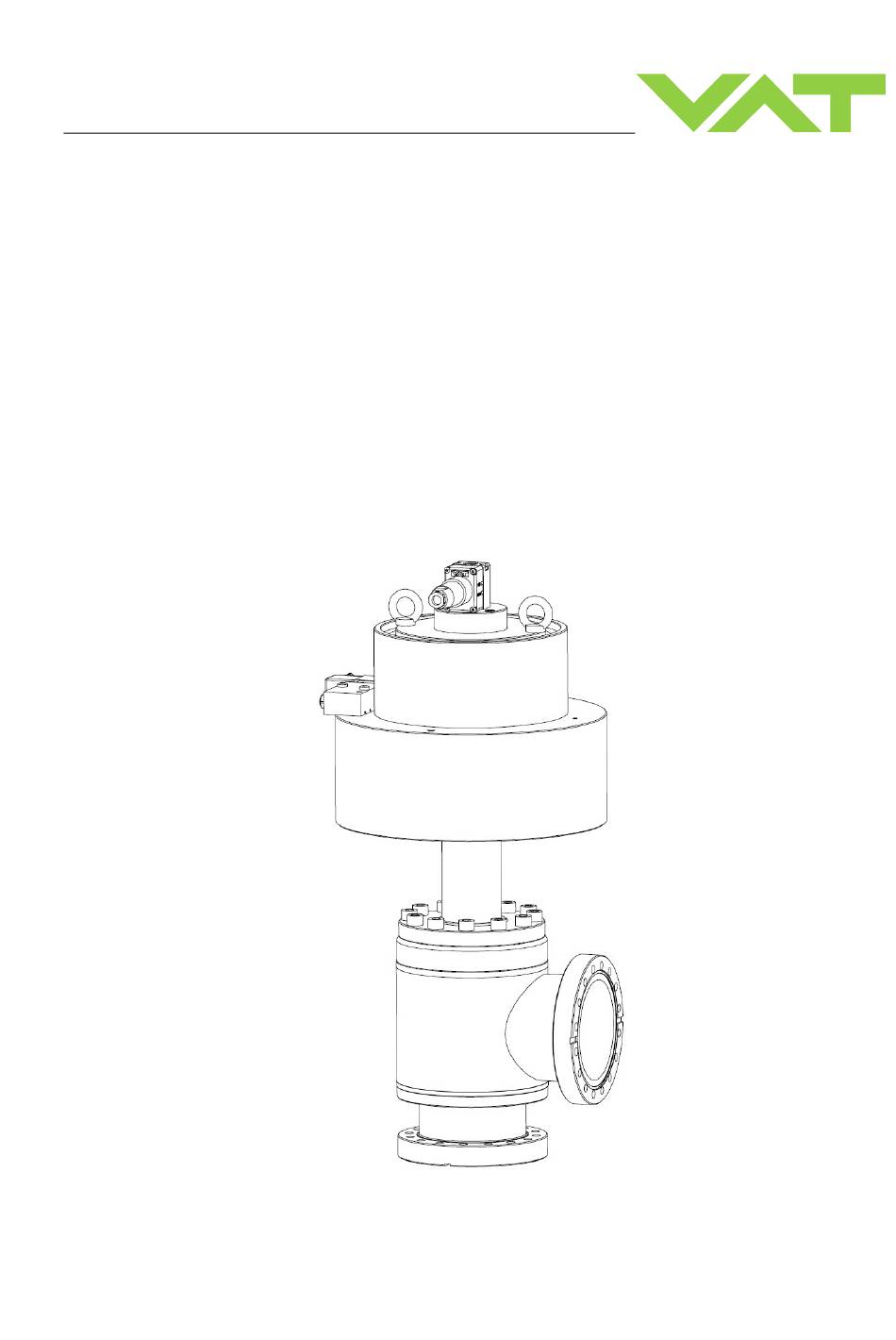

Sample picture
215086EG.DOCX
Edition 14.02.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 570 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for VAT 570 Series

  • Page 1 Installation, Operating & Maintenance Instructions All-metal angle valve single acting pneumatic actuator with closing spring Series 570 DN 100 - 160 mm (I. D. 4" - 6") This manual is valid for the following product ordering numbers: 57040-.E11/E21/E31/E41 57044-.E11/E21/E31/E41 Sample picture 215086EG.DOCX Edition 14.02.2019...
  • Page 2 VAT. Offenders are liable to pay damages. The original VAT firmware and updated state of the art versions of the VAT firmware are intended for use with VAT products. The VAT firmware contains a limited, time unlimited user license.
  • Page 3: Table Of Contents

    Series 570 Contents Description of product ................ 5 Identification of product ..................5 Use of product ..................... 5 Related documents ..................... 5 Important information ..................5 Technical data ..................... 5 Safety ....................6 Compulsory reading material ................6 Danger levels ...................... 6 Personnel qualifications ..................
  • Page 4 Series 570 10.2 Transport ......................30 Disposal ..................... 31 Spare parts ..................32 12.1 Valve Spare part list ..................32 12.2 Solenoid kit (5/2-way standard) .................33 12.3 Position indicators 80°C (single + double) in various versions with adapter ..34 Appendix ................... 35 4/36 Edition 14.02.2019 215086EG...
  • Page 5: Description Of Product

    A - ..Order number Use of product Use product for clean and dry vacuum applications only. Other applications are only allowed with the written permission of VAT. Suitable for XHV applications. Related documents • Product data sheet • Dimensional drawing...
  • Page 6: Safety

    SAFETY Series 570 Safety Compulsory reading material Read this chapter prior to performing any work with or on the product. It contains important information that is significant for your own personal safety. This chapter must have been read and understood by all persons who perform any kind of work with or on the product during any stage of its serviceable life.
  • Page 7: Personnel Qualifications

    Series 570 SAFETY Personnel qualifications WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. Safety labels Label Part No. Location on valve On protective covers of T-9001-156 flanges 215086EG...
  • Page 8: Design And Function

    DESIGN AND FUNCTION Series 570 Design and Function Design Sample picture Actuator Valve body Connecting flange Sealing surface Solenoid Position indicator 8/36 Edition 14.02.2019 215086EG...
  • Page 9: Function

    Series 570 DESIGN AND FUNCTION Function Opening of closed valve without solenoid: • air supply to connection plate with solenoid: • supply specified control voltage to the coil Closing of open valve without solenoid: • air release through connection plate with solenoid: •...
  • Page 10: Installation

    • Make sure that the supplied products are in accordance with your order. • Inspect the quality of the supplied products visually. If it does not meet your requirements, please contact VAT immediately. • Store the original packaging material. It may be useful if products must be returned to VAT.
  • Page 11 Series 570 INSTALLATION NOTICE Wrong lifting Valve may crash and get damaged. Use only the eyebolts shown in the dimensional drawing and in on sample picture to lift the valve. Using any other components (e. g. position indicators, solenoids) to lift the valve is strictly forbidden. NOTICE Sensitive product Valve parts may get damaged.
  • Page 12: Installation Into The System

    INSTALLATION Series 570 Installation into the system The valve must not support other components and has to be protected from forces of the system (e.g. by bellows sections). WARNING Movable parts Human body parts may get jammed and severely injured. Do not connect or supply electrical power and compressed air before the product is completely mounted in the system.
  • Page 13: Preparation For Installation

    Series 570 INSTALLATION 4.2.1 Preparation for installation WARNING Danger of injury in case of insufficient skills Inappropriate handling may cause serious injury or property damage. Make sure that the valve does not topple or fall down while removing the protective covers from the flanges. NOTICE Sensitive product Valve parts may get damaged.
  • Page 14: Mounting To The System

    INSTALLATION Series 570 4.2.2 Mounting to the system The valve must not support other components and has to be protected from forces of the system (e.g. by bellows sections). 4.2.2.1 Leak detection port The exact position of the leak detection port is referenced on the dimensional drawing Do not block or cover the leak detection port, as shown on the sample picture Symbol for...
  • Page 15: Compressed Air Connection

    Series 570 INSTALLATION Compressed air connection WARNING Valve in open or closed position Risk of injury when compressed air is connected to the valve. Connect compressed air only when: – valve is installed in the vacuum system – moving parts cannot be touched NOTICE Wrong sequence of connections Valve mechanism may get damaged when electrical power is being...
  • Page 16: Electrical Connection

    INSTALLATION Series 570 Electrical connection DANGER Electric shock Parts being under voltage will result in serious injury or death. Do not touch parts being under voltage. NOTICE Wrong sequence of connections Valve mechanism may get damaged when electrical power is being is connected.
  • Page 17: Position Indicators

    Series 570 INSTALLATION 4.4.2 Position indicators Wiring diagrams: Position indicators for max. 80°C  contact rating ≤ 50 V AC / DC; ≤ 1.2 A Standard position indicator Double position indicator with make contact switches with make contact switches - two each (option) Lo = position indicator «open»...
  • Page 18 INSTALLATION Series 570 Position indicators for max. 200°C and 300°C contact rating ≤ 50 V AC / DC; ≤ 1 A Single position indicator (option) Double position indicator (option) Lo = position indicator «open» Lo = position indicator «open» Lg = position indicator «closed» Lg = position indicator «closed»...
  • Page 19: Operation

    Series 570 OPERATION Operation WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. WARNING Movable parts Human body parts may get jammed and severely injured. Do not operate before product is installed completely into the vacuum system. Normal operation Opening of closed valve without solenoid:...
  • Page 20: Operation Under Increased Temperature

    OPERATION Series 570 Operation under increased temperature Maximum allowed temperature see product data sheet. NOTICE Inconstant temperatures Performance of the valve may deteriorate. – Actuate valve only after the bake-out temperature has been stable for two hours. – If valve must be actuated during bake-out, make sure that the heating or cooling rate does not exceed 30 °C per hour in the temperature range from 200°C to 450 °C Bake-out...
  • Page 21: Behavior In Case Of Compressed Air Pressure Drop

    Series 570 OPERATION Behavior in case of compressed air pressure drop Valve closed: valve closed Valve open: valve closes Behavior in case of power failure Valve closes if solenoid is current less Emergency operation at power failure Solenoid is provided with a slotted screw to operate the valve in case of a power failure (with compressed air available) Standard solenoid To close the valve:...
  • Page 22: Trouble Shooting

    Slotted screw of solenoid in «5.5 Behavior in case of Check slotted screw! proper power failure» position? Leak at gate Condition of Please contact VAT www.vatvalve.com gate seal Operating Adjust operating «4.3 Compressed air pressure pressure connection» Leak at body...
  • Page 23: Maintenance

    • When the valve has reached the specified lifetime; see product data sheet, we recommend to have it serviced by VAT. Please contact your nearest VAT service center to get recommendations and an offer. You will find the addresses on our website www.vatvalve.com.
  • Page 24: Preventive Maintenance

    MAINTENANCE Series 570 Preventive Maintenance If there is a small leak please try to clean the sealing surface and the seal ring with a lint free towel and some alcohol. If this doesn’t help you can increase the sealing force by increasing the closing torque. The maximum torque is specified in the table under normal operation.
  • Page 25: Drawing

    Series 570 MAINTENANCE Drawing 215086EG Edition 14.02.2019 25/36...
  • Page 26: Repairs

    Repairs may only be carried out by the VAT service staff. In exceptional cases, the customer is allowed to carry out the repairs, but only with the prior consent of VAT. Please contact one of our service centers. You will find the addresses on our website www.vatvalve.com.
  • Page 27: Dismounting And Storage

    Series 570 DISMOUNTING AND STORAGE Dismounting and Storage WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the described work. WARNING Hazardous components Human body parts may get jammed and severely injured. Before dismounting the product: –...
  • Page 28: Storage

    DISMOUNTING AND STORAGE Series 570 Storage NOTICE Wrong storage Inappropriate temperatures and humidity may cause damage to the product. Valve must be stored at: – relative humidity between 10% and 70% – temperature between +10 °C and +50 °C – non-condensing environment NOTICE Inappropriate packaging Product may get damaged if inappropriate packaging material is used.
  • Page 29: Packaging And Transport

    • If products are radioactively contaminated, the VAT form «Contamination and Radiation Report» must be filled out. Please contact VAT in advance. • If products are sent to VAT in contaminated condition, VAT will carry out the decontamination procedure at the customer's expense.
  • Page 30: Packaging

    Make sure that the valve is in open position secured. Mount protective covers on flanges; see chapter «4.2.1 Preparation for installation». Pack valve appropriately, by using the original packaging material. VAT disclaims any liability for damages resulting from inappropriate packaging. 10.2...
  • Page 31: Disposal

    Series DISPOSAL Disposal Observe the local regulations for disposal WARNING Harmful substances Environmental pollution. Discard products and parts according to the local regulations. WARNING Unqualified personnel Inappropriate handling may cause serious injury or property damage. Only qualified personnel are allowed to carry out the disposal. CAUTION Risk of damage Indicates a hazardous situation which, if not avoided, may result in minor or moderate...
  • Page 32: Spare Parts

    «1.1 Identification of product». This is to ensure that the appropriate spare parts are supplied. • VAT makes a difference between spare parts that may be replaced by the customer and those that need to be replaced by the VAT service staff.
  • Page 33: Solenoid Kit (5/2-Way Standard)

    Series 570 SPARE PARTS 12.2 Solenoid kit (5/2-way standard) 43/6 43/2 43/3 43/4 43/1 43/5 Item Description Qty. Part No. Solenoid kit 80993-R1 43/1 Solenoid N-7501-502 43/2 Socket N-8501-300 43/3 Sound absorber N-7705-001 43/4 Coil** N-7510-2** 43/5 O-ring N-7100-016 43/6 Screw N-6024-562 **) Specify voltage (e.g.
  • Page 34: Position Indicators 80°C (Single + Double) In Various Versions With Adapter

    SPARE PARTS Series 570 12.3 Position indicators 80°C (single + double) in various versions with adapter Qty. Item Description Version Part No. single double Adapter complete 72228-R1 83923-R1 41/6 Spring ring N-6162-404 41/7 Screw N-6016-503 BS Mini position indicator make contact switches 76664-R1 double throw switches 85399-R1...
  • Page 35: Appendix

    Series 570 APPENDIX Appendix 215086EG Edition 14.02.2019 35/36...
  • Page 36 APPENDIX Series 570 This Page Intentionally Left Blank 36/36 Edition 14.02.2019 215086EG...
