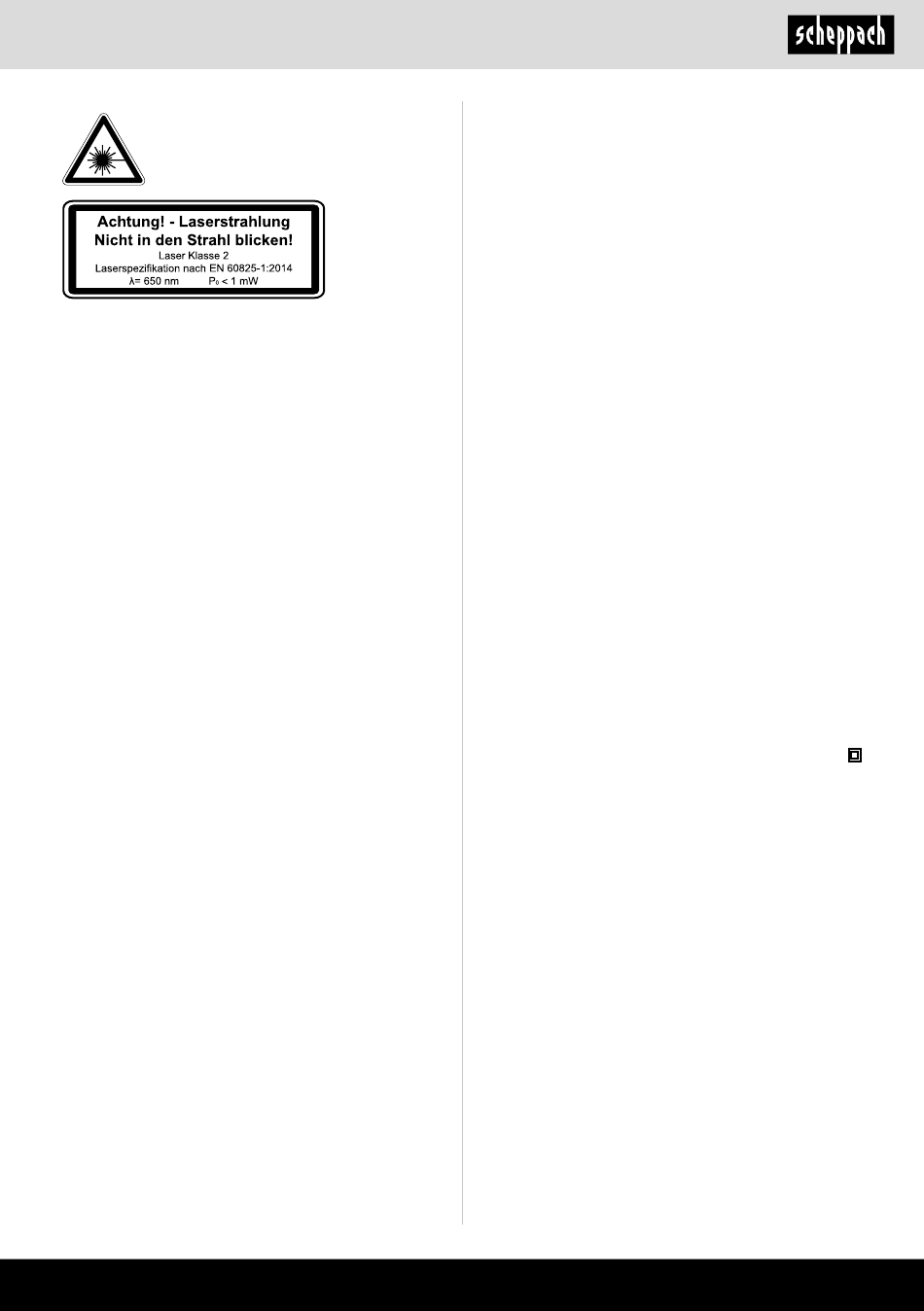

Attention: Laser beam
Do not look into the beam
Laser class 2
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with unpro-
tected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Residual risks
The power tool is state-of-the-art and has been
built according to the recognised technical safety
regulations. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "safety in-
structions" and the "Proper use" are observed along
with the whole of the operating instructions.
• Do not overload the machine: excessive pressure
when sawing will quickly damage the saw blade,
which results in reduced output of the machine in
the processing and in cut precision.
• Always use clamps when cutting plastic material:
the parts to be sawn must always be fixed between
the clamps.
• Avoid accidental start-ups of the machine: the start
button may not be pressed when inserting the plug
in a socket.
• Use the tool that is recommended in this manual.
This is how to ensure that your machine provides
optimum performance.
• Keep your hands away from the working area when
the machine is in operation.
• Before performing setting or maintenance work, re-
lease the start button and pull out the power plug.
Warning!
This power tool generates an electromagnetic field dur-
ing operation. This field can impair active or passive
medical implants under certain circumstances. In or-
der to prevent the risk of serious or deadly injuries, we
recommend that persons with medical implants consult
with their physician and the manufacturer of the medi-
cal implant prior to operating the power tool.

6. Technical data

AC motor ........................................ 220 – 240 V~ 50 Hz
Nominal power S1 ........................................1400 Watts
Idle speed n0 ..................................................4500 rpm
Carbide saw blade ..................... ø 185 x ø 30 x 1.4 mm
Number of teeth ......................................................... 24
Maximum tooth width of the saw blade ............. 2,4 mm
Pivot range .......................................... -45 ° / 0° / +45 °
Mitre cut ........................................... 0° to 45° to the left
Saw width at 90° ....................................... 240 x 60 mm
Saw width at 45° ....................................... 165 x 60 mm
Protection class .................................................... II /
Weight ..................................................... approx. 8.8 kg
Laser class ................................................................... 2
Laser wavelength ............................................... 650 nm
Power of laser .................................................... < 1 mW
Subject to technical changes!
The workpiece must have a minimum height of 3
mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise
The noise levels have been determined in accordance
with EN 62841.
Sound pressure level L
Uncertainty K
Sound power level L
Uncertainty K
www.scheppach.com
..................................... 102 dB
pA
........................................................ 3 dB
pA
......................................... 115 dB
WA
........................................................ 3 dB
WA
