1.4. Infusion setting
1.4.1. Setting with flow rate only
1. Select the flow rate with
2. Open the roller clamp. Check there is no free flow or air remaining
inside the infusion line.
3. Connect set to IV Infusion site according to good clinical practices.
4. Press to start infusion.
1.4.2. Setting with Volume / Time / Rate
1. Press to reach Volume / Time / Rate setting, then
Drug name (optional) 
Infused volume (total I. Vol.) 
2. Select the volume to infuse with
next item with .
Caution : the volume set must be the closest possible to the actual
volume of the container. All added or removed volumes must be taken
into account, including the volumes of fluids contained in the set and
lost during priming which must be removed from the volume to infuse
(~ 25 ml).
Note : the volume to infuse can be set at zero. The infusion therefore
automatically stops when drops are no longer detected, thus enabling
to fully empty the container.
3. Select infusion duration with
automatically calculated. Then confirm and shift to next item with
4. Select the flow rate with
item with . Infusion duration is automatically calculated and
readjusted according to displayed flow rate.
5. Check the infused volume. Erase it if desired with
6. Open the roller clamp. Check there is no free flow or air remaining
inside the infusion line.
7. Connect set to IV Infusion site according to good clinical practices.
8. Press to start infusion.
Note: when using secondary mode, this setting is stored as primary mode.
1310-4_nu_module_mvp_st_eng_140128.doc
125
ml/h
.
Volume to infuse 
1000ml
Infusion duration 
8h00
Glucose
125ml/h
0ml
flow rate 
, then confirm and shift to
. Infusion rate is
, then confirm and shift to next

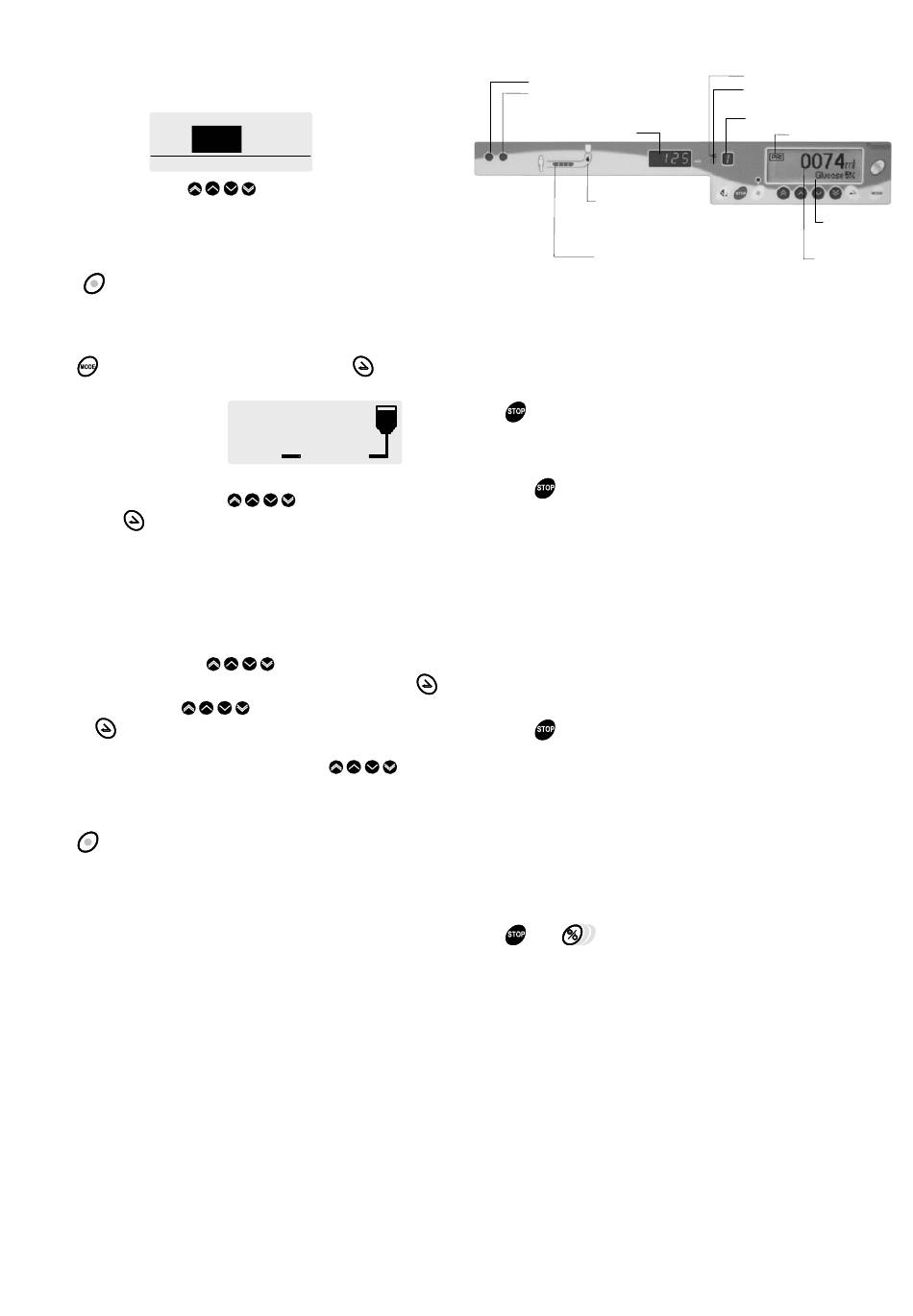

1.5. Information during infusion
Alarm status (red)
Prealarm status (orange)
(*) In alternance with infused volume: total volume (Total IV) or partial
volume (Partial IV). Total volume is displayed when the same drug has
been infused and the same infusion mode has been used. Partial volume
is displayed when different drugs have been infused or when different
modes have been used.
. 1.6. Hold of infusion
Press . An audible alarm triggers after 2 minutes.
1.7. Change of container
1. Press
2. Close roller clamp.
3. Disconnect set from the old container.
4. Connect set to new container according to good clinical practices.
5. Check fluid level in drip chamber (around half of its capacity)
Prime the line if some air remains inside.
6. Program new infusion parameters : flow rate, volume, ...
7. Open roller clamp.
8. Start infusion.
. 1.8. Change of set
1. Press
2. Close roller clamp.
.
3. Disconnect set from container.
4. Disconnect set from IV device according to usual clinical practices.
5. Open the door and remove set from pump.
6. Select and prepare new set as indicated above.
7. Program and start infusion as indicated above.
1.9. Turning off the Module MVP
Press , then
Flow rate (ml/h)
Drop indicator
(speed related to flow rate
if drop sensor connected)
In-progress flow indicator
to hold infusion.
to hold infusion.
for more than 2 seconds.
Mains power operation /
Battery power operation
Module position
Infusion mode type
Drug name
(optional) (*)
Volume
- 3 -
